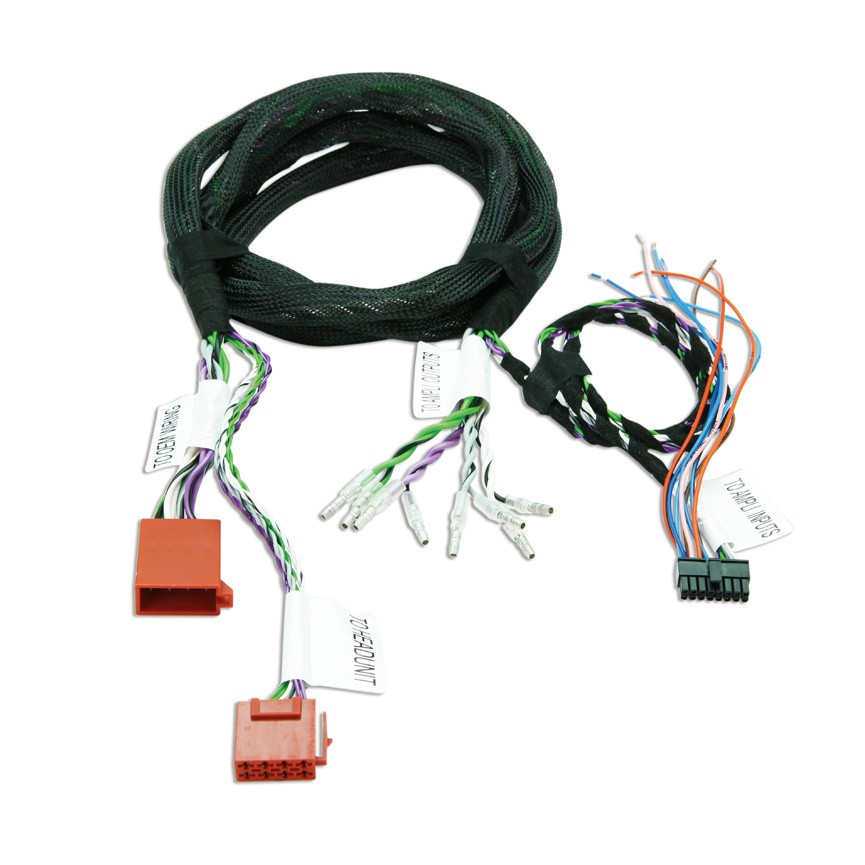

Audison AP 260P&P I/O

Audison AP 260P&P I/O

The Prima extension cable with Plug & Play connection allows complete freedom in the placement of Audison Prima bit amplifiers. Two extension typologies are available. Either an input only to send the audio signal coming from the head unit to the Audison Prima amplifiers, or an input / output to send the output signal of the AP amplifiers to the factory audio system. For this, the IN / OUT extension cables need to be installed along with the AP speaker output cables. By using the input/output extension, the installer can choose which configuration to accept. Thanks to the AP extension cables, each channel of the AP bit amplifier is sent to any speaker in the car, so the installer is able to perform the desired configuration. For example, standard front (2-channel TW + WF), multi-amplified front (2-channel TW + 2-channel), multi-amplified front with 4 bridged channels (130 W @ 4 ohm) for woofers (2-channel TW + 4-channel bridge WF) and all others possible combinations.

Main features of AP 260P&P I/O

• Enables the extension of the wiring from the car radio to the Audison Prima amplifier.
• Variant input / output for sending the output signal of Audison Prima amplifiers to the factory audio system.
• Can be purchased in three variants: 160 cm, 260 cm and 560 cm.
• Length: 260 cm.

How to connect Audison AP 260P&P I/O?

1. First, choose a suitable amplifier (Audison AP 4.9 Bit , AP 5.9 Bit , AP 8.9 Bit , etc.).
2. Connect the Audison T-Harness cable to the connectors of the factory car stereo.
3. Choose a suitable extension cable from the radio to the amplifier (Audison AP 160P&P I/O , AP 260P&P I/O , AP 560P&P I/O ).
4. For easier connection to amplifier outputs, you can choose Audison AP SPK OUT 4.9 , AP SPK OUT 5.9 , or AP SPK OUT 8.9 cabling.
