Audison AP TH HON01 for connecting the amplifier to Honda cars

Be the first to rate the product
wiring for Plug & Play connection of the Audison amplifier to the factory car radio of Honda cars
More about the product
23,90 EUR
Catalog number: AP T-H HON01
Guarantee 2 roky
In stock (3 pcs)
We will help you with your purchase
Audison AP TH HON01 for connecting the amplifier to Honda cars
  • Audison AP TH HON01 for connecting the amplifier to Honda cars
  • Audison AP TH HON01 for connecting the amplifier to Honda cars

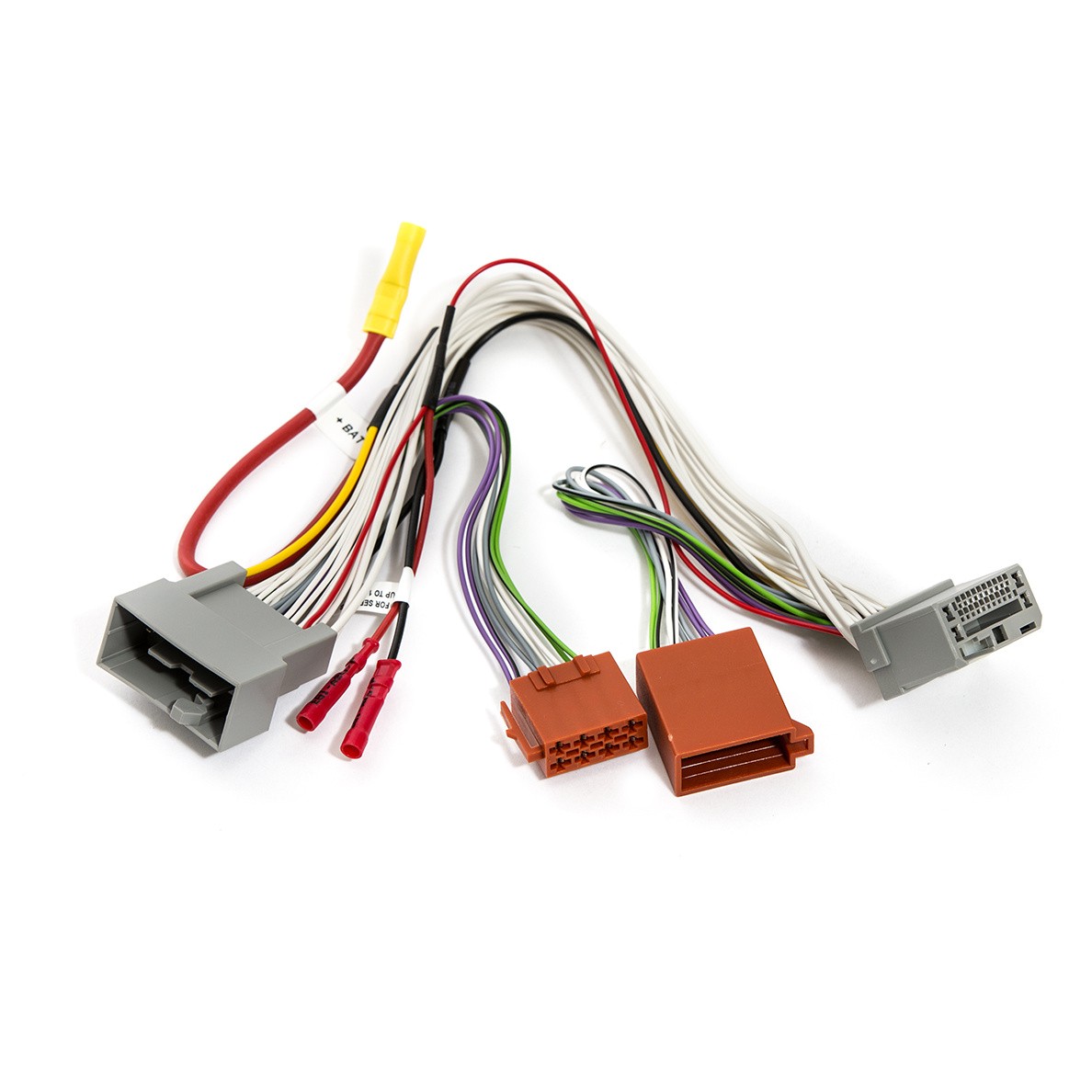

T-Harness Audison AP TH HON01 cable harness for connecting an Audison amplifier

The T-Harness "DCC" is a Plug & Play solution for Honda vehicles to integrate the Audison Prima amplifier with the factory car radio. Power is taken from the main unit thanks to DCC without the need to install new wiring. DCC (Direct Cockpit Current) can be used in combination with the AP bit amplifiers function to control the absorption peaks of the amplifier and protect the car's power system.
  • Designed specifically for Honda vehicles for maximum integration of the new audio system.
  • It allows you to connect an amplifier with a DSP processor to the factory head unit without interfering with the original wiring.
  • Option to keep the factory speakers or replace them with aftermarket speakers.
  • Significant improvement in sound and performance thanks to Audison amplifier with DSP processor.
  • Connection to AP extension cable via ISO connectors.
  • The possibility of powering the amplifier via DCC without the need to stretch new cabling.
  • Enables turning on the amplifier after turning the ignition key.
  • Plug & Play installation without cutting, soldering or other modifications to the factory wiring.
  • You can check the compatible cars in the manual, which can be downloaded from the manufacturer's website.

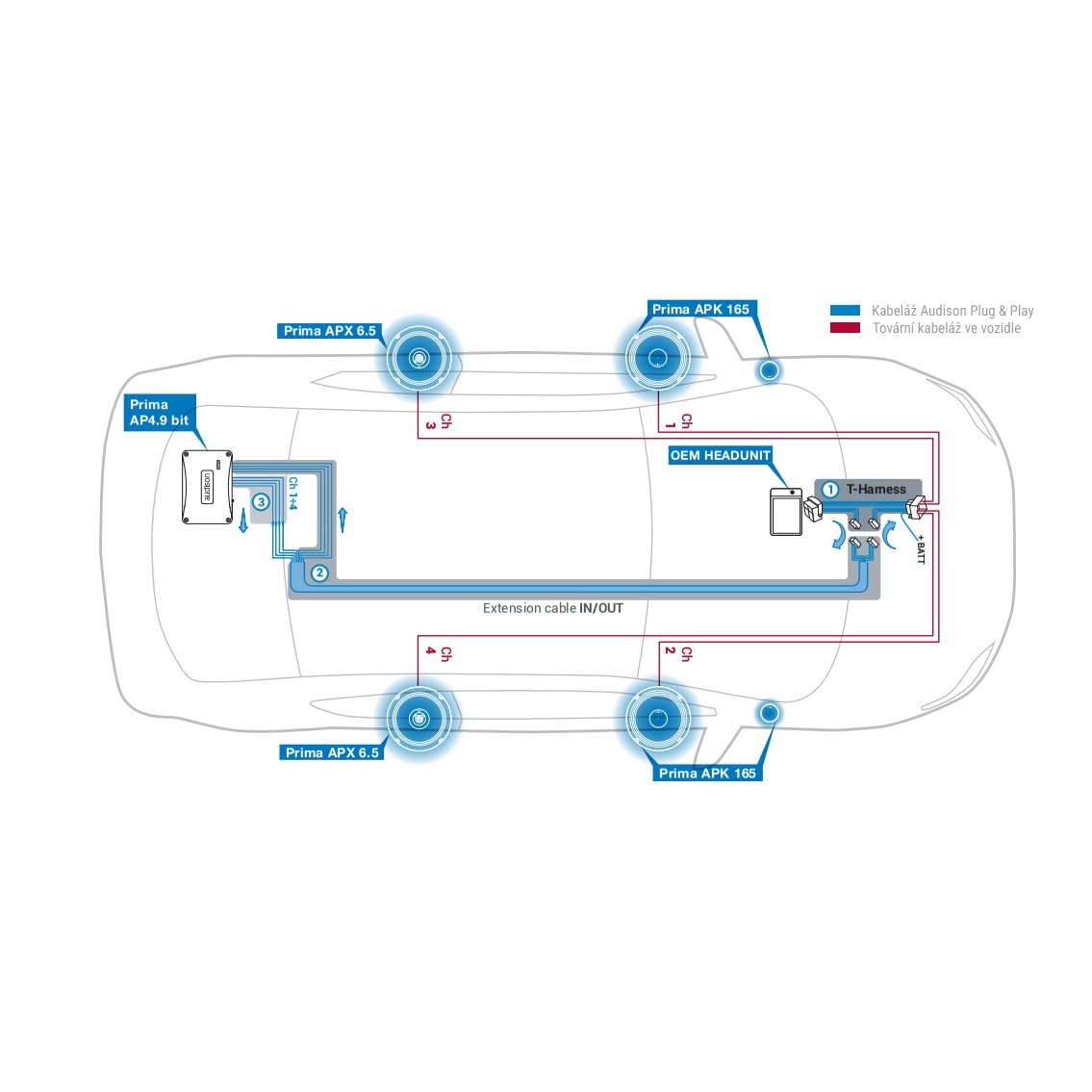

How to connect Audison AP TH HON01?

  1. First, choose a suitable amplifier (Audison AP 4.9 Bit , AP 5.9 Bit , AP 8.9 Bit , etc.).
  2. Connect the AP TH HON01 harness to the factory radio connectors.
  3. Choose a suitable extension cable from the radio to the amplifier (Audison AP 160P&P I/O , AP 260P&P I/O , AP 560P&P I/O ).
  4. For easier connection to amplifier outputs, you can choose Audison AP SPK OUT 4.9 , AP SPK OUT 5.9 , or AP SPK OUT 8.9 cabling).
Catalog numberAP T-H HON01
BrandAudison
LinksOfficial web presentation (English)
