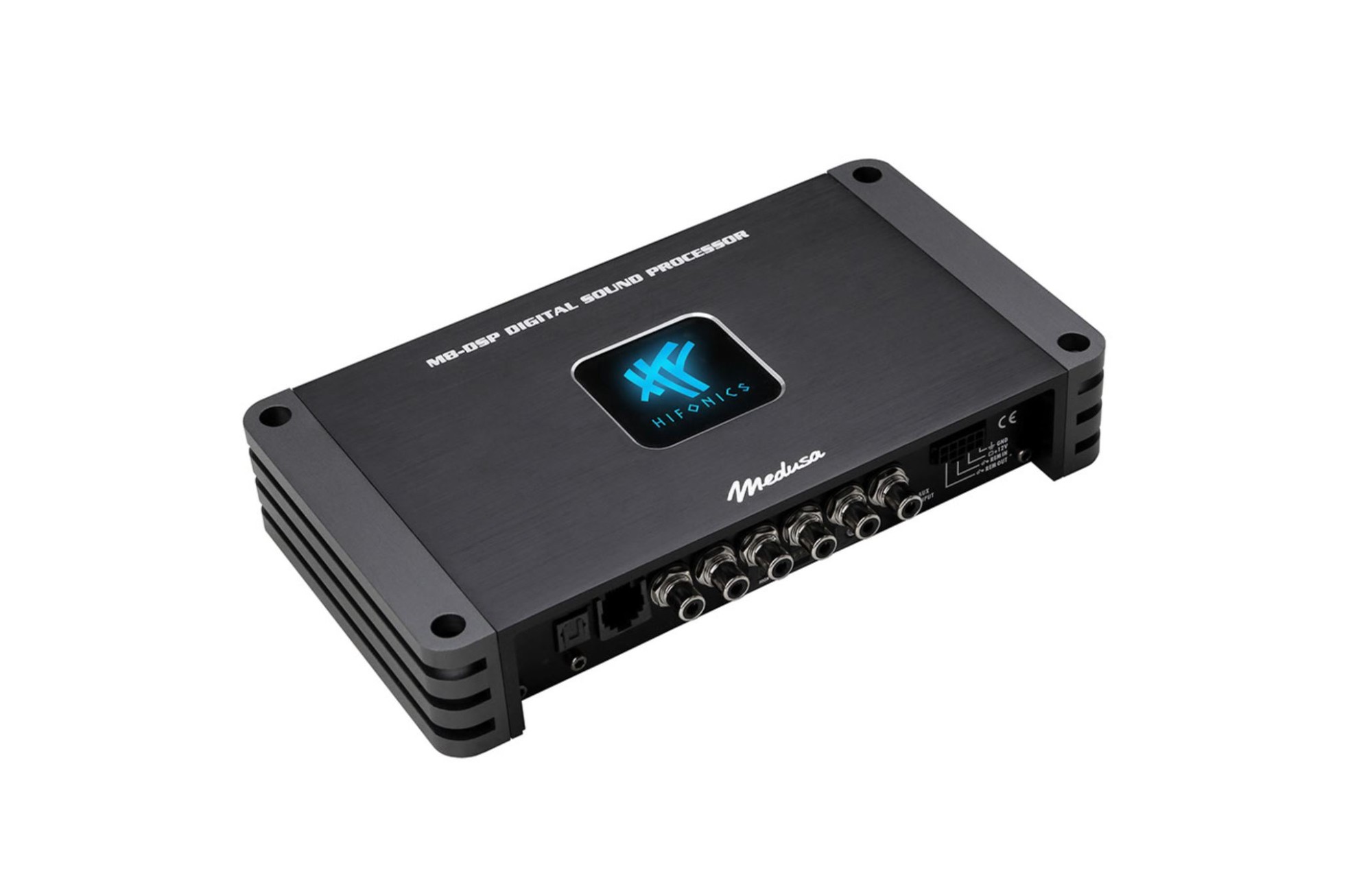

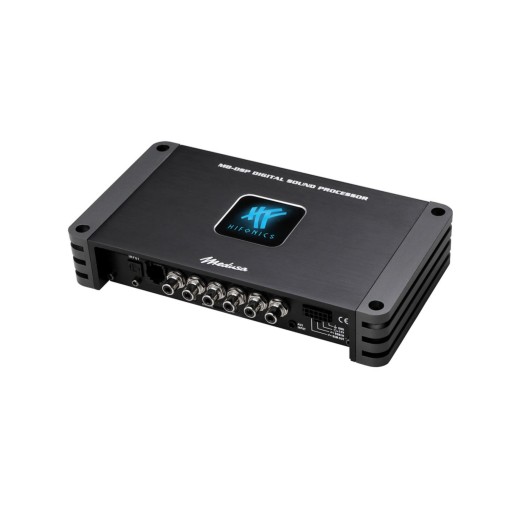

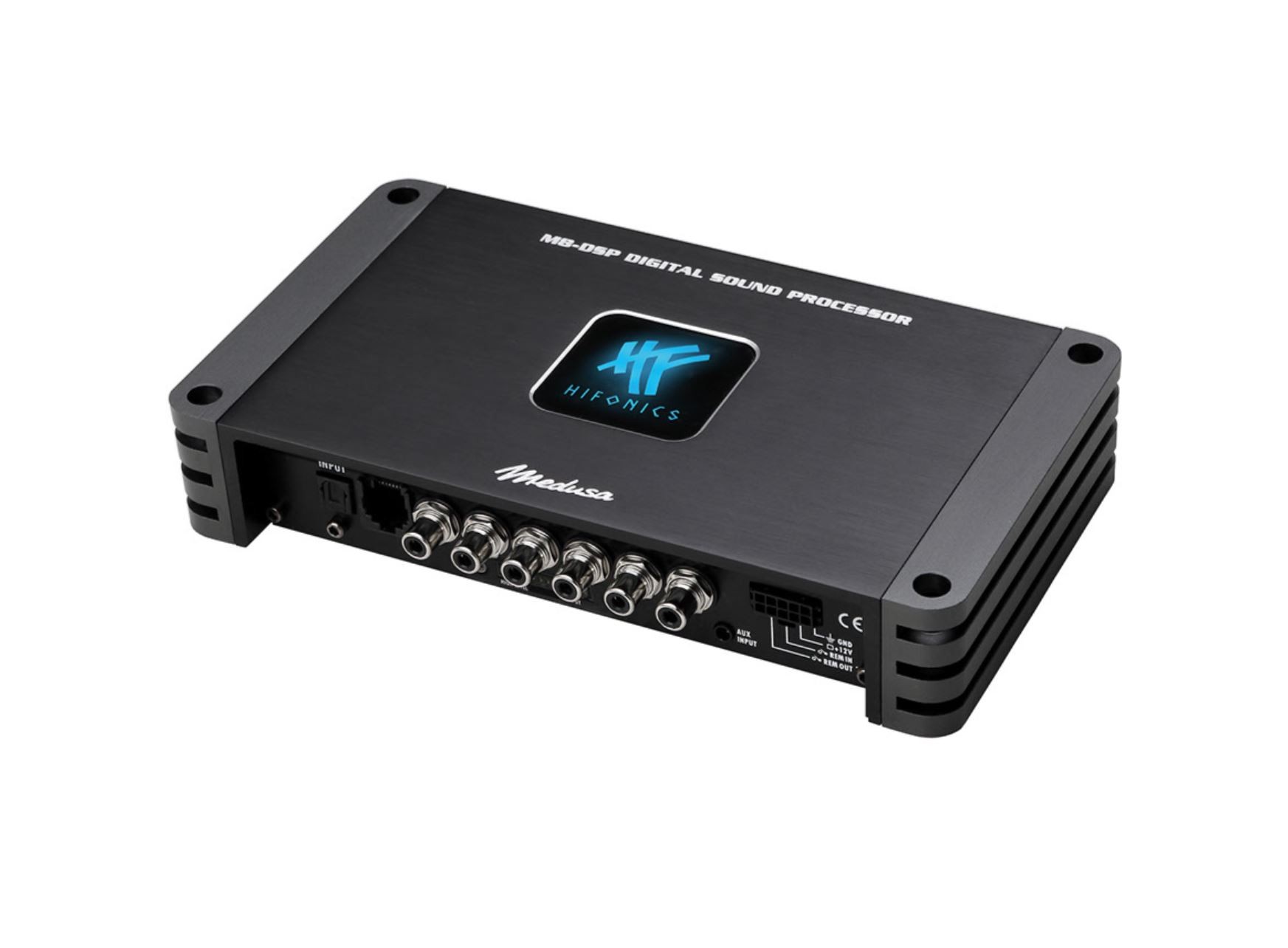

DSP processor Hifonics M8-DSP-E

Hifonics M8-DSP-E

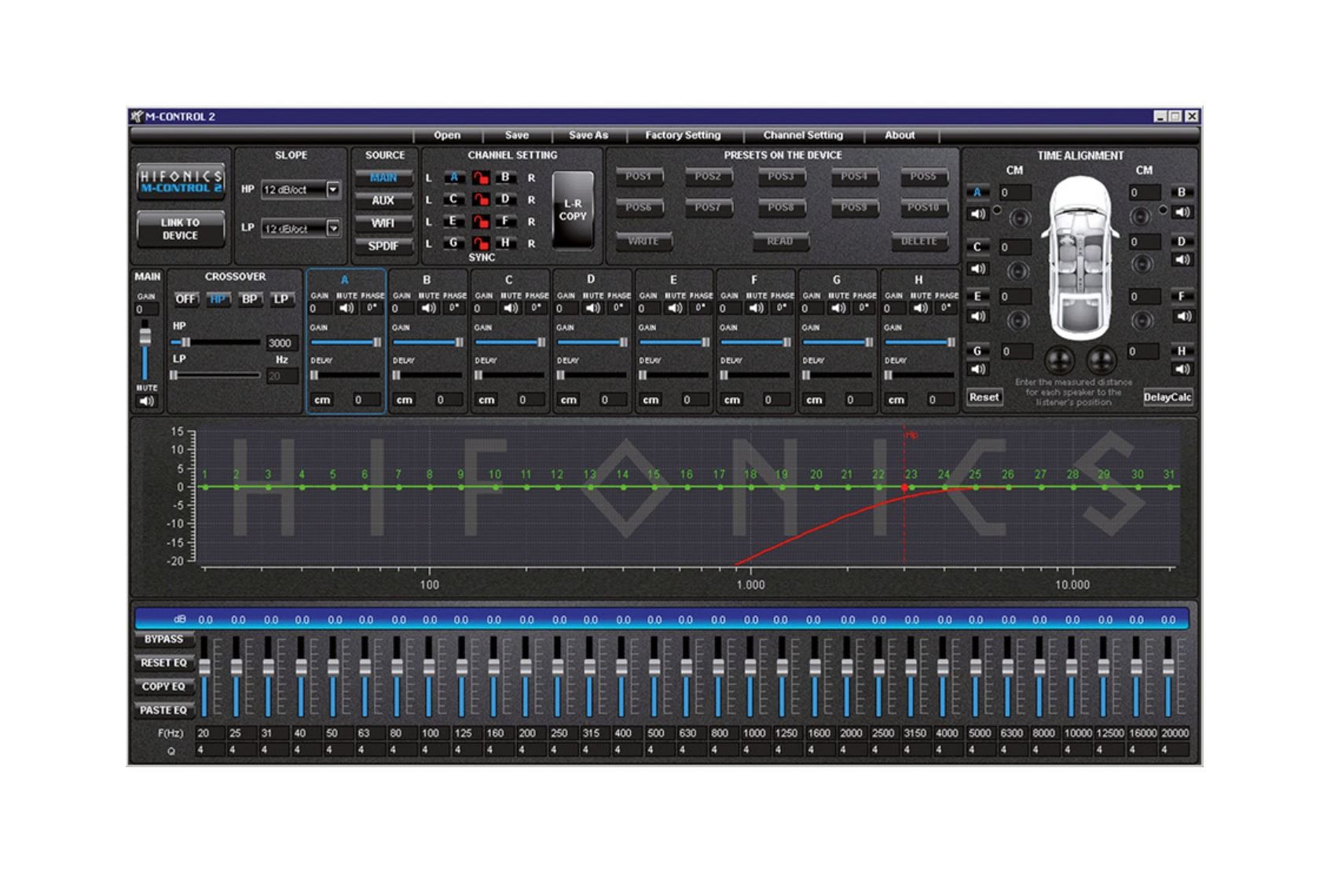

The 8-channel MEDUSA M8-DSP-E processor enables optimal setting of existing or retrofitted speakers with incredibly good accuracy and sound quality. Adjustable crossovers with a steepness of up to 48 dB ensure precise separation efficiency and time delay then an ideal front layout. The processor can be run with up to 6 RCA inputs or, if the inputs require it, via high levels. The graphical user interface of the M-CONTROL 2 software makes operation and programming intuitive.

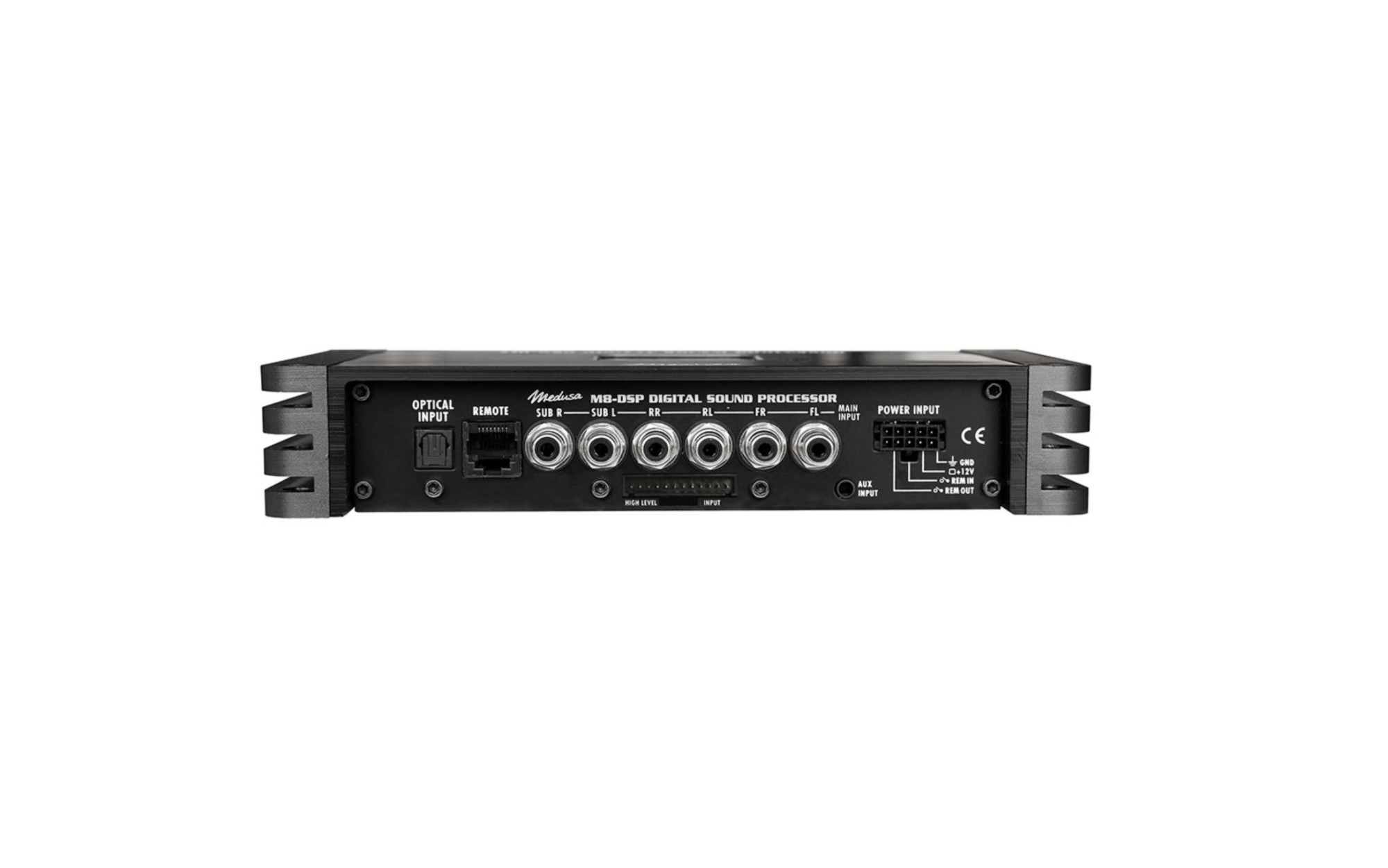

• 6-channel high-level inputs
• 6-channel RCA inputs
• 1x optical input
• 1x AUX-IN step

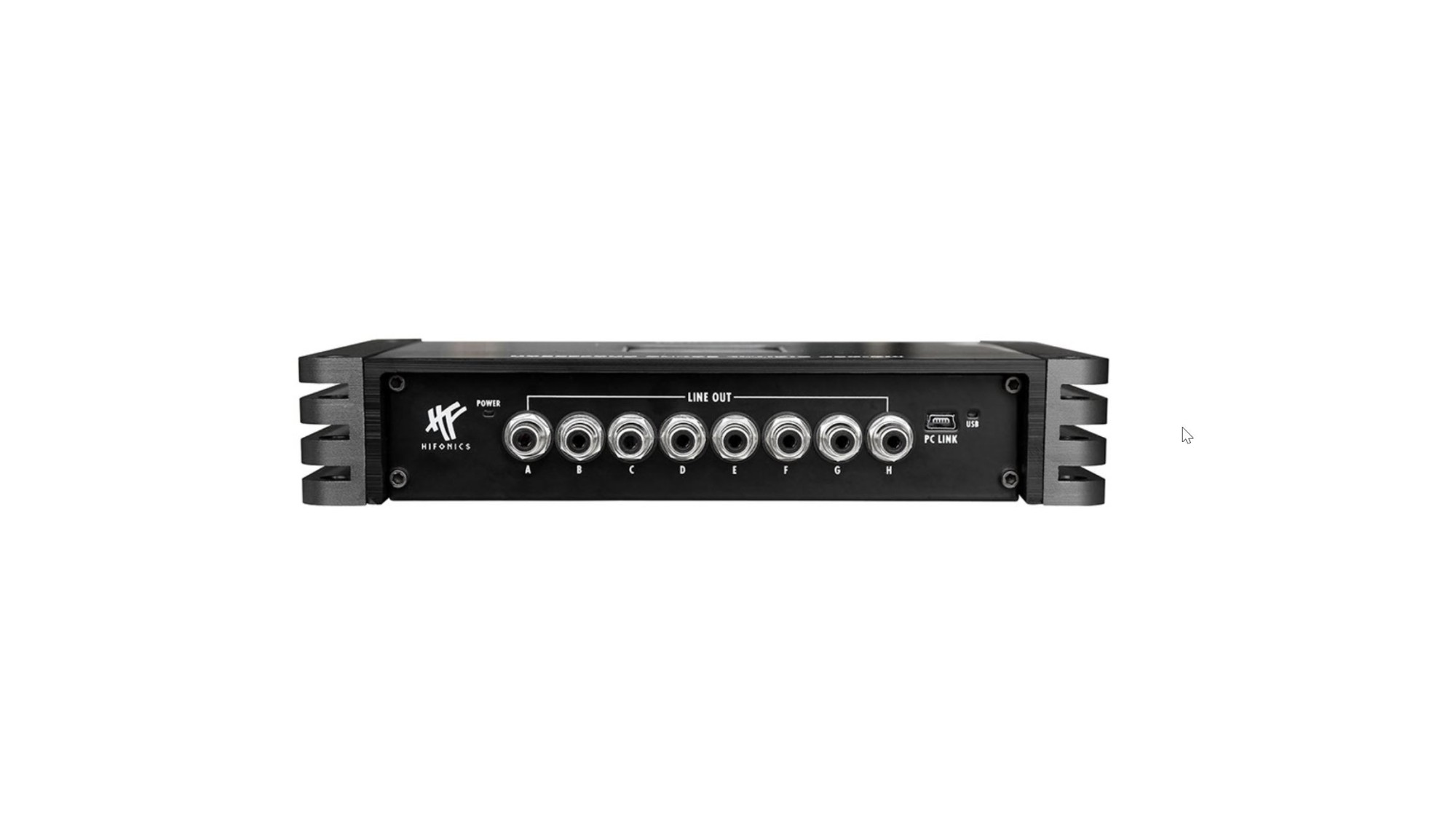

• 8-channel RCA output
• Frequency range: 5-20,000 Hz
• Signal-to-noise ratio: 110 dB
• Harmonic Distortion THD: 0.05%
• Input sensitivity: 0.3-5 V
• Driver software for Windows
• 6x 31-band EQ
• 4x 11-band EQ
• Slope setting 6-48 dB/Oct.
• Phase setting 0/180°
• Hifonics RC-TRX remote control as an optional accessory
• Dimensions: 120 x 40 x 216 mm
