Front + rear parking sensors KBSS-6D

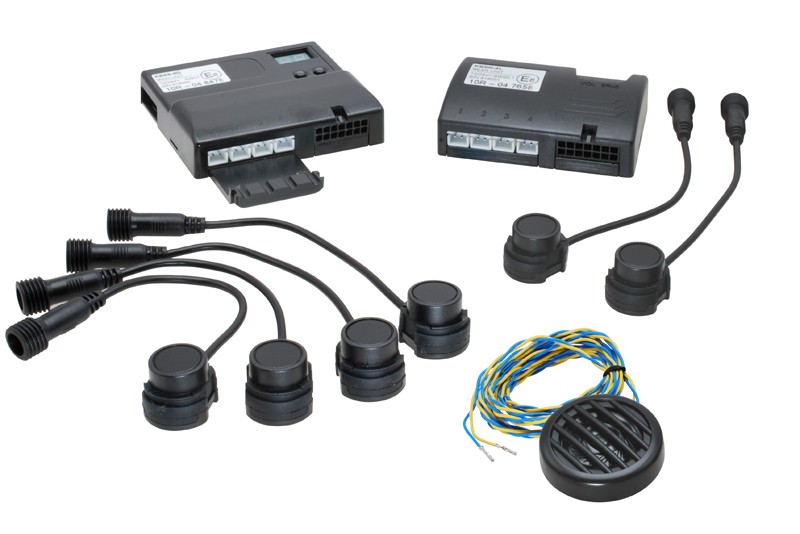

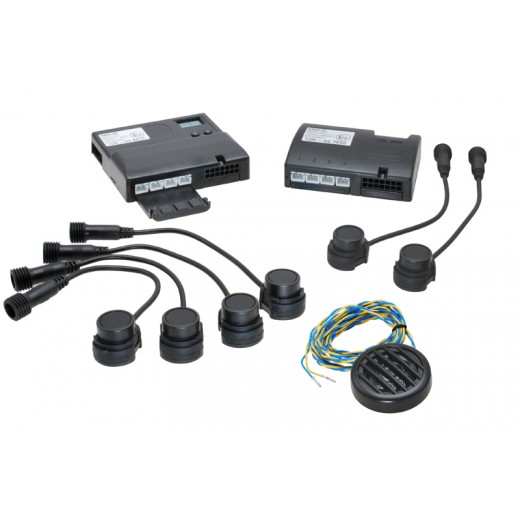

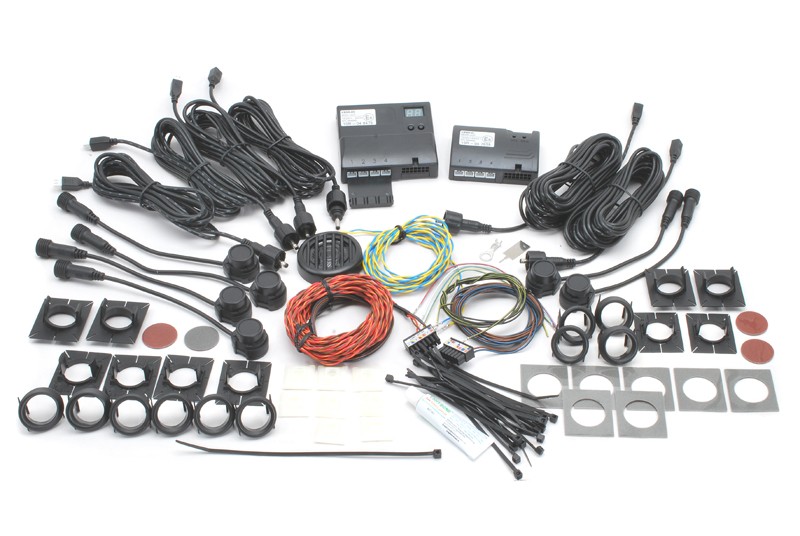

Front + Rear Parking Sensor Kit with 2 + 4 Sensors and Buzzer KBSS-6D

• Activation of the front sensors after switching on the ignition.
• The front sensors are deactivated when a speed of 15 km/h is reached (speed pulses must be connected) by pressing a button (not included) or by engaging reverse gear.
• Ultrasonic sensors with flat radiation characteristics up to 3 m (also suitable for lower installations).
• Option to set parameters.
• Elimination of blind spots in the Stop zone (up to 5 cm).

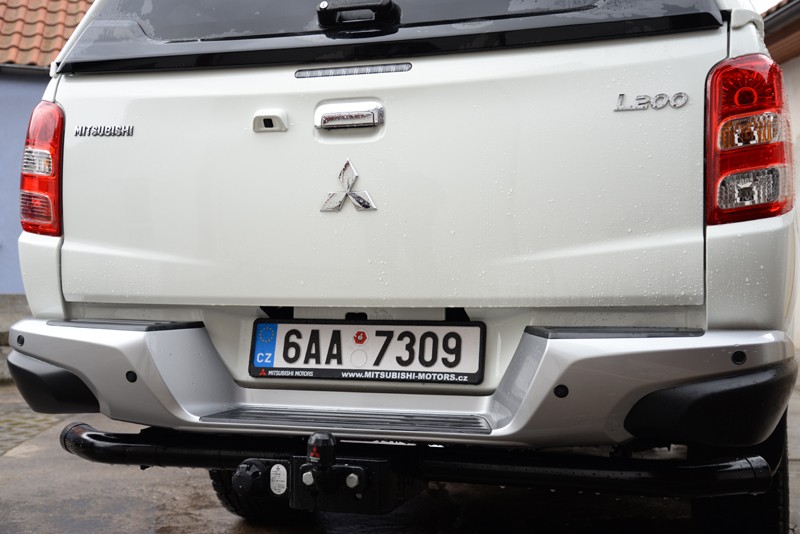

• Elimination of permanent obstacles - towing equipment, reserve, offroad frames.
• Waterproof design of sensors and sensor connectors for wiring with moisture resistance.
• Temperature range -40°C to +80°C.
• Digital signal processing in the control unit using the Texas Instruments ASIC processor.
• Digital narrowband filter for high resistance to electromagnetic interference (for example from intersection sensors, xenons, alternator...).
• A minimum of electronics inside the sensors, signal processing in the control unit.
• Professional design.

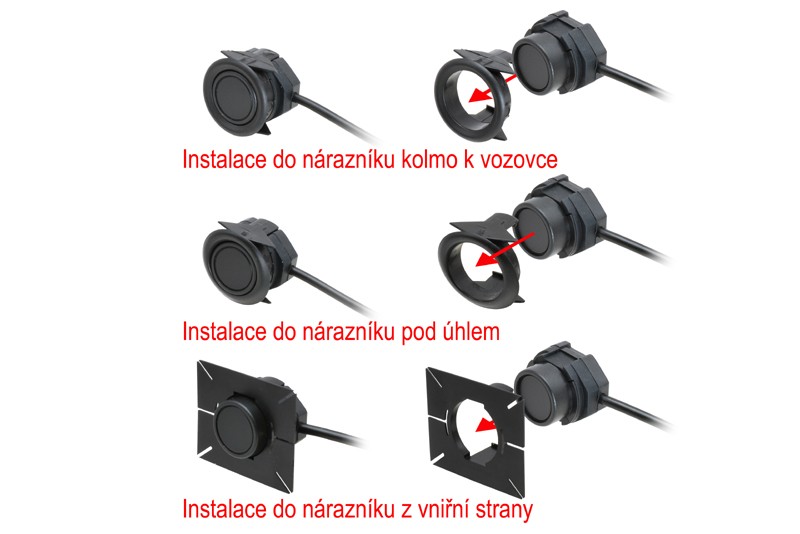

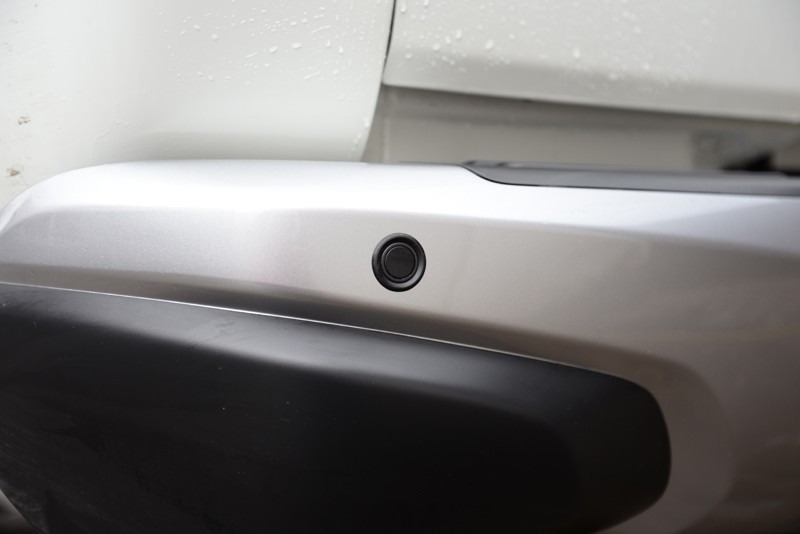

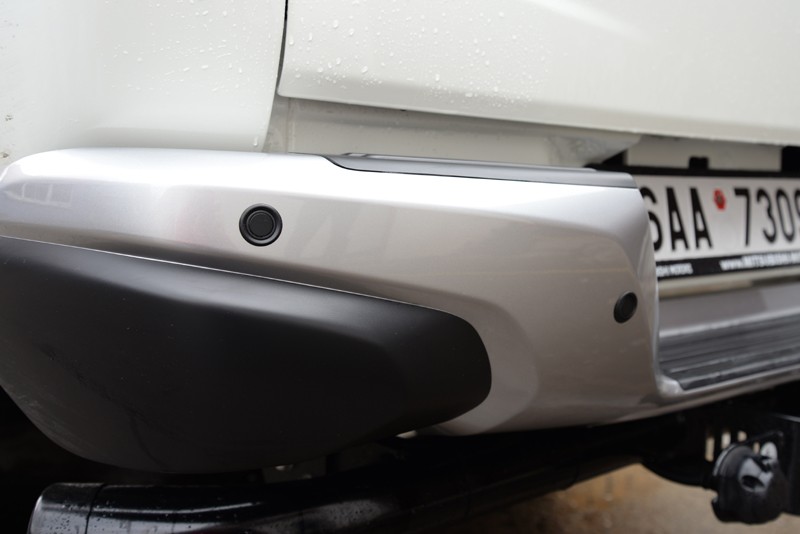

• Installation in the bumper from the inside or outside.
• Possibility of installation in a bevelled bumper.
• Possibility of mounting in a bumper with a diameter of 16 mm or 18 mm.
• The possibility of painting the sensors in the color of the car.
• Audible indication.
• Sound signaling by piezo buzzer.
• MUTE function of the car radio for the duration of the obstacle indication (optional).

Technical details

• Supply voltage: 10.8 to 32 V.
• Current consumption: 200 mA max (only when the ignition is on).
• Operating temperature: -40 to +80°C.
• Ultrasound frequency: 40 kHz.
• Maximum range of front sensors: 120 cm.
• Maximum range of rear sensors: 180 cm.
• Approval: E8 10R-04 XXXX.
