Helix HEC Analog IN

The HELIX Analog IN expansion card expands HELIX products by two analog input channels. This allows for example:

• to provide a low level signal to Helix DSP devices.
• upgrade premium OEM audio systems that require additional high-level inputs.
• connect other analog signal sources such as a TV or smartphone.

The high-level input is of course equipped with our proprietary ADEP.3 circuit, Auto Remote function and adjustable input sensitivity from 1.5 to 30 V. The low-level stereo 3.5 mm input also has variable input sensitivity from 0.5 to 8 V. Side panel specific for the device is included in the delivery.

Main features of Helix HEC Analog IN

• It extends the DSP device with two additional analog input channels.
• High level input with ADEP.3 circuit, automatic remote switch and adjustable input voltage from 1.5 to 30 volts.
• Low-level stereo line input via 3.5 mm jack with adjustable input voltage range from 0.5 to 8 volts.
• The inputs can be freely configured with the DSP PC-Tool as additional main inputs or as an AUX source.

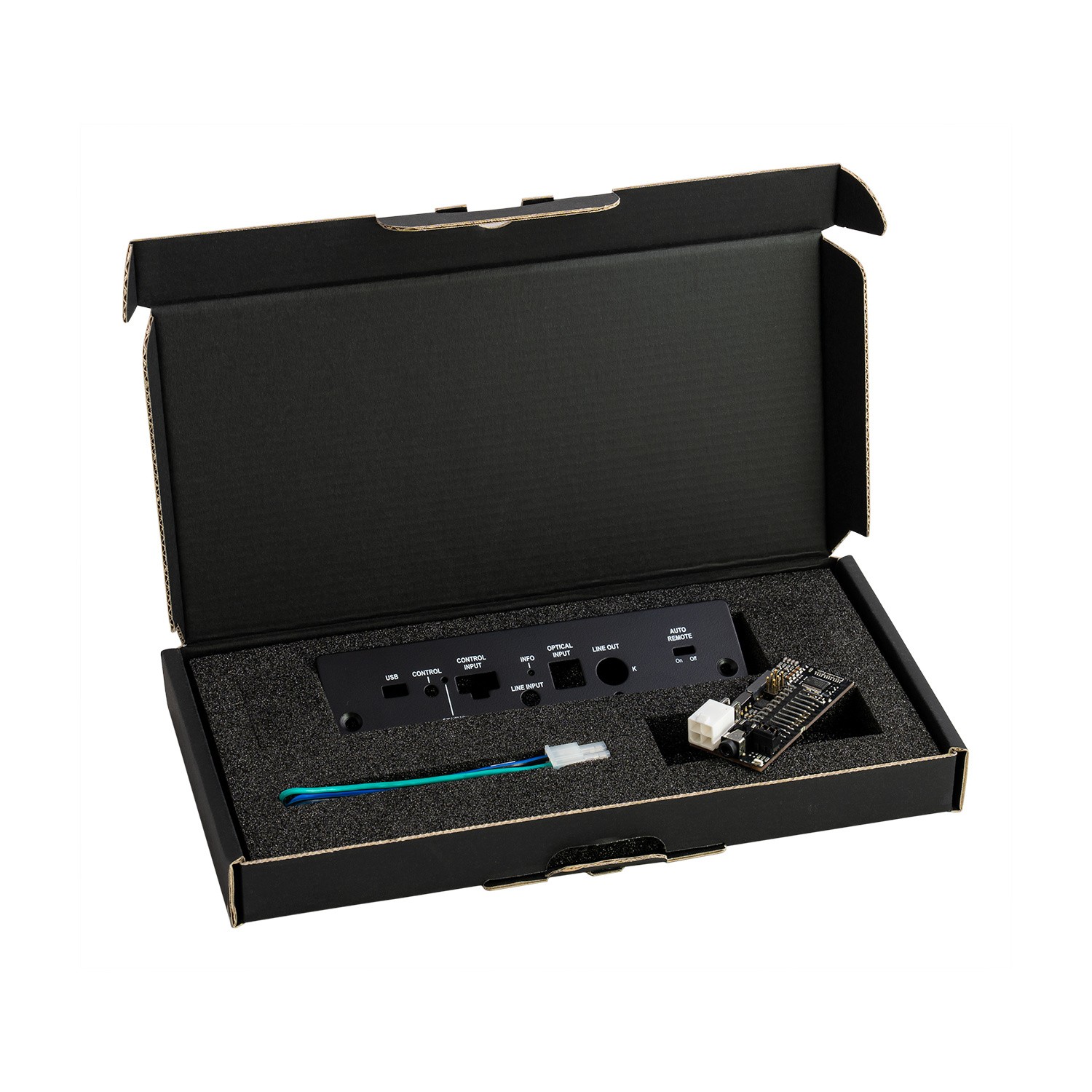

• Device-specific side panel included.

The module is always delivered with a specific part of the panel. Therefore, it is necessary to indicate in the note to the order the Product for which this card is intended.

COMPATIBILITY: Helix P Six DSP Ultimate
