Mosconi Gladen PICO 1 amplifier

Name: Mosconi Gladen PICO 1 amplifier
Brand: Mosconi Gladen
Price: 499.00 EUR

Be the first to rate the product

Add to FavoritesRemove from favourites

1-channel amplifier of micro dimensions, 1 x 500 into 4 Ω / 1 x 750 W RMS into 2 Ω
More about the product

We will help you with your purchase

Use our consulting room
You can return the goods to us within 14 days
Try the product at our store

Description and parameters
Comments0
Evaluation0
Category

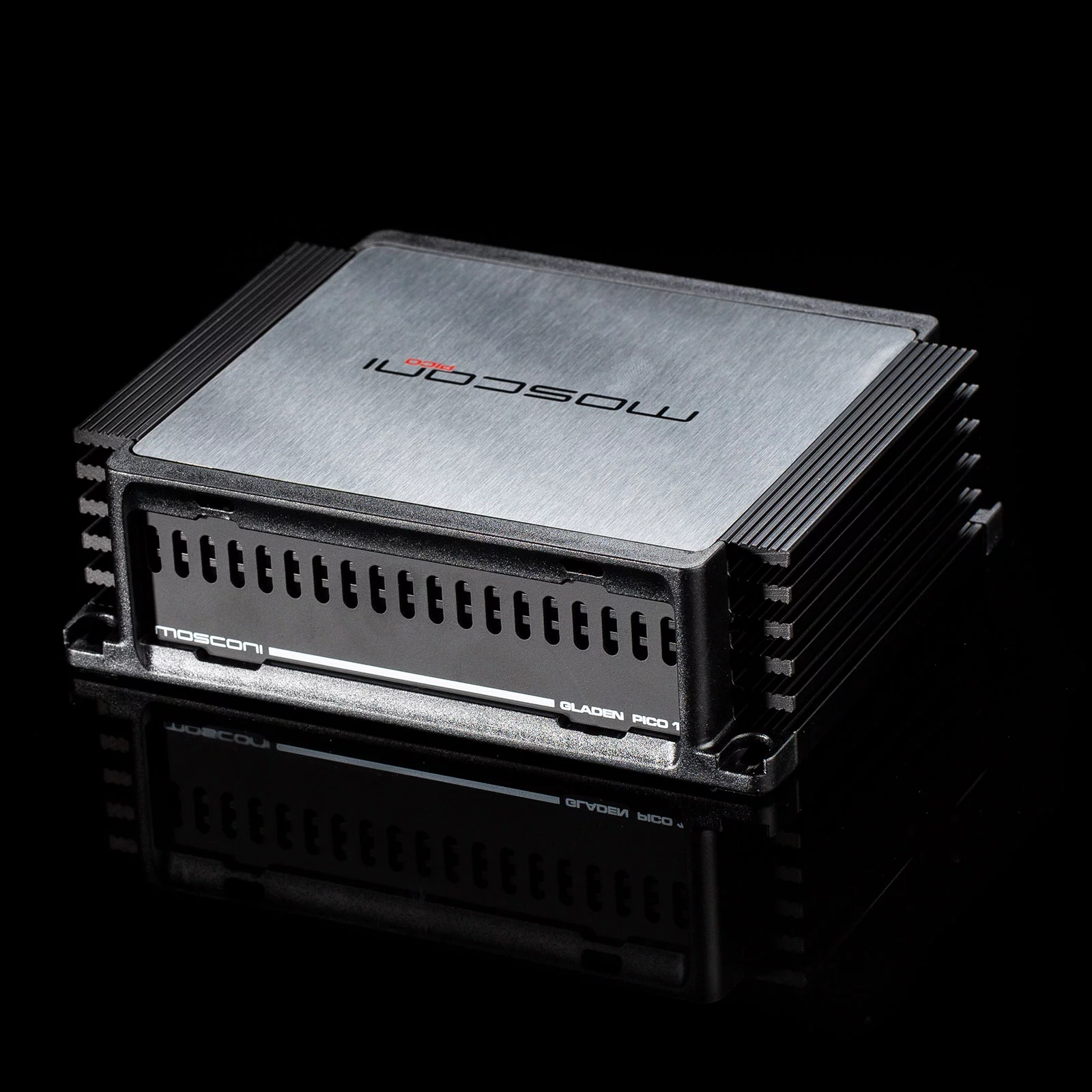

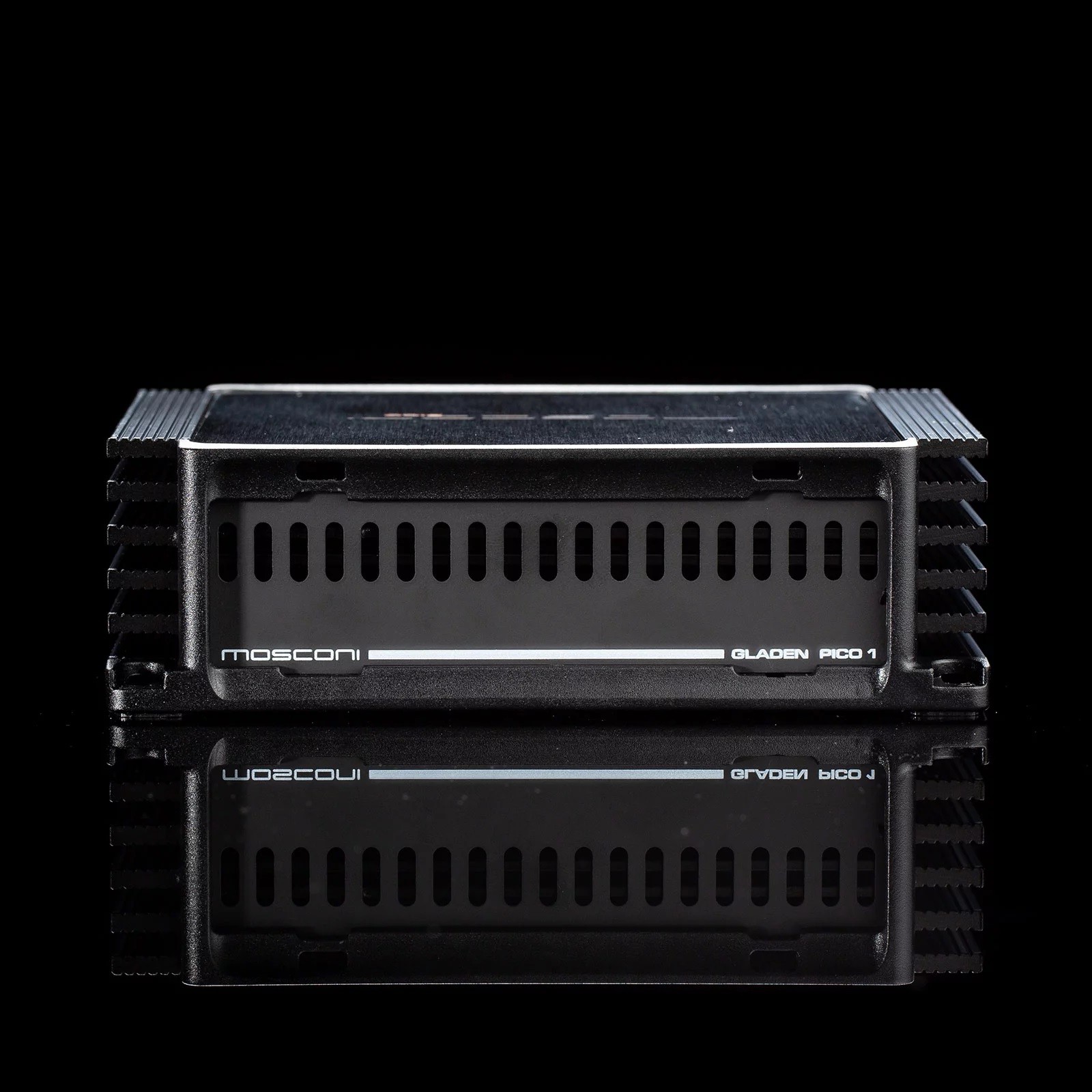

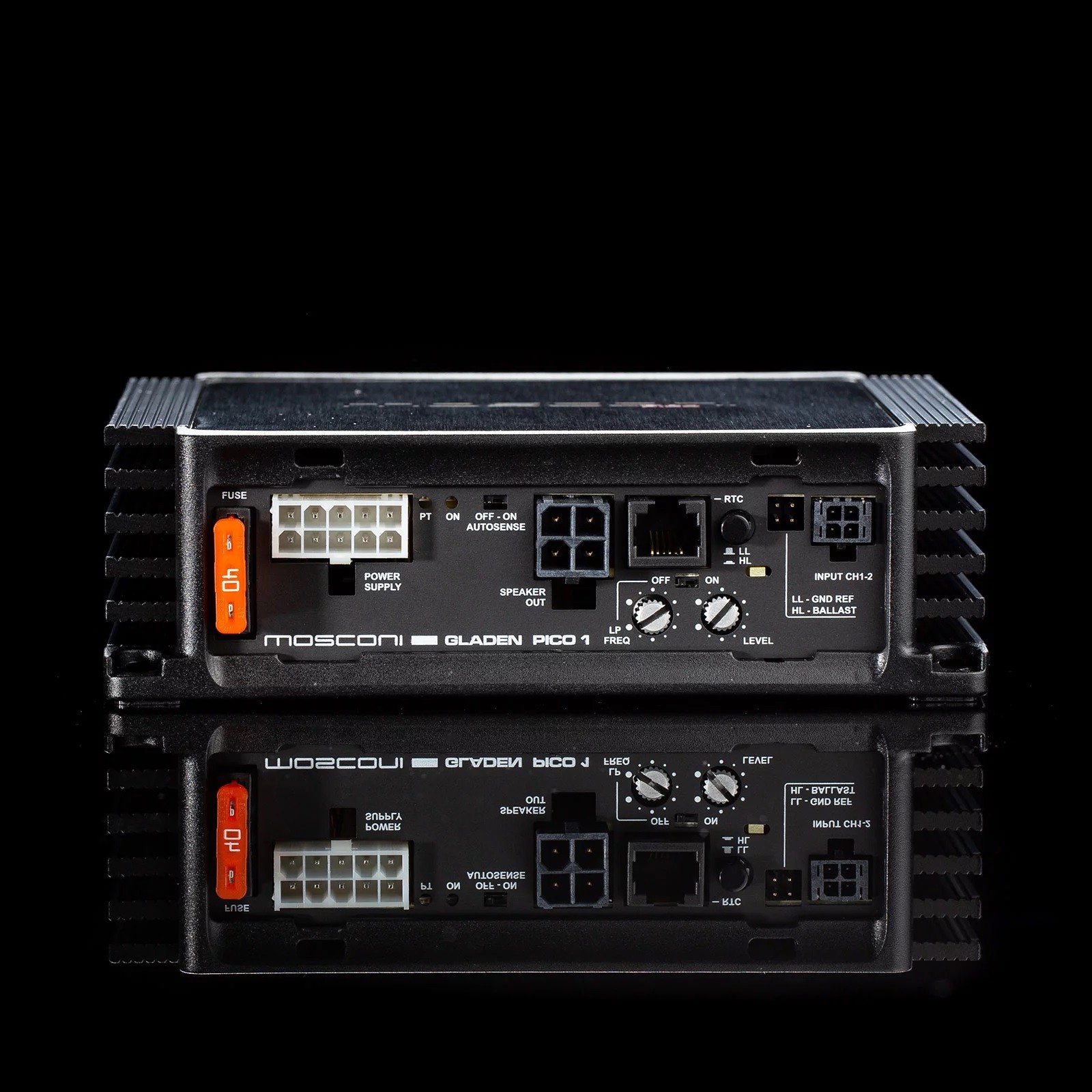

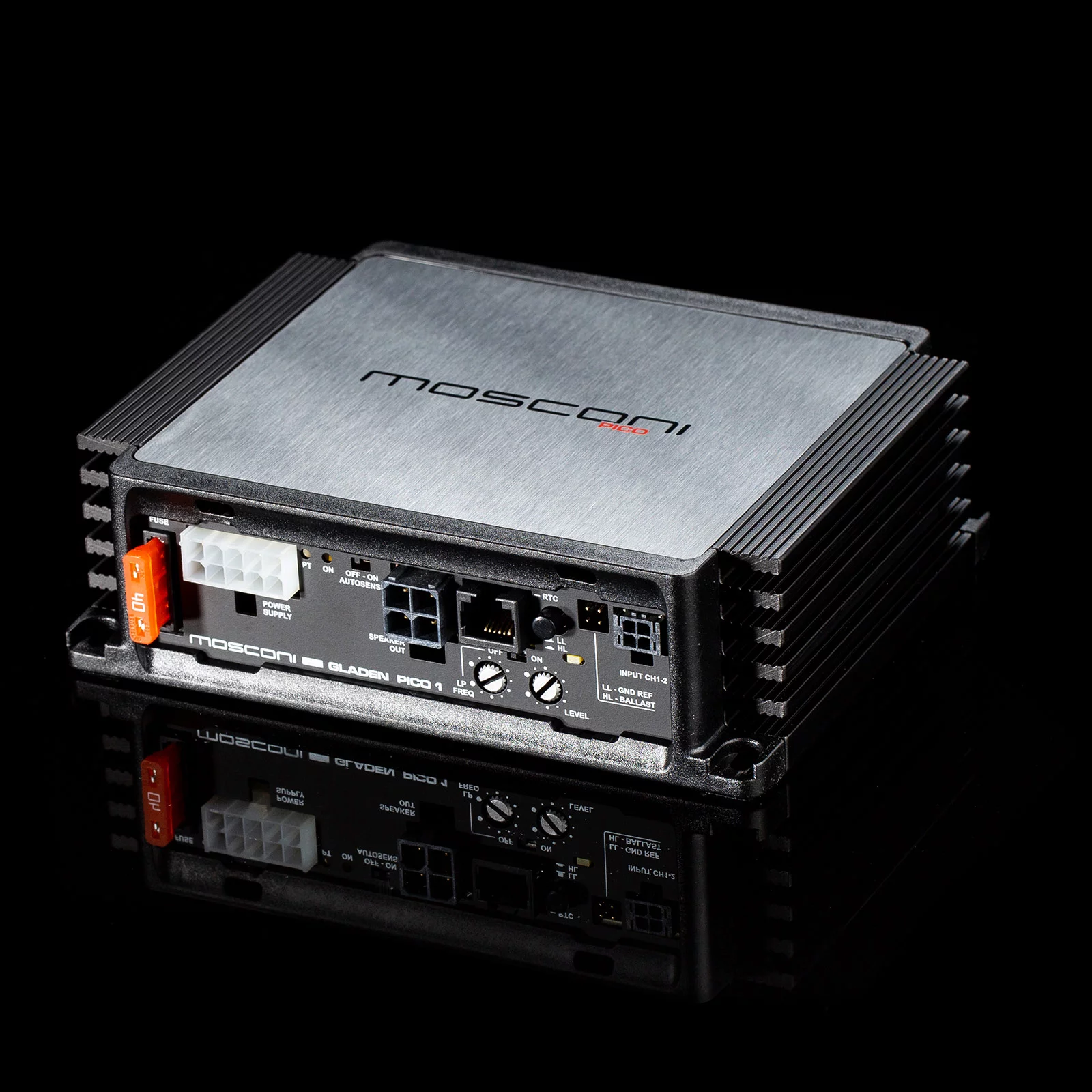

Mosconi Gladen PICO 1 amplifier

The Mosconi Gladen PICO 2.0 became a bit of a sensation in 2015. That's why Gladen decided to significantly expand this range with additional models of Mosconi Gladen PICO amplifiers. At the end of 2019, the new micro amplifier PICO 1 came to the market. Its dimensions are 150 x 115 x 46 mm, thanks to which it will not be a problem to find a suitable place in the car so that it hides and is not seen. PICO amplifiers use Class D technology.

Key features of the Mosconi Gladen PICO 1 micro amplifier

Wideband PWM amplifier with separate synchronized modulation and fast high voltage Mosfets.
The PICO 1 delivers a full 750W RMS into two ohms.
An ideal complement (for a subwoofer) to the PICO DSP power amplifier, with high and low level input and its own filters, but can also be used on its own.
Long lateral ribbing for optimal heat dissipation.

Catalog number	PICO 1
Brand	Mosconi Gladen
Links	Official web presentation
Number of amplifier channelsAmplifiers are divided into: - Monoblocks - 2-channel - 3-channel - 4-channel - 5-channel - 6-channel - multi-channel Each channel is used to power one speaker for the coaxial type, or one side if they are component speakers. Monoblock type amplifiers are mainly used for subwoofers. 2-channel are suitable for both subwoofers and, for example, the front pair of speakers in a car. 3-channel is used for front or rear speakers + subwoofer. 4-channel are used for front + rear speakers or 1 pair of speakers + subwoofer. 6 or 5-channel are used for 2 pairs of speakers + subwoofer, most often. Bridging means connecting the amplifier to a bridge, using the + pole from one channel and the - pole from the other channel. In most cases this is shown as "BRIDGED" on the amplifier.	1
Energy class of the amplifierAmplifiers are divided into two basic classes: analog and digital . Analog amplifiers (A/B) have higher consumption requirements, but usually have a more natural sound. Digital amplifiers (D) have significantly lower consumption and higher efficiency, but the sound may not be as faithful as with classic analog amplifiers.	D
RMS power into 4 ΩRMS power when loading speakers or subwoofer at 4 Ω. RMS power is the constant power of the amplifier and is one of the most important parameters when choosing an amplifier.	1 x 500 W
RMS power into 2 ΩRMS power when loading speakers or subwoofer at 2 Ω. RMS power is the constant power of the amplifier and is one of the most important parameters when choosing an amplifier.	1 x 750 W
SubsonicA subsonic filter is essentially a high-pass filter for very low frequencies, typically 45 Hz or lower. Anything below this setting is weakened. The point is that the subwoofer does not go below the subsonic filter setting and does not overload itself with very low frequencies. A useful function, if set correctly, the subwoofer is not overloaded.	13 Hz (12 dB/Oct)
High level inputsThe high-level input on the amplifier allows connection directly to the existing speakers in the car without additional purchase of an external high/low adapter. Important equipment in the case of installing an amplifier on an original car radio.	Ano
Automatic on and offThis function allows you to automatically switch on the amplifier.	Ano
Remote control included in the packageSome models of amplifiers also come with wired remote controls in the package, which on one side plug into the amplifier and on the other side you have a potentiometer that you can place anywhere in the cabin. A common place to place the remote control is under the steering wheel. The advantage is the regulation of power, and therefore volume, depending on driving conditions and the mood of the crew in the car.	Ne
The value of the fuses on the amplifierFrom the value of the fuses on the amplifier, you can get a true picture of the real performance of the amplifier.	1 x 40 A
Dimensions of the amplifier	150 x 115 x 46 mm
Mass	1050 g
