Rear view mirror with LCD display for Nissan RM LCD NIS

Rear view mirror with LCD display for Nissan RM LCD NIS

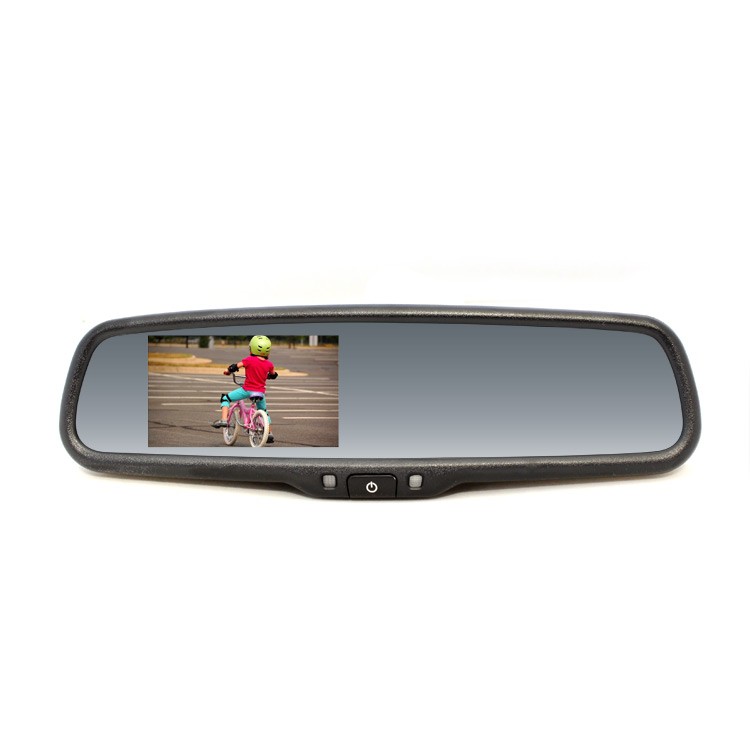

The 4.3" monitor integrated into the rearview mirror for Nissan vehicles is used to display the image from the parking camera and connect an additional video signal. The rearview mirror is installed instead of the original mirror in the vehicle. After engaging the reverse gear, the real image behind the vehicle is displayed for easier and safer reversing and parking.

Technical parameters

• Supply voltage: 12 V.
• Color resolution: 16.7M colors.
• Display screen: TFT LCD.
• Power consumption: 8W.
• Display resolution: 480 (H) x 272 (V).
• Display diagonal: 4.3".
• Video inputs: 2x connector (RCA - CINCH).
• Input activation: automatically when a video signal is input.
• Automatic display brightness level adjustment.
• TV standard: PAL / NTSC (automatic).
• Operating temperature: -20 to +70 °C.
• Dimensions: 80 x 270 x 42 mm.

Supported vehicles

• Nissan

Note

We recommend checking the compatibility with the bracket in your vehicle before purchasing!
For cars without a rain sensor!
