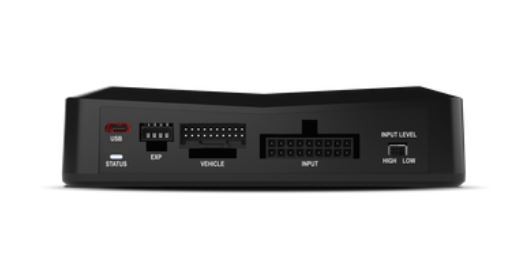

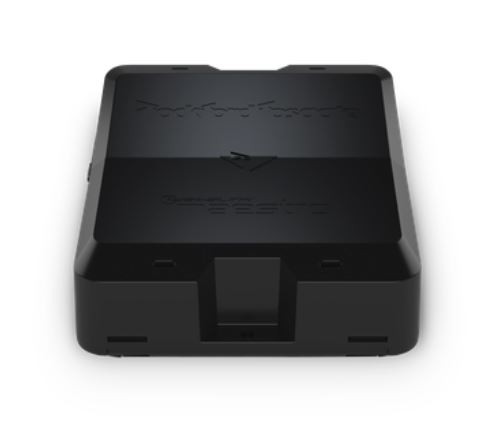

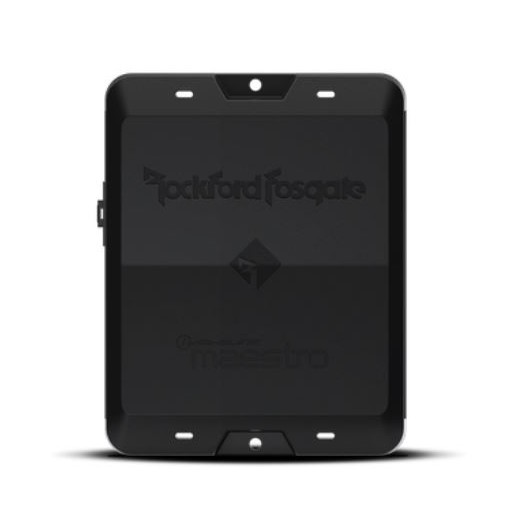

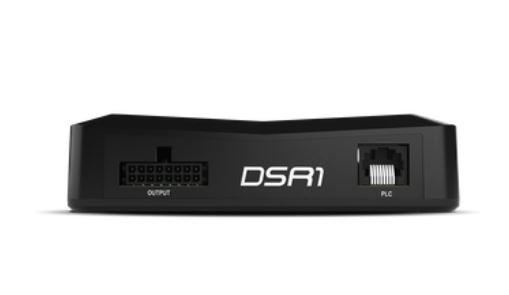

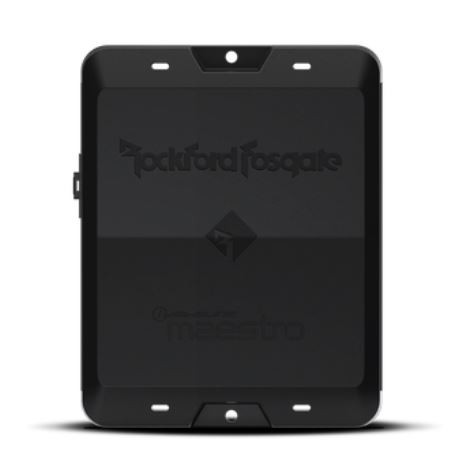

Rockford Fosgate DSR1 DSP processor
DSP processor jointly developed with ADS. The DSR1 combines a fully featured 3Sixty digital signal processor with a changeable iDatalink Maestro integration module. The DSR1 can be used out of the box with high or low entry, or a quick download to add integration-specific firmware without losing the controls and features available in the car's factory equipment. Once the DSP is connected, full control of the sound profile can be set using the Rockford Fosgate PerfectTune™ control program. The DSR1 is the first true factory amplifier and speaker replacement solution in Ford and Chrysler vehicles, as the DSR1 utilizes the full range of the flat audio signal from the factory source unit. Once the Maestro interface is installed, the vehicle specific firmware is locked, messages from the factory CANbus source are used to control the internal routing of the DSR1 signal. The DSR1 still uses the power processor found in the proprietary 3Sixty.3, but adds an easy-to-use app for debugging Apple and Android devices.
Key features of the Rockford Fosgate DSR1
- 8 channels (4 V).
- Digital signal processing with integrated Maestro CAN interface.
- Four-channel balanced differential RCA inputs.
- Four-channel high-grade inputs with Auto sense.
- Remote on/off function with adjustable power-on delay.

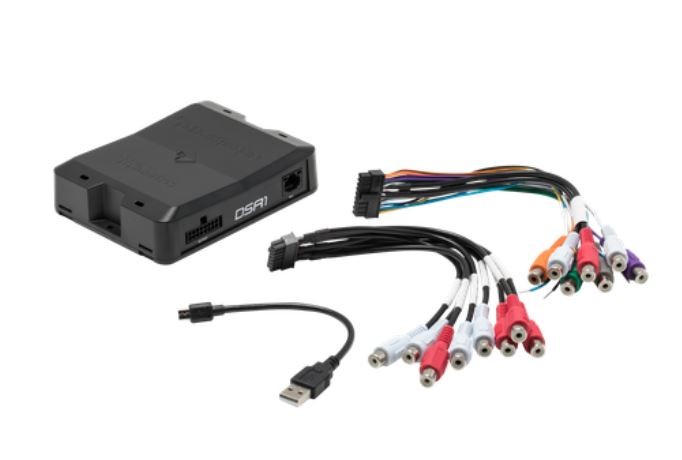

- Analog input bundles 18 pins.
- 16-pin analog output cable.
- Micro USB port for setup/update.
- Designed for use with Select Maestro bus connections.
- Auxiliary RCA and SPDIF coaxial inputs.
- Optional PLC2 level controller with assigned functions.
- 245 equalization bands for subsequent tuning.
- For 10 msec delay on each channel for time alignment.
- Bluetooth 4.0 connection for convenient setup.

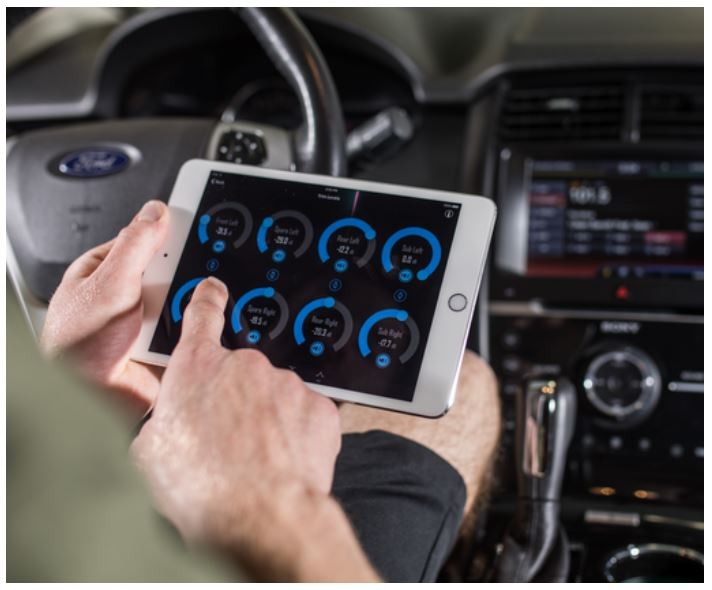

- Interactive debugging interface controlled by Android / iOS APP.
- Extremely small dimensions 102.5 x 32 x 130 mm.
| Catalog number | DSR1 |
| Brand | Rockford Fosgate |
| Links | Official web presentation |
