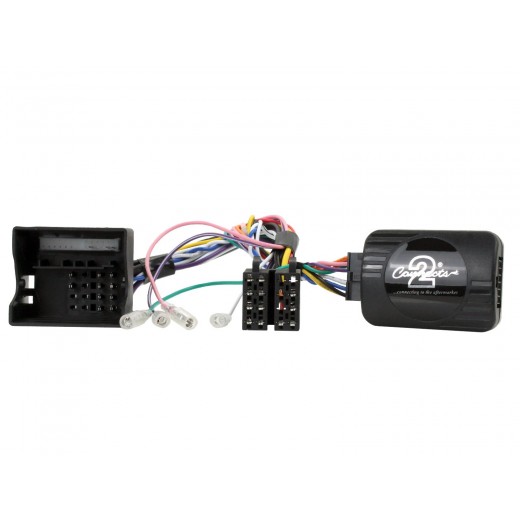

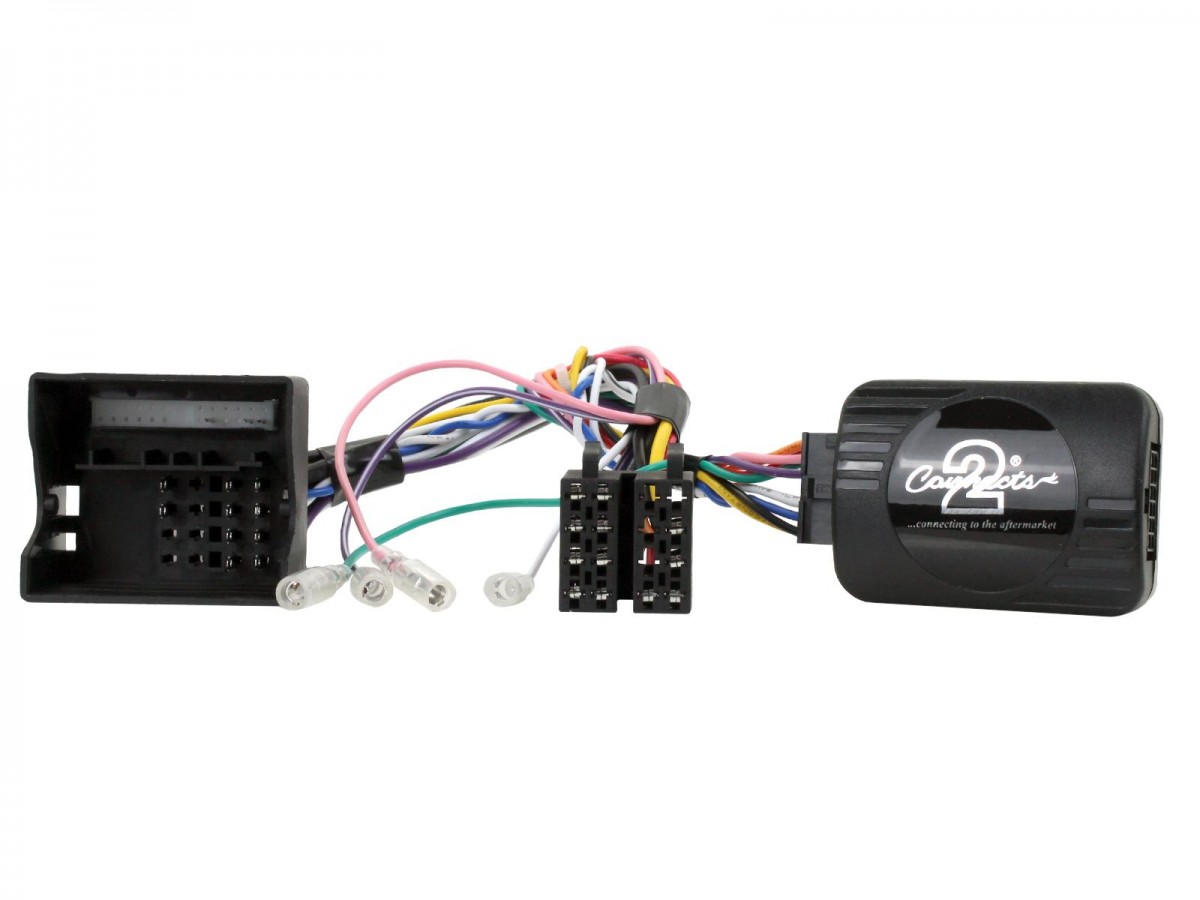

Steering wheel button control adapter Mercedes A-Class, B-Class, CLA, GLA Connects2 CTSMC009.2

Mercedes steering wheel adapter

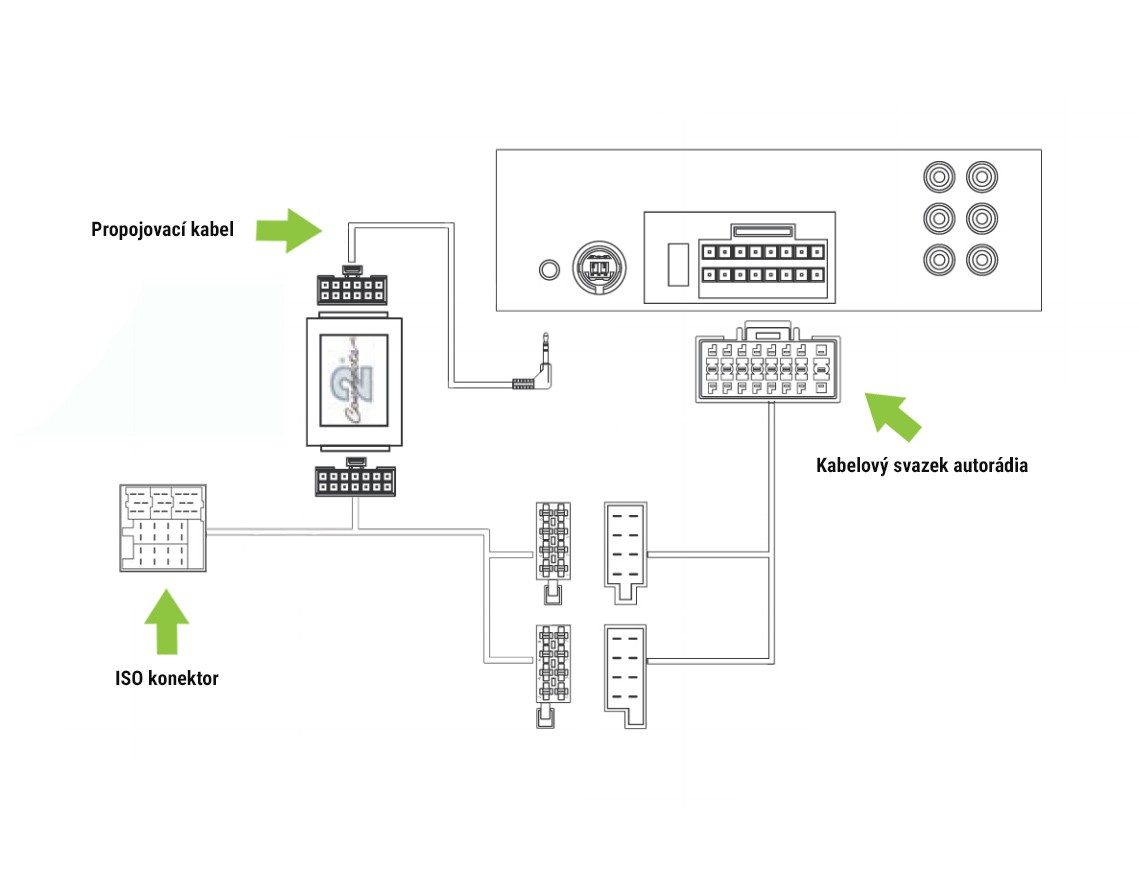

Adapter for activating the control buttons on the steering wheel when buying an aftermarket car radio with an ISO connector (included in the adapter) for vehicles:

• Mercedes-Benz A-Class [W176] (2013 -> 2018)
• Mercedes-Benz B-Class [W246] (2011 -> 2019)
• Mercedes-Benz CLA [C117] (2013 -> 2019)
• Mercedes-Benz GLA [X156] (2013 -> 2020)

Important additional information

• For cars with CAN-Bus control on the steering wheel and FAKRA connector.
• The adapter enables setting the time and date displayed on the display even after removing the OEM car radio.
• The adapter supports the buttons on the steering wheel to control the hands-free kit.
• Designed for aftermarket Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker car radios.
• To fully activate the adapter, it is necessary to order a connecting cable for the given brand of car radio! (see below)

The adapter includes wires with analog signals

• +12 V after turning on the key (vol. 15).
• +12 V after turning on the vehicle lighting.
• +12 V after engaging reverse gear.
• Information about applied parking brake.
• Lights on.
• Speed pulses.
