Alpine X903D-DU advanced navigation station

9" navigation station Alpine X903D-DU designed for Fiat / Citroen / Peugeot vehicles

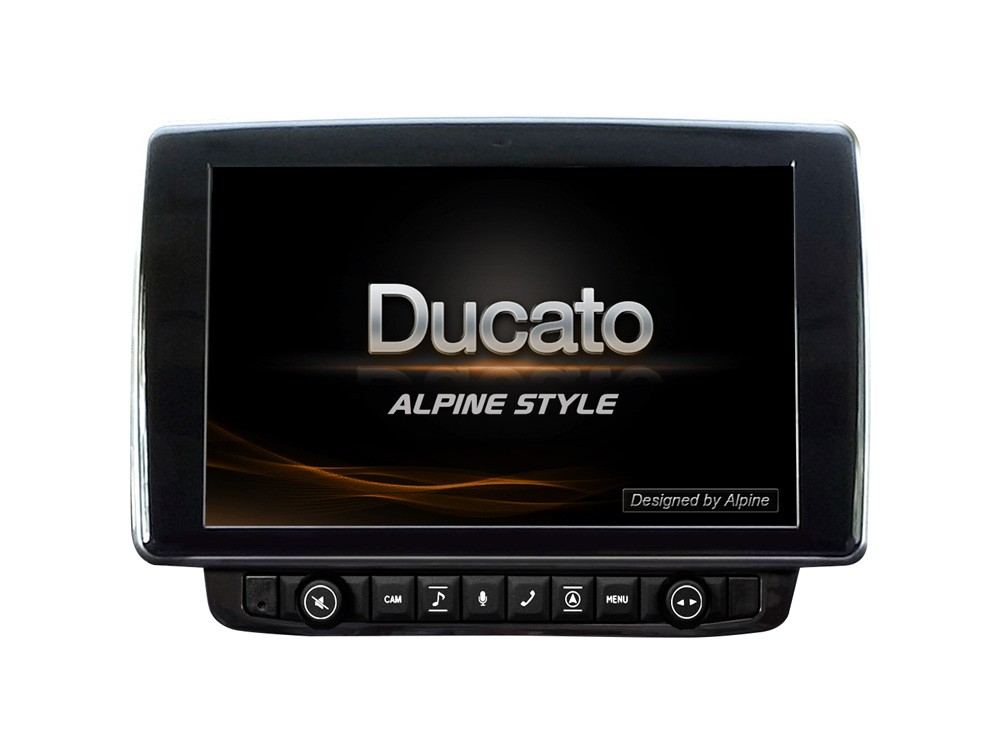

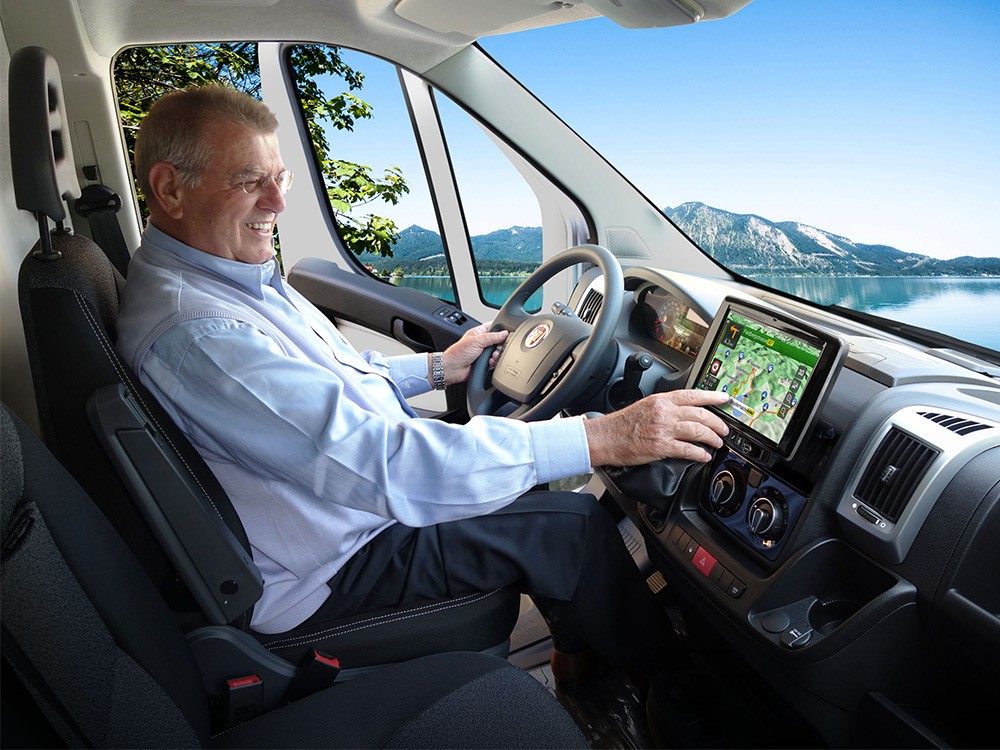

Alpine introduces the 3rd generation Alpine Style system for Fiat Ducato III, Citroën Jumper II and Peugeot Boxer II cars. The X903D-DU is equipped with a huge 9" touch screen, which is located outside the instrument panel so that it is perfectly reachable from the driver's seat. This makes it very easy to see and control the navigation maps and other functions. The third generation includes new rotary encoders for easy volume control and radio station search, as well as a button for direct access to the camera. We have also improved the wiring harness to make installation easier and much faster. The X903D-DU is equipped with iGo Primo NextGen navigation system with TomTom maps pre-installed for 48 countries with 3 years free map updates. You can now choose from 3 different camper profiles (sizes: S / M / L) or manually enter the parameters of your camper. This means that only suitable routes for your specific motorhome will be suggested. You can also easily install additional databases campsites and stellplatz (place to stand) for your camping needs.The X903D-DU also includes Apple CarPlay and Android Auto compatibility.

• Easily accessible from the driver's seat.
• Extra large 9" (23 cm) touch screen.
• Remote control buttons on the steering wheel.
• Easy access from the camera.
• One Look Display.

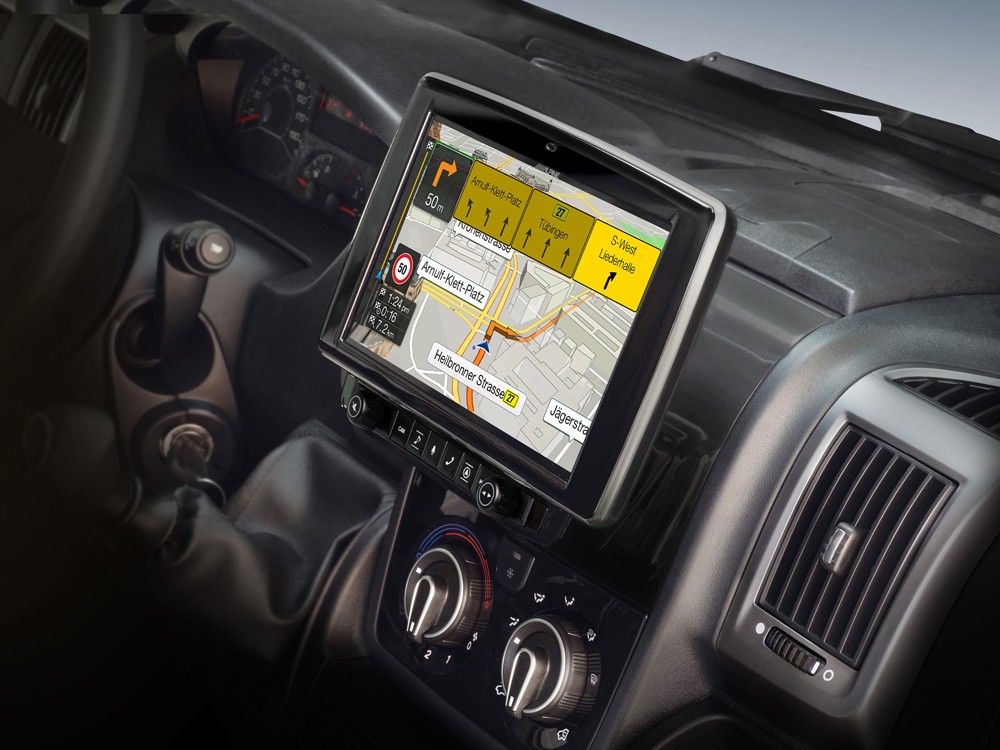

• Perfect navigation for campers.
• TomTom maps with 3 years of free updates.
• Compatible with GPS and Glonass.
• Importable POI database for campfires.

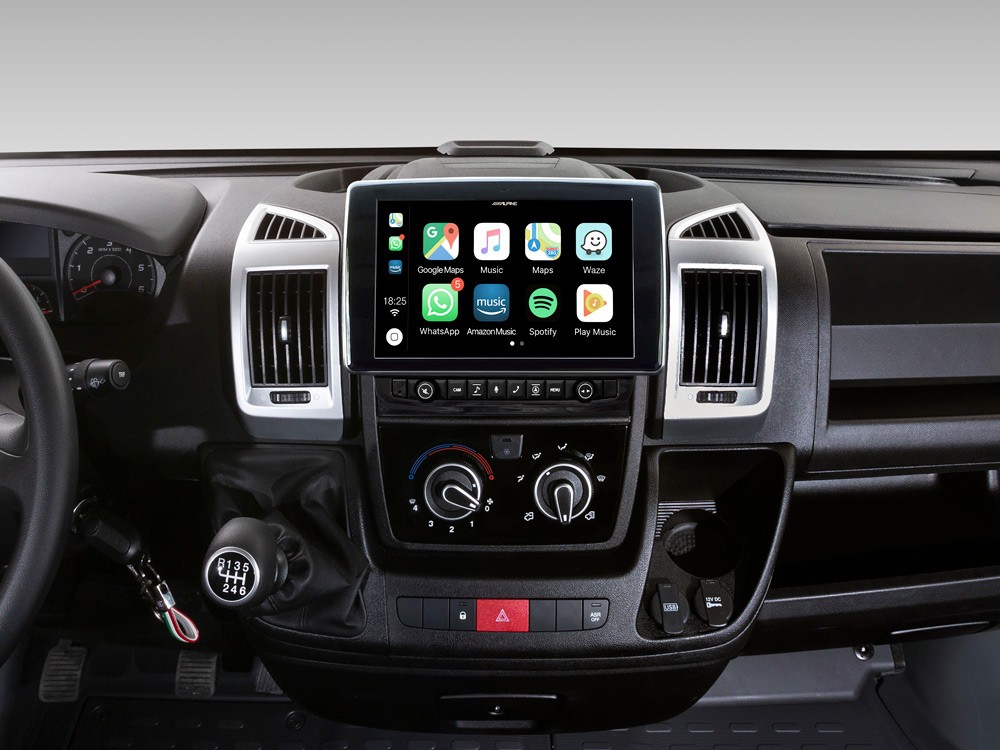

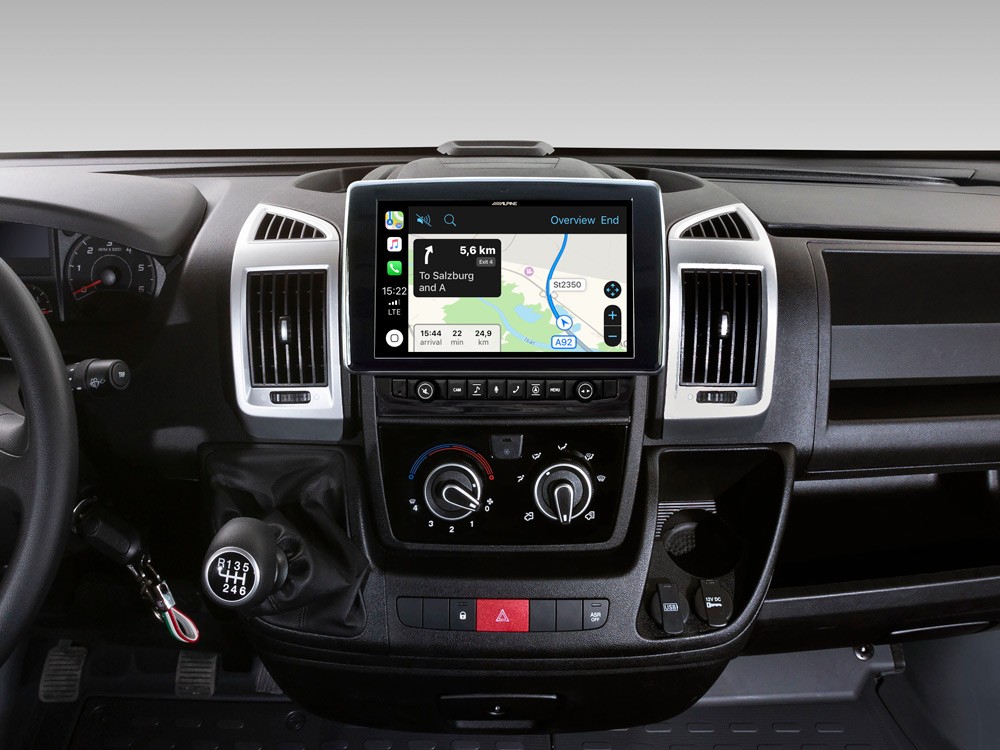

• Works with Apple CarPlay.

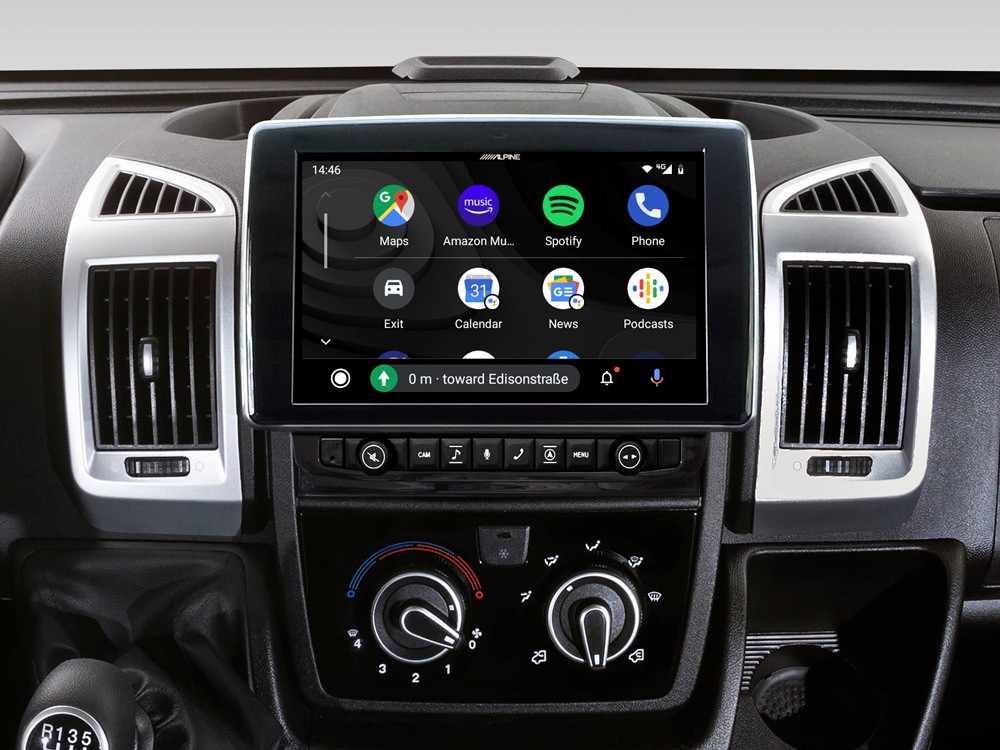

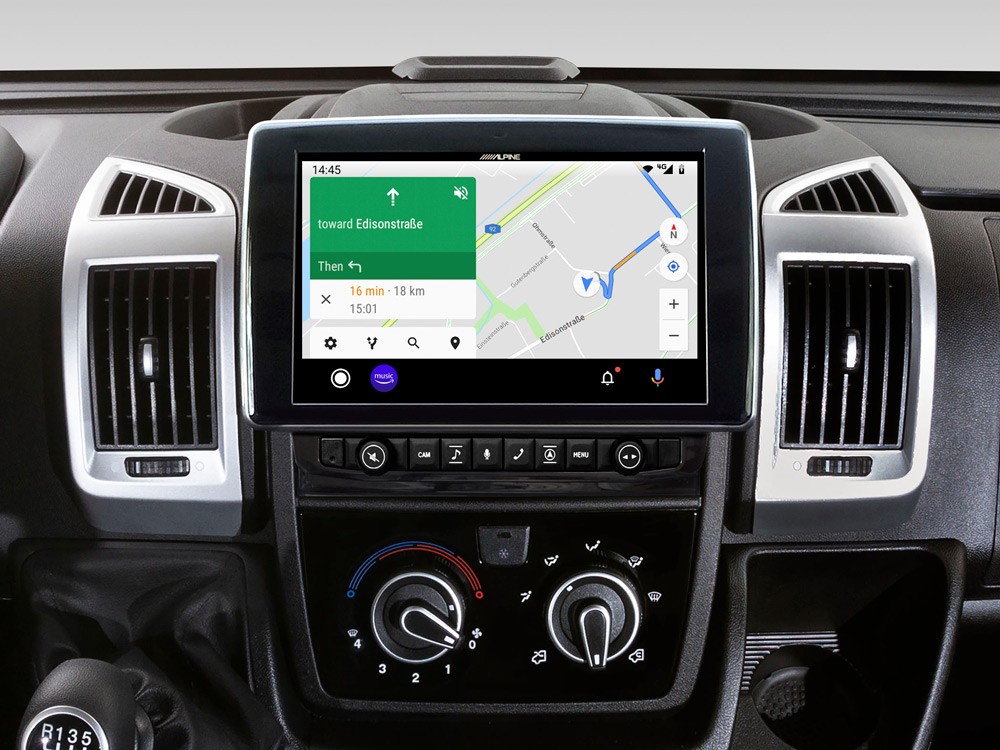

• Works with Android Auto.
• Built-in Bluetooth® technology.
• DAB / DAB+ digital radio.
• Connect up to 3 cameras.

Compatible with cars:

• Fiat Ducato III (250) (June 2006 ->)
• Fiat Ducato III facelift (250) (2011 -> 2014)
• Fiat Ducato III (290 ) (2014 ->)
• Citroën Jumper II (250) (June 2006 ->)

• Peugeot Boxer II (250) (2011 -> 2016)

- For cars with 1DIN car radio or preparation for car radio.
- A cable harness with an ISO / Mini-ISO connector is required.

Catalog number	X903D-DU
Brand	Alpine
Links	CZ official web presentation
Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm.	1DIN
Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel.	4 x 50 W
Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input.	FLAC / MP3 / WMA / AAC / AVI / MP4 / MKV
USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable).	Ano
CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD.	Ne
SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios.	Ne
DVD driveDVD ("Digital Versatile Disc" or "Digital Video Disc") is a digital optical data carrier format that can contain movies or various other data. Car radios with a DVD drive can also play classic CD discs, and the car radio always has a slot for only one disc, the CD drive and the DVD drive are always in one.	Ne (připraveno pro volitelný DVD přehrávač DVE-5300)
HDMI / MHLHDMI stands for High-Definition Multi-media Interface, an uncompressed video and audio signal in digital format. HDMI supports video transmission in standard, enhanced or high-definition quality, and up to 8-channel digital audio. Mobile High-definition Link (MHL) is an industry norm and standard for a mobile multimedia (audio/video) interface that allows you to connect a smartphone, tablet and other portable electronic devices to car stereos with high definition image and sound. The MHL standard supports video up to full HD 1080p/60 and audio with 7.1 channels.	Ano (vyžaduje Alpine Special HDMI konektor)
Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function.	Ano
Audio Streaming via BluetoothA2DP (Advanced Audio Distribution Profile) is a Bluetooth profile that enables the wireless transmission of stereo audio from an A2DP source, typically a mobile phone or computer, to an A2DP receiver (car radio). These devices usually also support the AVRCP profile.	Ano
External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror.	Ano
Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases.	3 páry
Output level on RCAAn important parameter if you are going to install an external amplifier. If you purchase a car radio with a basic value, i.e. 2V outputs, then greater demands will be placed on the power of the amplifier. As the value increases, e.g. 4V or 5V, the power of the external amplifier increases significantly, in layman's terms. A car radio with strong outputs therefore has the advantage that you do not pull so much power through the amplifier and thus achieve a better sound, as external amplifiers lose control at higher loads.	2 V
Made for Apple iPod & iPhoneWhen connecting an Apple device to the car radio, music applications can be controlled using the car radio itself, i.e. basic common functions.	Ano
Apple CarPlayApple CarPlay is a completely new option for connecting a smartphone to a car radio that has the Apple CarPlay function. The connection is only by cable, thanks to the high data flow. You click on the Apple CarPlay icon on the car radio screen and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. It also works with voice control and Siri.	Ano
Works with Android OSAfter connecting a smartphone with the ANDROID operating system, the car radio can control music in the Android OS music player (Google Play, Spotify, etc.), so there is no need to pick up a mobile phone. You control the basic, common functions of the music application with the car radio itself.	Ano
Android AutoGoogle's Android Auto is a completely new option for connecting a smartphone to a car radio that has the Android Auto function. The connection is only by cable, thanks to the high data flow. The Android OS requirement is at least version 5.0. You click on the Android Auto icon on the car radio screen, and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. Voice control and GPS signal also works.	Ano
Backlit buttonsColor options for the backlight of the car radio buttons.	Bílé LED
Display backlightOptions for backlighting the car radio display.	Bílé LED

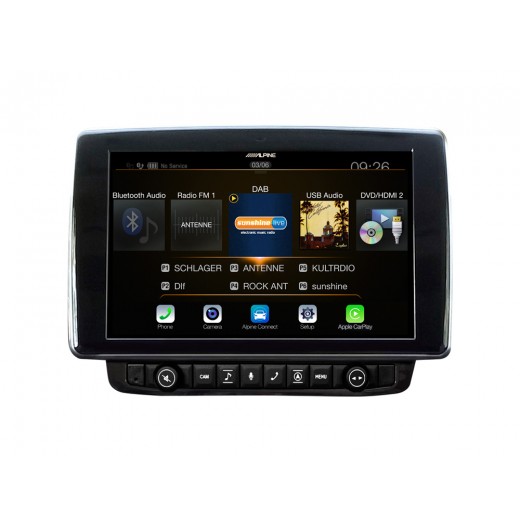

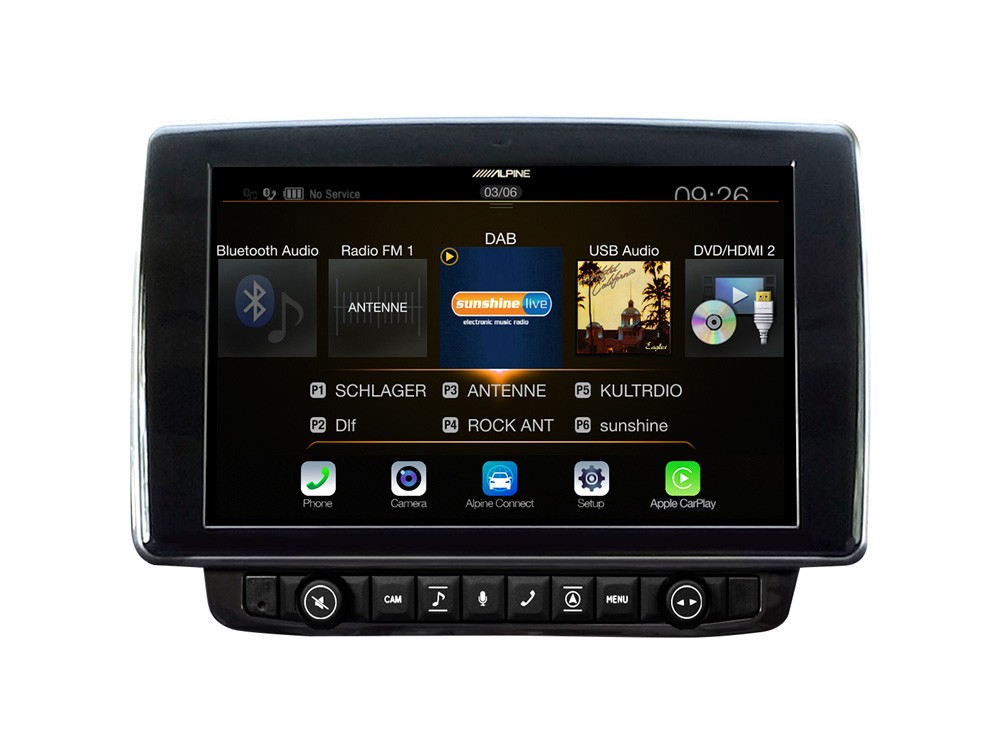

DisplayAdditional information about the display. Segment, LCD, multi-line, etc.	9" kapacitní WVGA displej
DimmerThe Dimmer function is used to automatically reduce the brightness after dark. The dimmer can usually be set manually in a few steps.	Ano
Equalizer / DSP processorA basic or parametric equalizer allows you to adjust the sound at individual frequencies in finer steps. Using the DSP processor , you can set the time correction, connect the speakers actively (actively): without crossovers, set the location of the speakers and determine their size digitally.	Ano
Dual zoneThe "Dual Zone" function allows you to split the signal in the multimedia car radio and, for example, the rear or ceiling monitor. If the car radio has this function, you, as the driver, watch a TV signal, for example, and the rear passengers watch a movie on the overhead monitor.	Ano
Built-in DAB+ tunerIntegrated DAB+ (Digital Audio Broadcasting) digital FM tuner for reception of digital FM radio signal broadcasting. Before buying a car radio with a DAB+ tuner, we recommend checking whether the package includes a DAB+ antenna, without which you cannot receive digital broadcasts. This information is usually provided on the manufacturer's official website.	Ano
Direct subwoofer controlSubwoofer settings, where you can add or subtract the dB level, i.e. subtract or add bass according to the recording. Higher class car radios can also rotate the phase and other functions for perfect bass. Some car radios allow you to turn off the subwoofer completely, with a button in the car radio menu. This is a very useful feature if you have a subwoofer in your car.	Ano
Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely.	Ne
Input for steering wheel button control adapterCar radios equipped with a cable input or a 3.5 Jack socket for an adapter to control the buttons on the steering wheel. Most branded car radios have this input, from the back of the car radio body.	Ano
Other	Pro automobily Fiat Ducato III / Citroën Jumper II / Peugeot Boxer II
