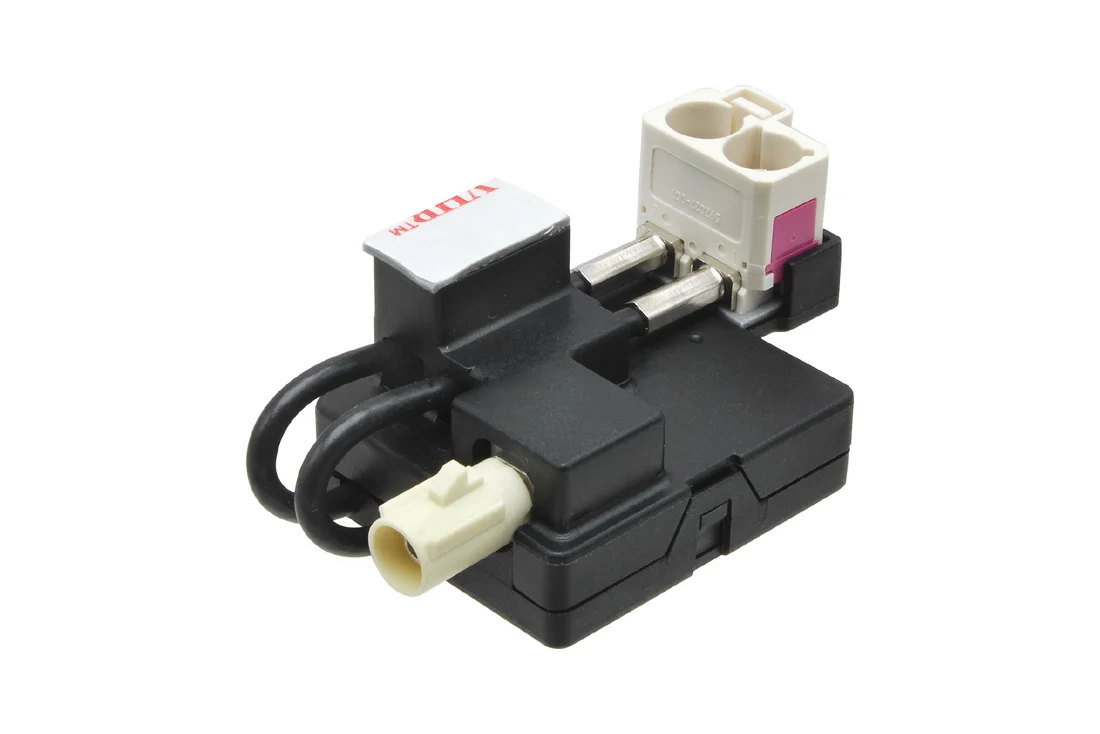

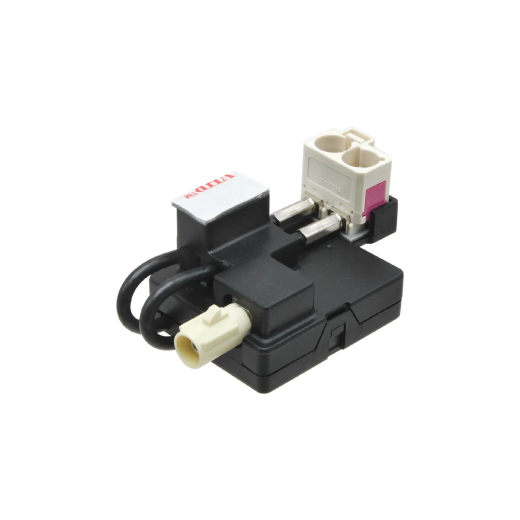

Antenna amplifier and signal splitter Calearo 7562016
amplifier and active AM / FM radio signal splitter
More about the product
More about the product
We will help you with your purchase
- Use our consulting room
- You can return the goods to us within 14 days
- Try the product at our store
AM / FM radio signal amplifier and active splitter
For connecting a car radio or navigation system with two antenna inputs to cars with one car antenna.
Suitable for cars:
- universal use
- Audi
- Seat
- Damage
- VW
Specifications:
- frequency range: AM/FM 0.52-1.71 / 87.5-108 MHz
- gain: 6 dB
- phantom power supply voltage: min +7 to +15.5 V
- current consumption: 15 mA
- output impedance: 50 ohm
- input connector from the antenna: FAKRA male type B (white color)
- output connector for car radio: double FAKRA female 90° type B (white color)
- installation under the instrument panel

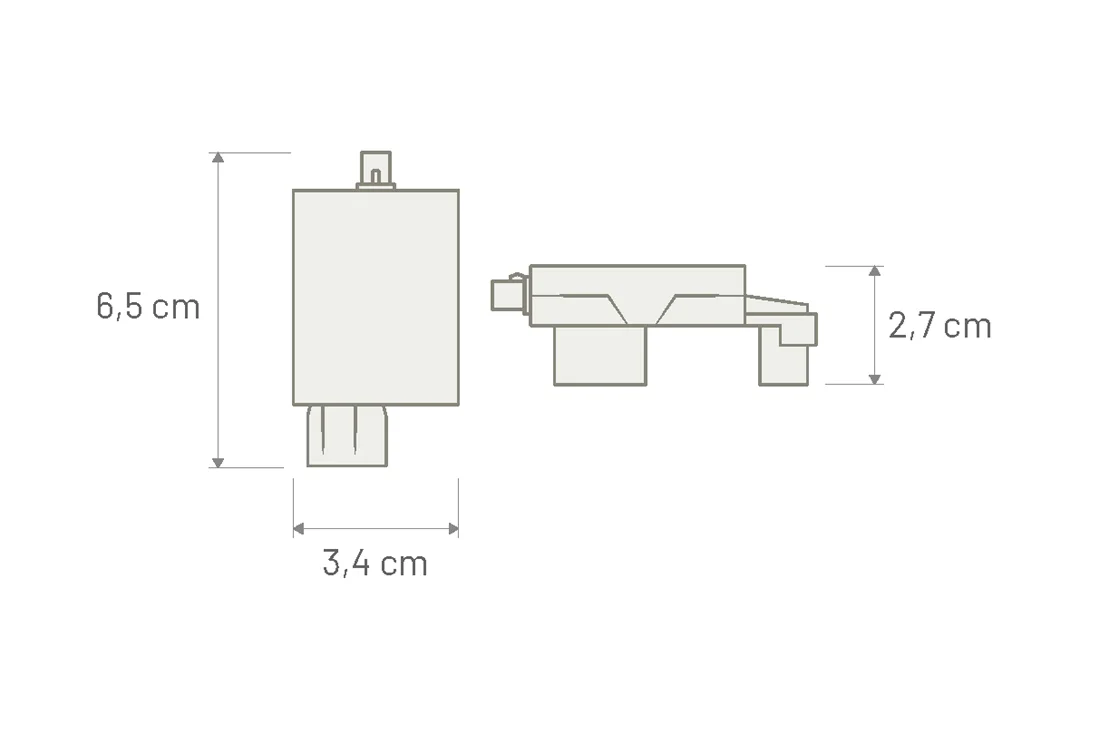

- dimensions: 65 x 34 x 27 mm
- temperature range: -40°C to +70°C
- protection: IP40
| Catalog number | 7562016 |
| Brand | Calearo |
| Links | Official web presentation |
