Antenna Calearo Shark 2 7677815
Shark 2 DAB + FM roof antenna
More about the product
More about the product
We will help you with your purchase
- Use our consulting room
- You can return the goods to us within 14 days
- Try the product at our store

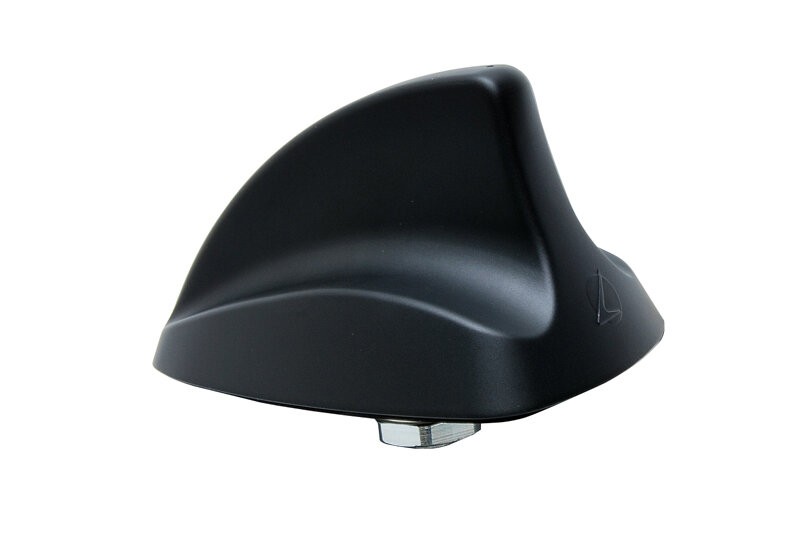

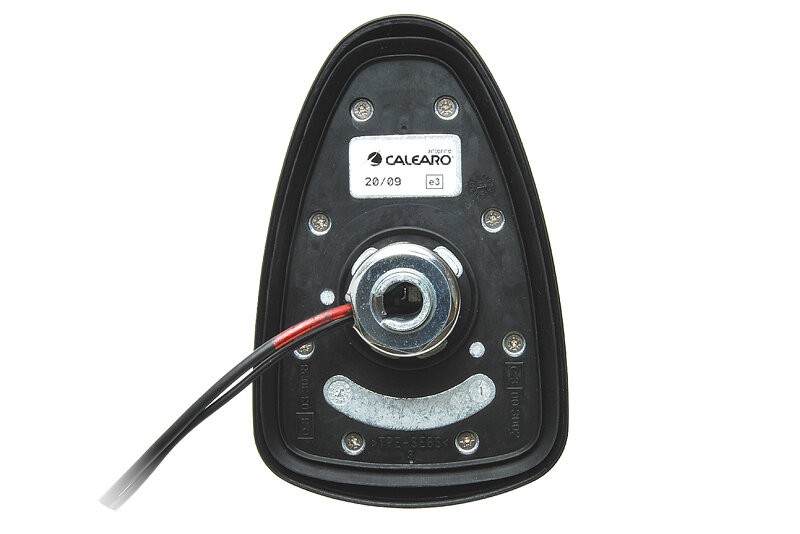

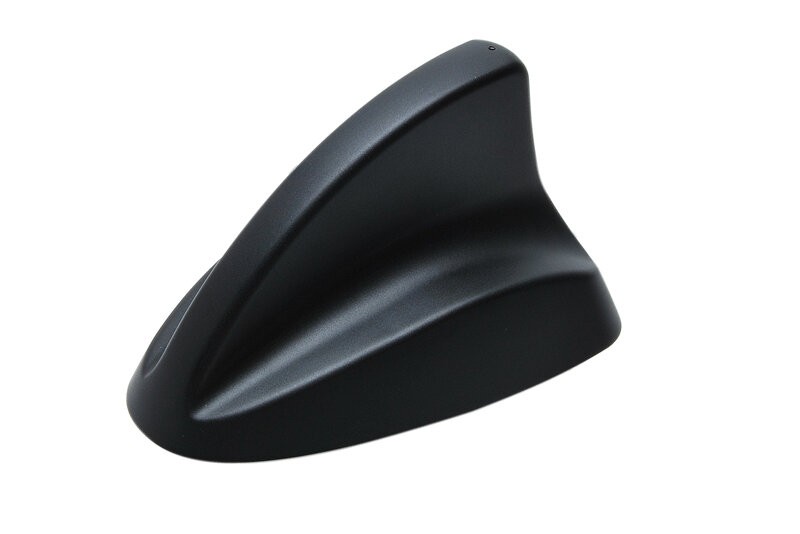

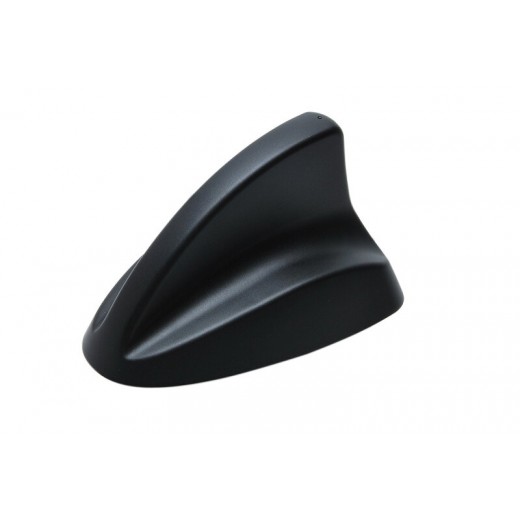

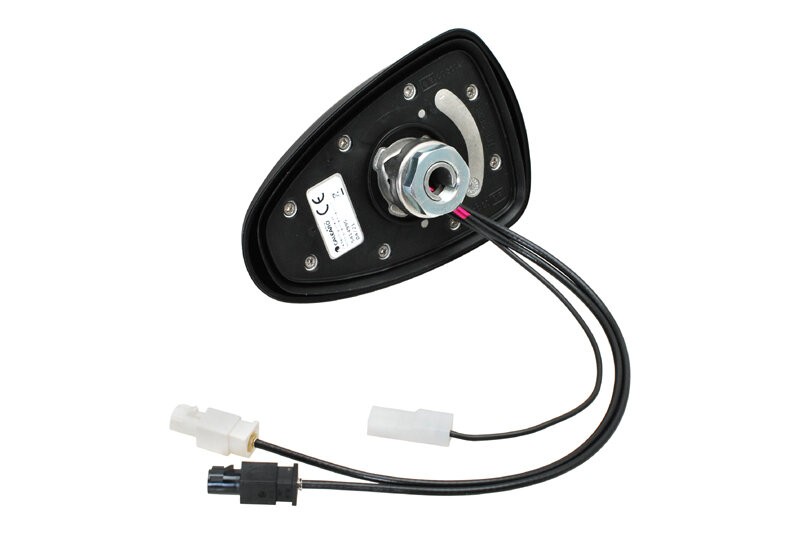

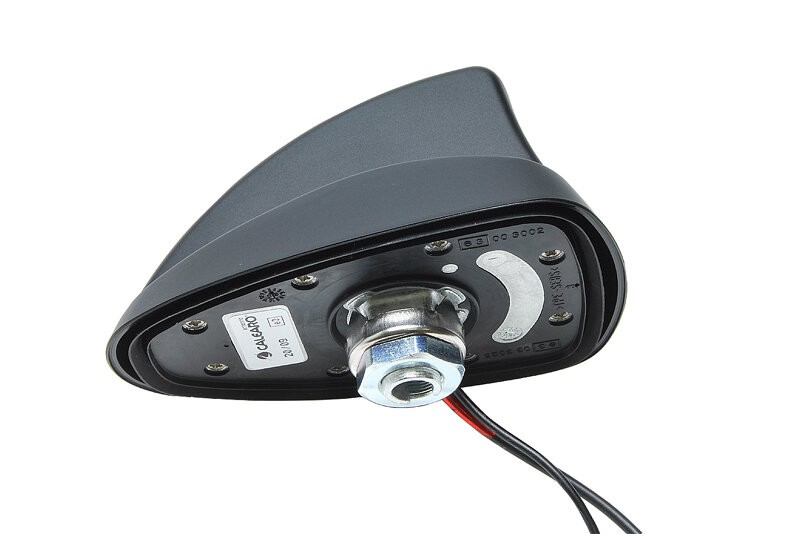

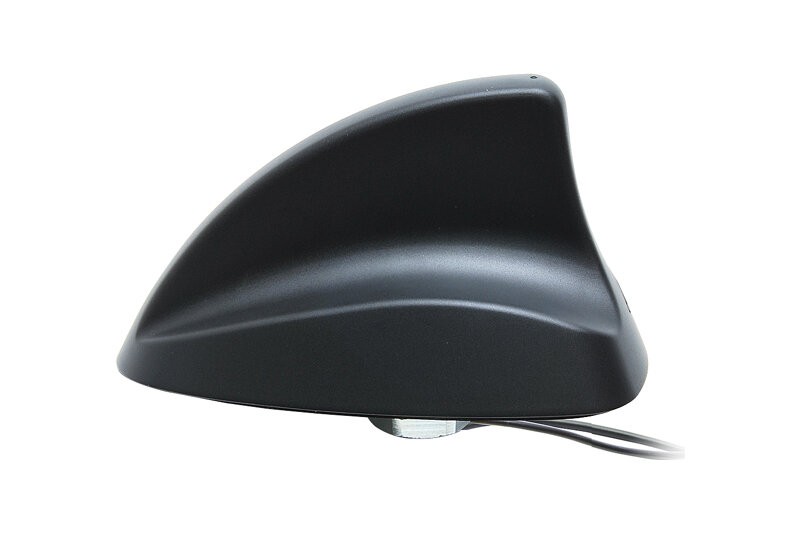

Shark 2 DAB + FM roof antenna
SHARK 2 COMBI RADIO - roof antenna for receiving AM/FM - DAB/DAB+ broadcasting to the rear part of the roof, with amplifier.
Key properties
- Consumption: 50 mA (max)
- Impedance: 50 ohms
- Black colour
- Protection: IP68
- Dimensions: 11.7 x 7.6 x 6.2 cm (L x W x H)
- Body hole diameter: circular 19 mm / square 15 x 15 mm
AM / FM part
- AM/FM frequency range: 0.52 - 1.71 / 88-108 MHz
- Phantom and separate power supply: 12 V
- Cable length at the antenna: 25 cm
- Cable: RG174
- Packaging without antenna lead
- Antenna connector: FAKRA male white
DAB part
- Frequency range: 174 - 240 MHz (III band)
- Phantom and separate power supply: 12 V
- Cable length at the antenna: 25 cm
- Cable: RG174
- Packaging without antenna lead
- Connector: FAKRA male black
- Gain: 2dB
- VSWR: <3:1
Use
On the roof of cars or trucks, can be used as a replacement for the original antenna. If a different type of connector is required on the side of the connected device, it is possible to use one of the reductions or replace the cable.Suitable for cars
- Universal use
- Alfa Romeo 145
- Alfa Romeo GT
- Audi A3
- Audi A6 Avant (-> 2001)
- Audi A4 Avant (-> 2001)
- Citroen Xsara
- Citroen C2
- Citroen C3
- Citroen C5 Estate
- Daewoo Nubira Combi
- Daewoo Tacuma
- Fiat Stilo
- Fiat Idea
- Fiat Panda II (2003 -> 2012)
- Lancia Libra Combi
- Lancia Ypsilon (2004 ->)
- Lotus Elite
- Lotus Esprit
- Mazda 323 (1999 ->)
- Mazda3
- Mazda 6 I. [GG][GY](2002 -> 1/2008)
- Mitsubishi Outlander II. (2007 -> 2012)
- Nissan Micra
- Nissan Almera
- Nissan Primera
- Opel Omega Caravan
- Opel Zafira
- Opel Vectra
- Opel Meriva
- Opel Speedster
- Peugeot 307
- Renault Clio (2001 ->)
- Renault Megane II
- Renault Scenic II
- Seat Aroza
- Seat Ibiza (1998 ->)
- Seat Cordoba (1998 ->)
- Seat Toledo (1998 ->)
- Seat Leon
- Seat Altea
- Skoda Fabia I
- Skoda Fabia II
- Skoda Octavia I
- Skoda Octavia II
- Škoda Superb I
- Škoda Superb II
- Too bad Yeti
- Toyota RAV4
- Toyota Corolla (2002 ->)
- Toyota Yaris (2003 ->)
- Toyota Prius
- VW Lupo
- VW Polo
- VW Golf III IV
- VW Corrado
- VW New Beetle
- VW Bora
- VW Passat (1993 ->)(1997 ->)
- Volvo V40
Note:
In order to connect to the OEM (original) antenna lead, it may be necessary to use a cable reducer in some cars.
Because of the short rod, reception of FM broadcasts may be limited in areas with a weaker signal.
This product replaces antenna 7677937.
| Catalog number | 7677815 |
| Brand | Calearo |
| Links | Official web presentation |
