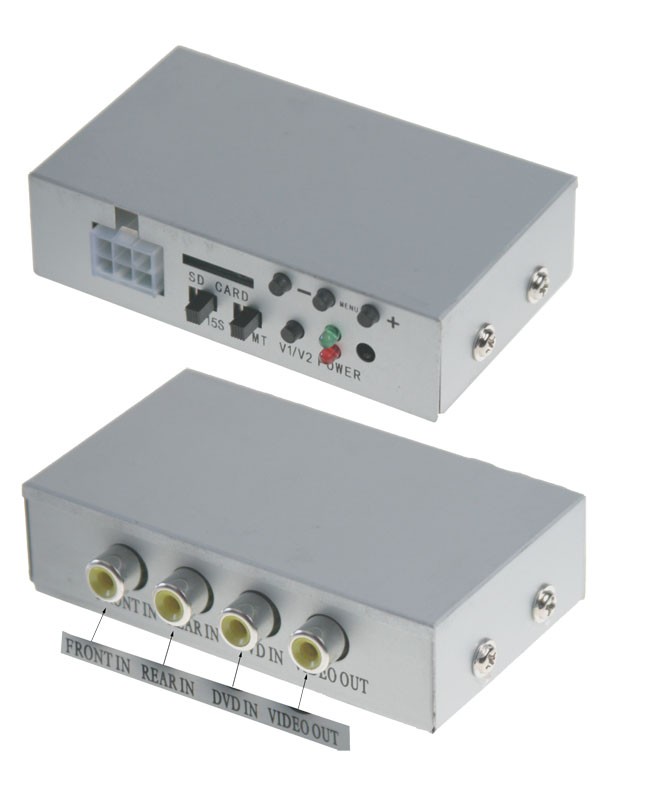

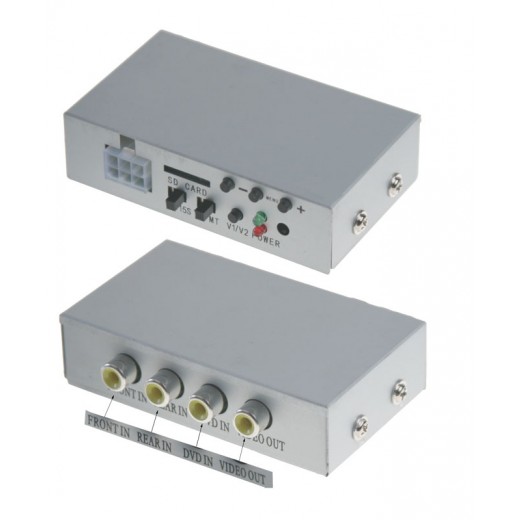

Black box with image recording from two cameras
A car black box is a device that monitors and records important data about the car's driving and keeps it in case of an accident. It typically monitors and records the image in front of and behind the car, the time and date, and displays them on a monitor or car radio display. The reversing and front cameras are used, which are still displayed on the monitor or car radio. It is possible to simultaneously record data from up to two cameras. If the vehicle is involved in an accident or collision, the event is marked and saved on the micro SD card. Subsequently, it is possible to analyze the data, find the causes, play the scenes. Videos are continuously recorded from the moment it is turned on. If the micro SD card is full, the oldest records are overwritten by the latest ones. The device is also equipped with a shock sensor, which is active even after the activation voltage is turned off, and starts recording when the vehicle is disturbed. Recording maximum 30 frames per second, 2 channels. Possibility to set the length of the recording after leaving the vehicle 10 / 15 seconds.
Technical parameters:
- recording resolution max HD (720 x 576) / D1 (720 x 480) / QVGA (320 x 240)
- supply voltage: 12 V
- recording in cycles of 3 min.
- dimensions: 85 x 55 x 23 mm.
- PAL/NTSC format
- 2x CINCH video input + camera power connector
- 1x video input for connecting an external device such as a DVD
- 1x CINCH video output (direct display from cameras / DVD or recording playback)
- micro SD card up to 32 GB min. CLASS 10
- video format: AVI
- remote control
- device activation within 8 seconds
Package contents:
- activation cable to display the reversing camera
- activation cable for activating the monitor, radio display
- (cameras are not included!)
Catalog number | DVR2FR |
Brand | Stualarm |
