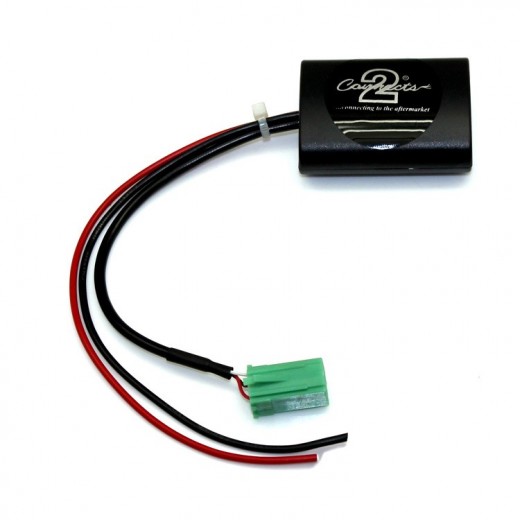

Bluetooth audio adapter Connects2 BT-A2DP REN

Bluetooth audio adapter Connects2 BT-A2DP REN

The Bluetooth audio adapter for Renault vehicles enables the wireless transmission of music from a mobile phone to the vehicle's original radio. Music transmission up to a distance of 5 m from the receiver. Compatible with mobile phones, tablets, MP3 players, etc. with Bluetooth function.

Suitable for cars

• Renault Clio III. [BR] (May 2005 -> October 2012)
• Renault Espace IV. [JK0 / 1] (2005 -> 2011)
• Renault Kangoo I. [KC0/1] [FC0/1] (2005 -> Jan 2008)
• Renault Laguna II. [BG0/1] [KG0/1] (March 2001 -> 2006)
• Renault Megane II. [BM] [BC] (November 2002 -> May 2009)
• Renault Scenic II. [JM] (June 2003 -> January 2009)
• Renault Trafic II. (March 2001 -> 2011)
• Renault Twingo II. [CN0] (March 2007 ->)
• Renault Modus [JP] (September 2004 -> December 2012)
• Renault Master II. (2005 -> 2010)

Technical data of the bluetooth adapter

• Bluetooth: version 3.0.
• Bluetooth protocol: HFPV1.5, A2DPV1.2, AVRCPV1.4 HSP1.2, GAVDP1.2 IOP.
• Current consumption: <25 mA.
• Power supply: 12 V.
• Range: min. 5 m.
• Sensitivity: -80 dBm <0.1% BER.
• Frequency range: 2.4 GHz-2.480 GHz.
• Audio performance: SBC Decode.
• Audio SNR: >= 75dB.

Note:

• In the radio menu, there must be an option to select the music source via AUX IN. For some radios, this option can be enabled via diagnostics. For original radios that already include Bluetooth, this must be turned off.
