Brax Matrix ML6P speakers
The BRAX MATRIX range of loudspeakers has been synonymous with unrivaled sound and quality for years. With this in mind, the focus of the further development of the 6.5" / 165 mm woofers had to be built on the most modern technologies and sophisticated materials to meet the demands of the BRAX brand - pure and accurate sound reproduction. The unique "Microsphere" coating on the ML6P membrane ensures exceptional reproduction accuracy sound. This patented technology embeds ceramic hollow spheres with a diameter of only 75 µm into a polyamide layer that is applied to the diaphragm. A special surface treatment guarantees perfect internal damping without adversely affecting the weight of the diaphragm. This innovative coating increases the rigidity of the hand-picked diaphragm and allows the bass speaker play with a more dynamic and accentuated range.When it comes to design and technology, the BRAX philosophy continues without exception.The subtle, rare appearance reveals a number of clever details, such as a solid stainless steel phase canopy for improved off-axis response and further reduced compression effects, perfectly linear magnet structure for the lowest possible distortion, multiple vented voice coil for high handling performance as well as a rigid and aerodynamically efficient die-cast basket. Used as a low frequency provider, the ML6P completes audiophile sound concepts that are exclusively designed for authentic music reproduction and enjoyment. As with every MATRIX product, each speaker set receives its own unique serial number, which is recorded in our service database. The exclusive wooden box packaging once again emphasizes the high-end character of BRAX. An optional stainless steel mounting ring kit including grill (MR6) is also available. The solid stainless steel ring can be used as either a mounting ring or a grill support ring depending on your mounting position.
Main features of Brax Matrix ML6P speakers

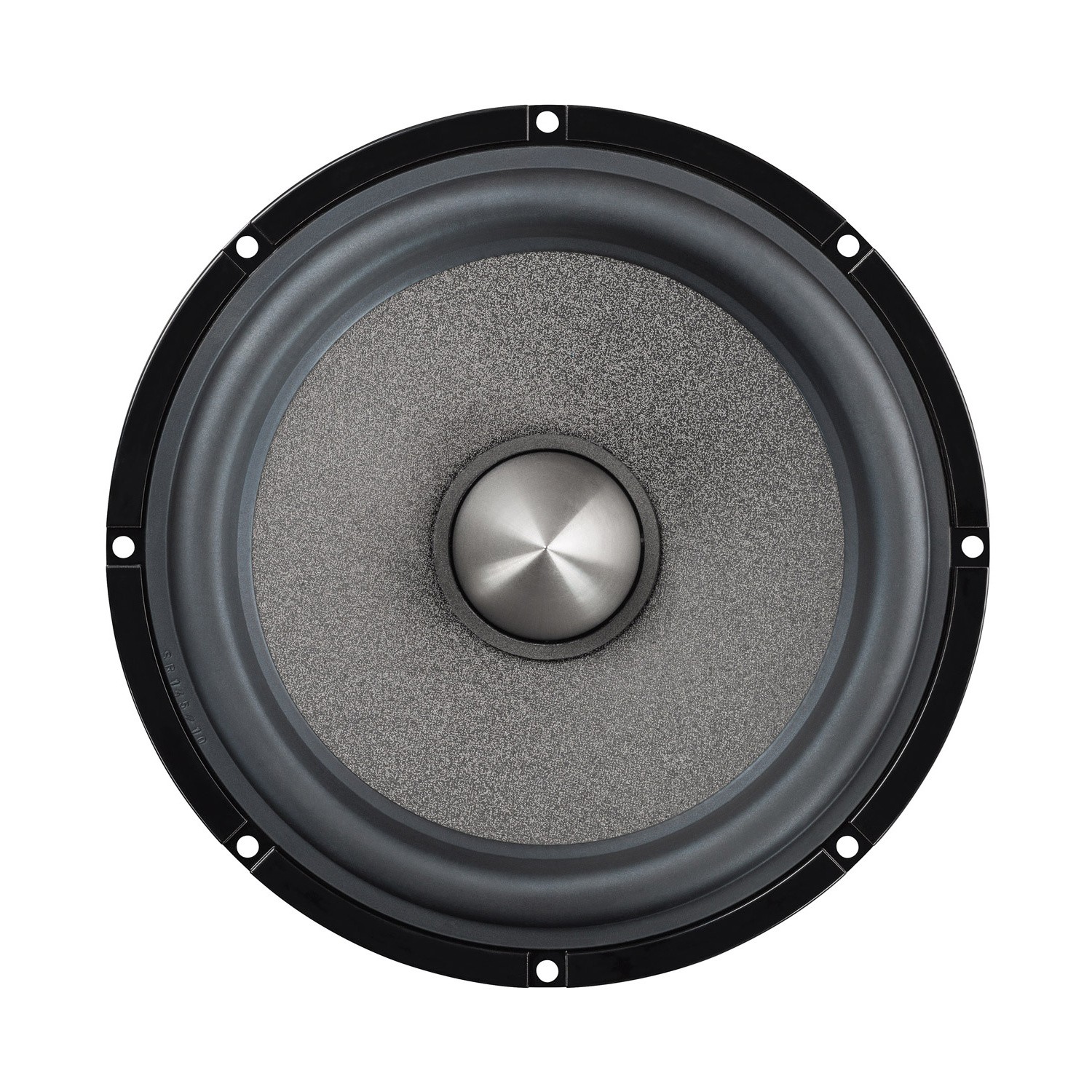

- A very stiff and light paper diaphragm with a unique "MicroSphere" coating consisting of microceramic hollow spheres embedded in a polymer layer offers the best possible impulse response without any sonic coloration.

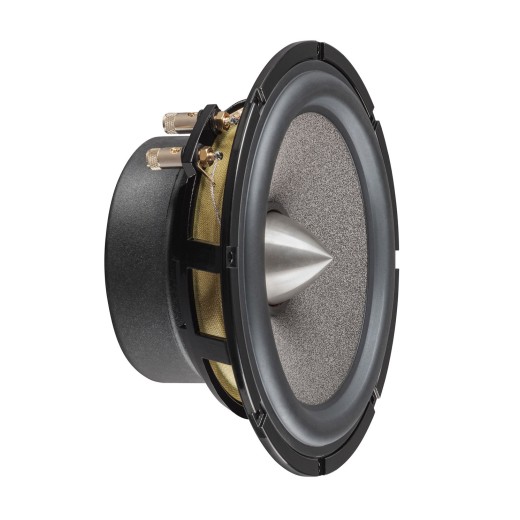

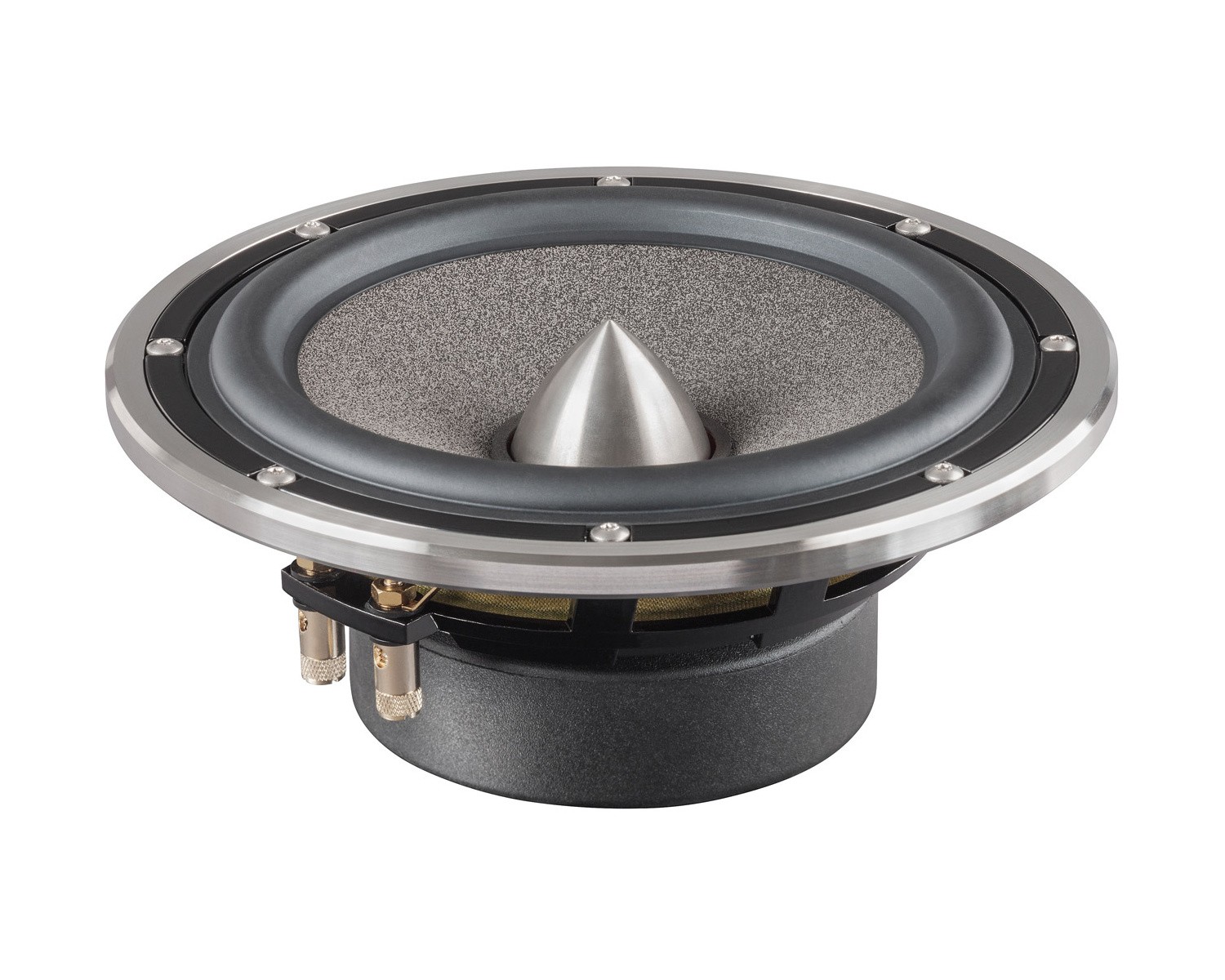

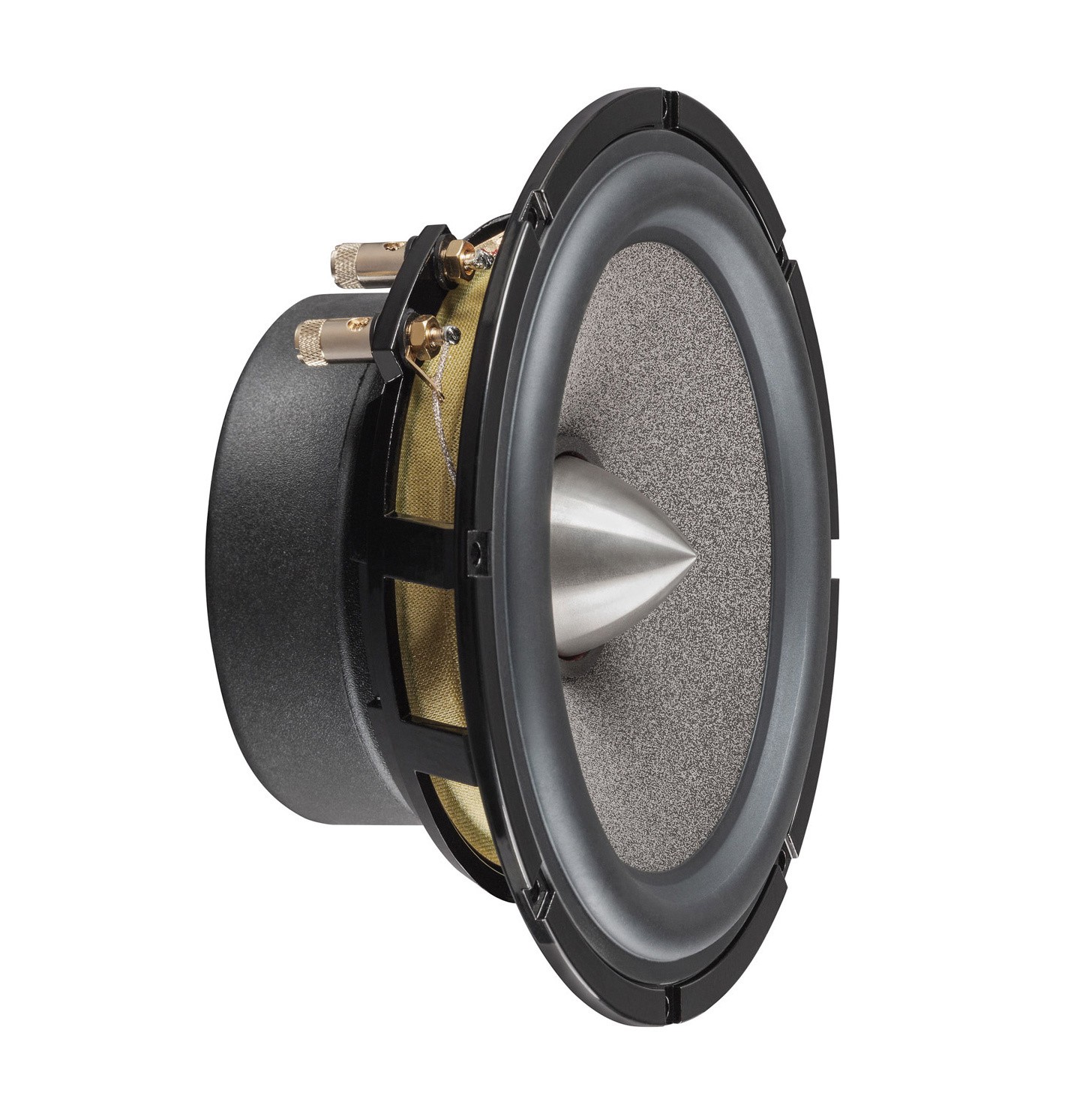

- A solid stainless steel phase canopy improves off-axis response and further reduces compression effects.
- Specially shaped rubber edge for long linear movement of the membrane.
- Solid, 24k gold-plated tips for maximum conductivity.
- Aerodynamically shaped aluminum die-cast basket with optimized voice coil ventilation.

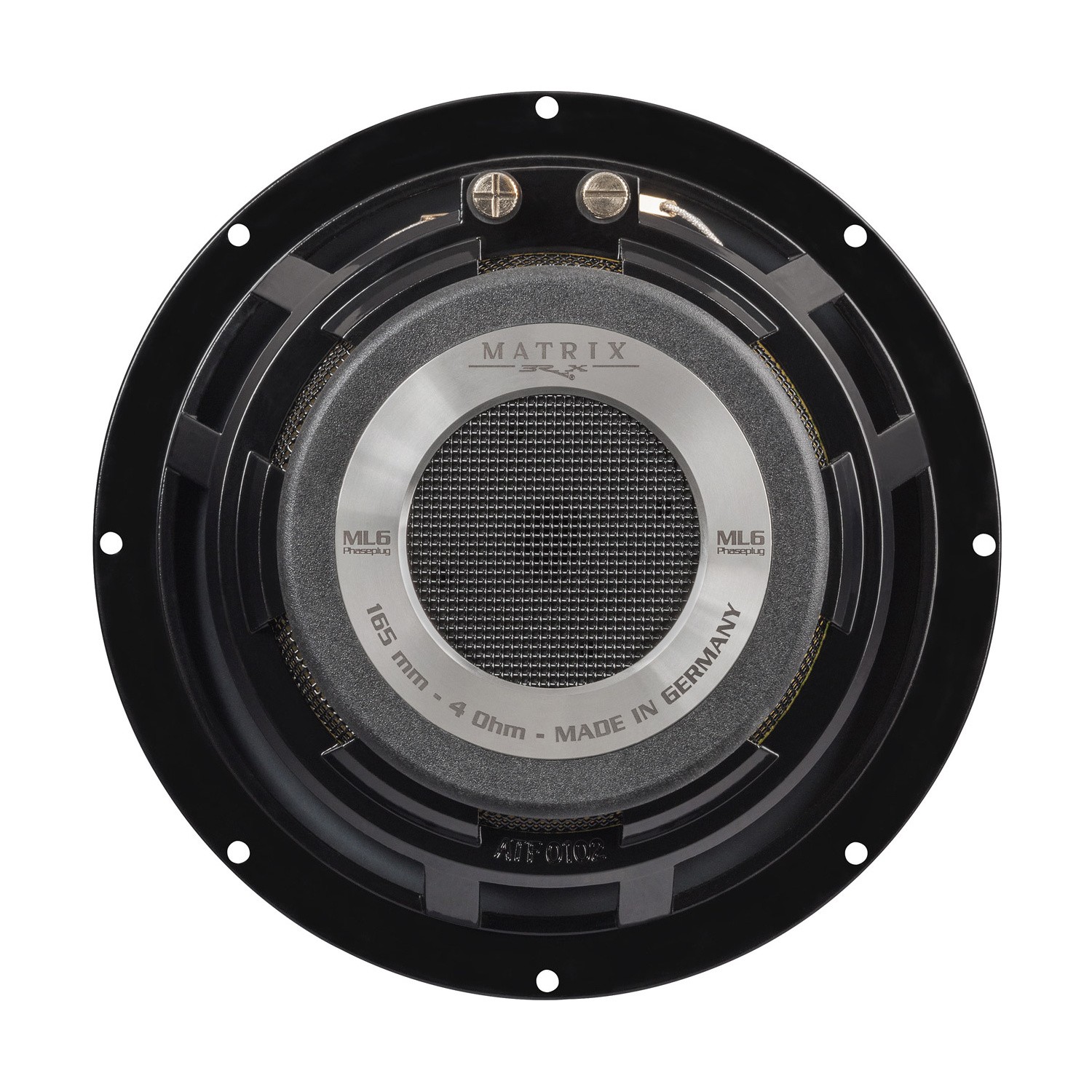

- Ultra-precision machined magnetic system for the highest linearity of magnetic flux.
| Catalog number | BRAX MATRIX ML6P |
| Brand | Brax |
| Links | Official web presentation |
| Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection. | Středobasové |
| RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged! | 120 W |
| Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged! | 170 W |
| Sensitivity (SPL 1W/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume. | 88 dB |
| ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm. | 4 Ω |
| Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural. | 40 - 4000 Hz |
| The diameter of the mid-bass speakerWe state the diameter of the speaker as the diameter of the entire speaker, not including the mounts, when smaller speakers (87, 100, 130 mm) have extra mounts. Some speakers are oval and there the dimension is given in inches, always the shortest side to the longest side. One inch is approx. 2.5 cm. | 165 mm |
| Mid-woofer diaphragm materialThe material that was used for the speaker diaphragm. Don't be afraid of the paper, it surprisingly has a very natural and high-quality sound and, thanks to the surface treatment, it can withstand moisture without any problems. | Papír |

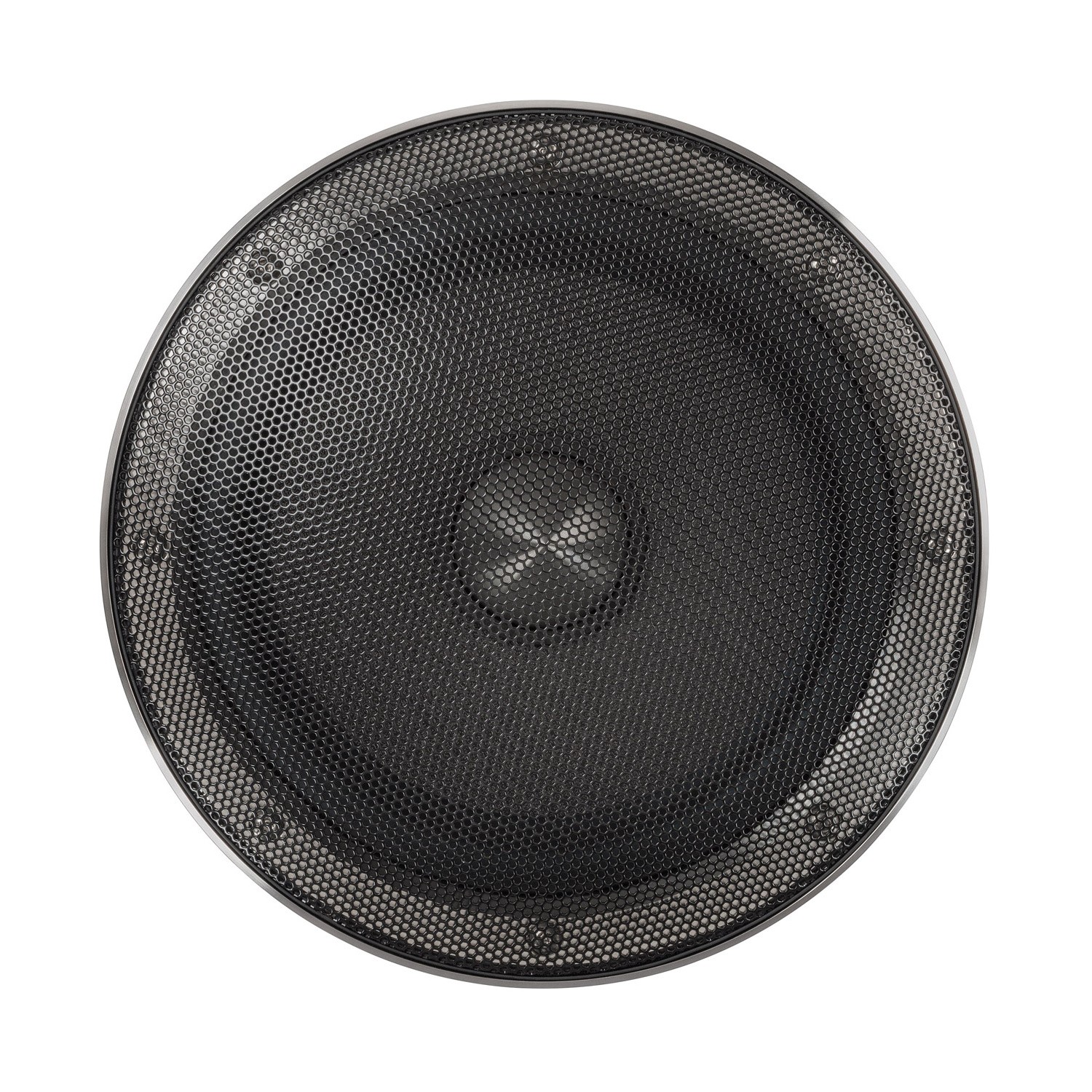

| Cover grids included in the packageOriginal cover grilles in speaker packaging. | Ano |
| Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover. | Pár |
