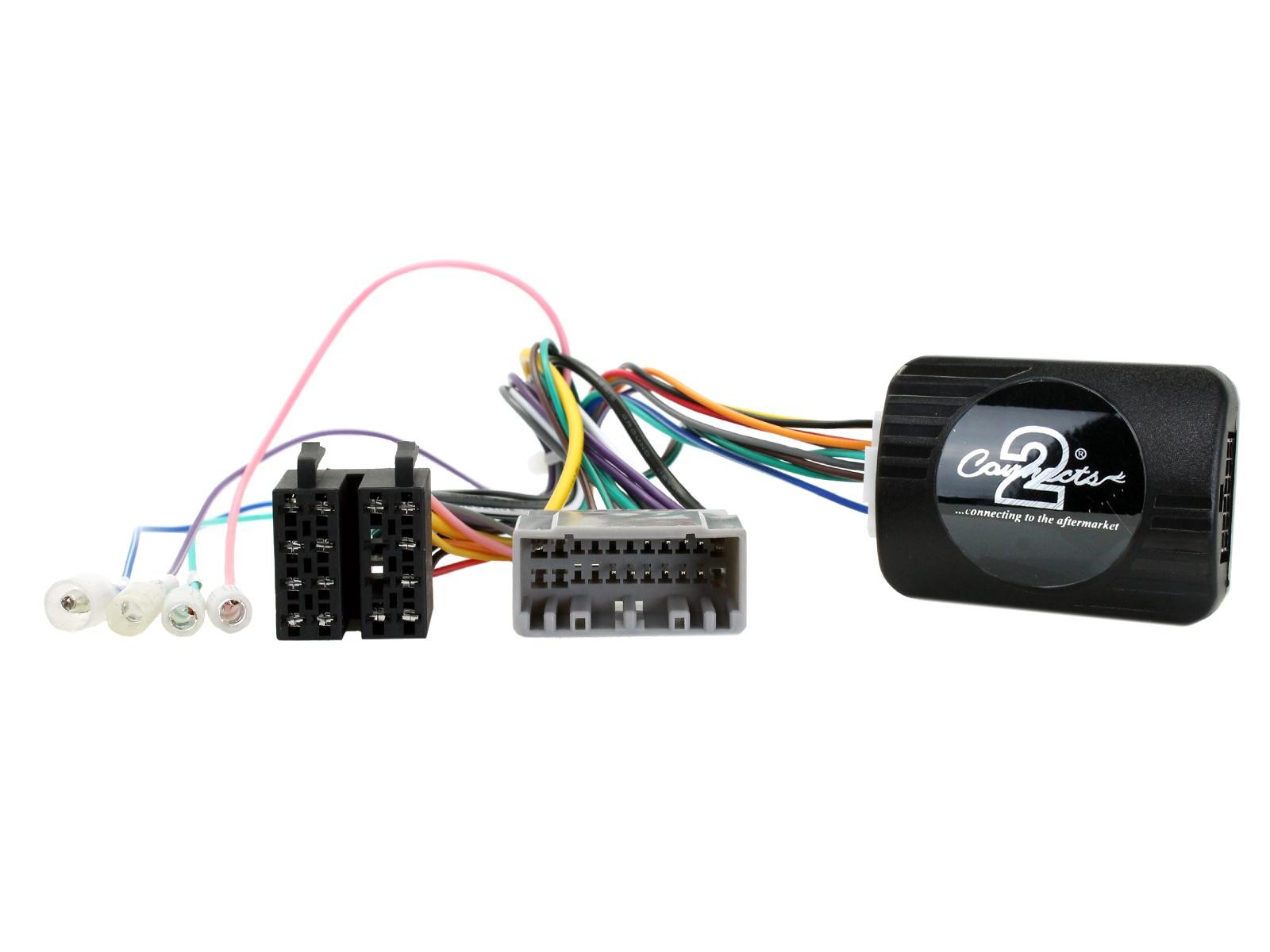

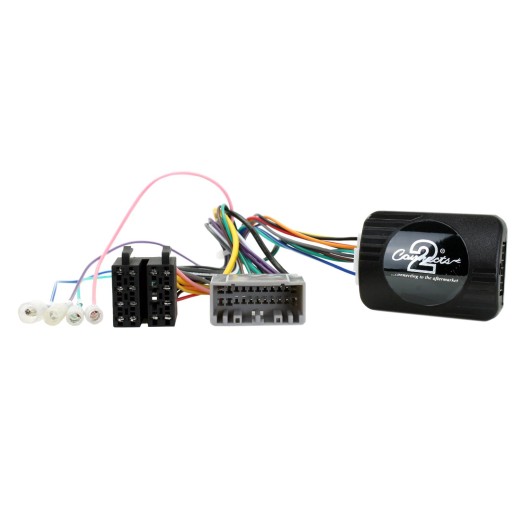

Chrysler / Dodge / Jeep Connects2 Steering Wheel Button Control Adapter CTSCH003

Chrysler / Dodge / Jeep steering wheel adapter

Adapter for activating the control buttons on the steering wheel when buying an aftermarket car radio with an ISO connector (included in the adapter) for vehicles:

• Chrysler 300C (2004 -> 2008)
• Chrysler 300 M [LR] (2002 -> September 2004)
• Chrysler Aspen (2007 -> 2008)
• Chrysler Concorde (2002 -> September 2003)
• Chrysler Neon (2002 -> 2008)
• Chrysler Pacifica (2004 -> 2008)
• Chrysler PT Cruiser [PT] (2002 -> 2005)
• Chrysler Sebring [JS] (2002 -> 2008)
• Chrysler Stratus (January 2001 -> December 2006)
• Chrysler Town & Country (2001 -> 2007)
• Chrysler Voyager (2001 -> 2008)
• Chrysler Grand Voyager (2001 -> 2008)

• Dodge Avenger (2007 -> 2008)
• Dodge Caliber (2006 -> 2008)
• Dodge Caravan (2001 -> 2007)
• Dodge Dakota (2002 -> 2008)
• Dodge Durango (2002 -> 2008)
• Dodge Grand Caravan (2001 -> 2007)
• Dodge Charger (2006 -> 2008)
• Dodge Intrepid (2002 -> 2008)
• Dodge Magnum (2005 -> 2008)
• Dodge Neon (2002 -> 2008)
• Dodge Stratus (October 2000 -> October 2006)
• Dodge RAM (2002 -> 2008)
• Dodge Nitro (June 2007 -> 2008)
• Dodge Van (2002 -> 2008)
• Dodge Viper (2002 -> 2008)

• Jeep Grand Cherokee [WH] (2005 -> 2008)
• Jeep Commander [XK] (2006 -> 2008)
• Jeep Wrangler II [TJ] (2002 -> December 2008)
• Jeep Wrangler III [JK] (April 2007 -> 2008)
• Jeep Cherokee (2002 -> 2007)
• Jeep Compass (2006 -> 2008)
• Jeep Grand Cherokee (2002 -> 2008)
• Jeep Liberty (2002 -> 2008)
• Jeep Patriot (2006 -> 2008)

Important additional information

• For cars with steering wheel controls.
• Make sure that the car uses the same type of connector for connecting the car radio as on this adapter.
• Designed for aftermarket Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker car radios.
• To fully activate the adapter, it is necessary to order a connecting cable for the given brand of car radio! (see below)

The adapter includes wires with analog signals

• +12 V after turning on the key (vol. 15) - fitted in the ISO connector.
• +12 V after switching on the vehicle lighting - fitted in the ISO connector.
• +12 V after engaging reverse gear.
• Speed pulses.
• Ground (- pole) with the handbrake applied.
