Comfortmat Dark D3 anti-vibration material

Name: Comfortmat Dark D3 anti-vibration material
Brand: Comfortmat
Rating: 4.9545 (66 reviews)

(66 assessment)

Add to FavoritesRemove from favourites

anti-vibration material, 700 x 500 mm, thickness 3 mm, MLF 0.41, weight 3.37 Kg/m²
More about the product

The sale is over

Please choose similar goods from the same category

Comfortmat Dark D3 anti-vibration material

The sale is over

Description and parameters
Comments0
Evaluation66
Category
Assembly

Comfortmat Dark D3 anti-vibration material

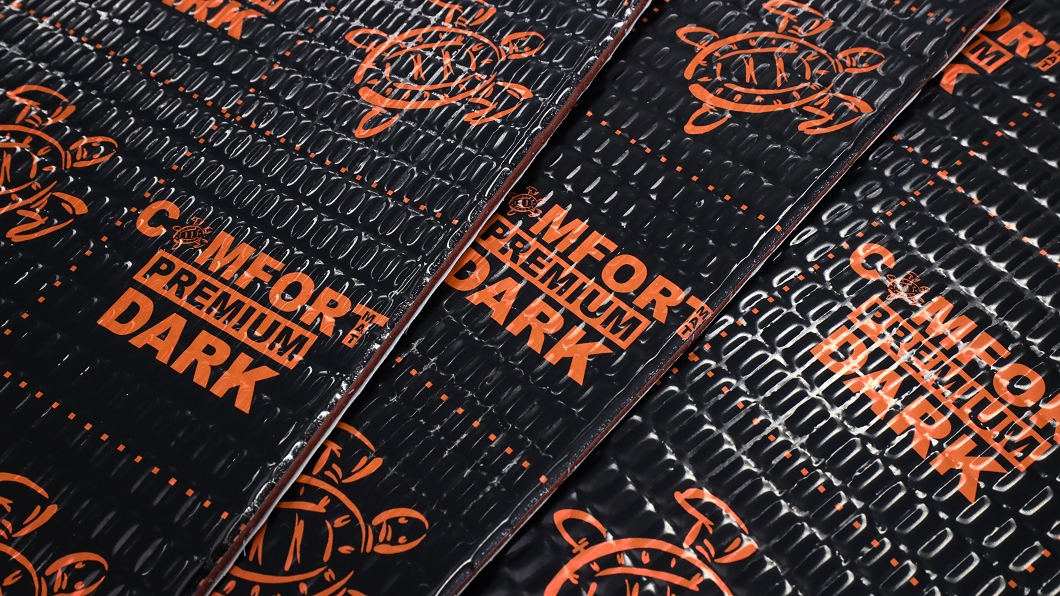

Top anti-vibration damping material Comfortmat of the Dark series, which belongs to the premium materials of the Comfortmat company. It consists of a special self-adhesive butyl rubber layer and aluminum foil with a rectangular pressed structure. The latest Dark model series was completely renewed in 2019 and brings completely unique properties thanks to the highly effective and ultra-light composition of the D-Formula putty. Serial production of anti-vibration materials of the Dark series was possible only after the new multi-stage low-temperature mixing technology of DarkAir was developed. Thanks to this, it was possible to achieve indicators that were unattainable before this time. No other anti-vibration material in the world has such a ratio of material weight to its effectiveness. In Comfortmat, we succeeded in creating a unique material that contradicts itself in many ways - the weight was significantly reduced and at the same time the acoustic loss factor increased to previously unattainable values. Like all Comfortmat materials, the Dark series stands out for its high adhesion to metal, resistance to water, moisture and oils, has anti-corrosion properties and, thanks to its resistance to extreme temperatures, retains the same properties in summer and winter.

Unique technology of the Dark model series

The Comfortmat of the Dark series is exceptional thanks to the already mentioned multi-stage DarkAir low-temperature mixing technology. This enables a material weight reduction of up to an incredible 40% and at the same time an increase in efficiency. The materials of the Dark series also have a special aluminum foil, the production process of which uses the HotAL II double heat treatment technology. This guarantees increased rigidity of the film while maintaining excellent flexibility during work. The new inFliz technology for simple application of the butyl mixture on aluminum foil allows for the complete absence of air between the layers and, thanks to a more even distribution over the entire surface, significantly improves the properties of the materials. The new design with a 5 x 5 cm grid helps in cutting the material, facilitates installation and also protects Comfortmat products from counterfeits.

The main properties of the anti-vibration material Comfortmat Dark D3

Premium ultra-light anti-vibration material with a thickness of 3 mm, which significantly reduces vibrations and resonances.
Reduced weight by up to 40% thanks to DarkAir multi-stage low-temperature mixing technology.
An excellent weight-to-performance ratio that no other material offers.
High adhesion, resistance to water, moisture, oils and anti-corrosion properties.
The same properties in winter and summer thanks to high resistance to extreme temperatures.
HotAL II technology for increased rigidity of the aluminum foil while maintaining high flexibility during application.
Simple installation on all types of surfaces without the need for heating.
The new inFliz technology enables the complete absence of air between the layers of butyl and aluminum foil.
New design in black-orange color with a special grid for easy cutting.

Technical parameters of the anti-vibration material Comfortmat Dark D3

Thickness: 3 mm
Size: 700 x 500 mm
Weight: 1.18 Kg (3.37 Kg / m²)
Acoustic Loss Factor (MLF): 0.41
Adhesion: 10 to 12 N/cm
Stamping: Ingot-M 6 x 12 mm
Color: black-orange
Price for 1 piece

Where to apply the Comfortmat Dark D3 material

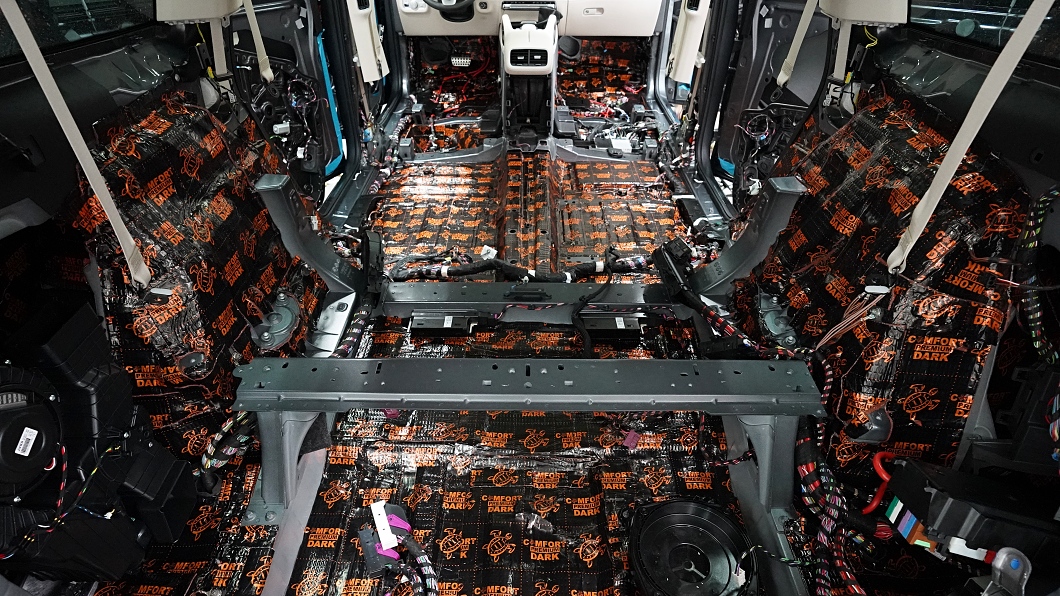

You can apply the anti-vibration material Comfortmat D3 almost anywhere where it is necessary to reduce vibrations and resonances. Due to the thickness of 3 mm and the high acoustic loss factor, the material is particularly suitable for areas with a medium vibration load. Due to their very low weight, anti-vibration materials of the Dark series are especially ideal for soundproofing doors, roofs and other areas where weight plays an important role. They can also be used as the first layer in soundproofing the floor, roof, undercarriage or trunk. In our article " how to choose an anti-vibration material ", you will learn all other information about anti-vibration materials, their use, and the right choice. If you are not sure what materials and in what quantity to use for vehicle soundproofing, use our soundproofing configurator . The most common uses of the Comfortmat D3 anti-vibration material:

Outer door sheet
Floor
Roof
The bottom of the trunk
Fenders
Front wheel arches
Rear wheel arches
Torpedo
Central tunnel
Inner door sheet
Plastic wheel arches
The suitcase lid
Engine bulkhead
Hood

About Comfortmat cushioning materials

The Comformat company has been operating on the market since 2010 and during that time has quickly established itself as a leading global manufacturer of anti-vibration and sound insulation materials. Comfortmat brought new technologies to the automotive industry enabling maximum efficiency, lower material weight, constant efficiency even in extreme temperatures and, last but not least, very easy application. In recent years, Comfortmat has been leading the way in the field of vehicle soundproofing and regularly brings to the market materials with record efficiency and excellent properties that have not been possible to achieve until now. All this is only possible through many years of research in the Comfortmat laboratories, the highest quality control at every stage of production, the modernization of production machines with the involvement of the world's leading experts in the automation of production lines and the creation of a research center equipped with the most modern equipment. Comfortmat's highly qualified experts have extensive scientific and manufacturing experience, regularly perform the necessary physical and mechanical tests, and have expertise in the vibroacoustic properties of cars. Thanks to this, Comfortmat products can meet the most demanding requirements of the current automotive market.

Catalog number	COM D3
Brand	Comfortmat
Links	Official web presentation
Material type	Antivibrační
Thickness	3 mm
Dimension	700 x 500 mm
Weight 1 piece	1,18 Kg
Basis weight	3,37 Kg / m²
Acoustic Loss Factor (MLF)The acoustic loss factor (in English, mechanical loss factor) expresses the ability of the material to absorb propagating sound and change the energy of vibrations created by the sound into thermal energy. The theoretical maximum loss factor is 1, which means no vibration. For example, non-sound-proof steel with a thickness of 1 mm has a loss factor of approx. 0.001 at 200 Hz. Therefore, the higher the loss factor, the better. By combining damping materials, it is possible to significantly increase the loss factor to values approaching 1.	0,41
Adhesion	10 až 12 N / cm
Aluminium foil	HotAl II 100 μm
Water resistance	Ano
Color	Černá s měděným potiskem
Price for	1 kus
Layer order	1. vrstva
