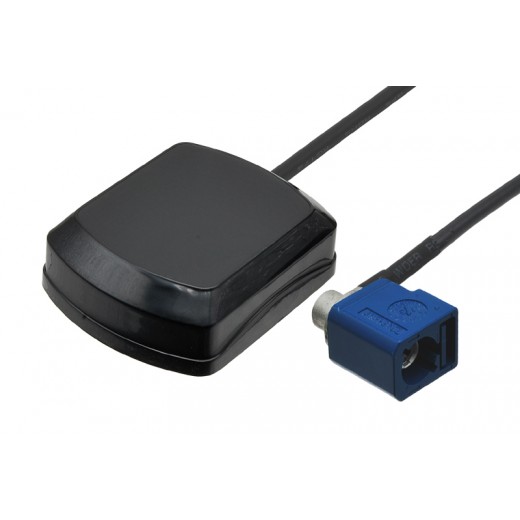

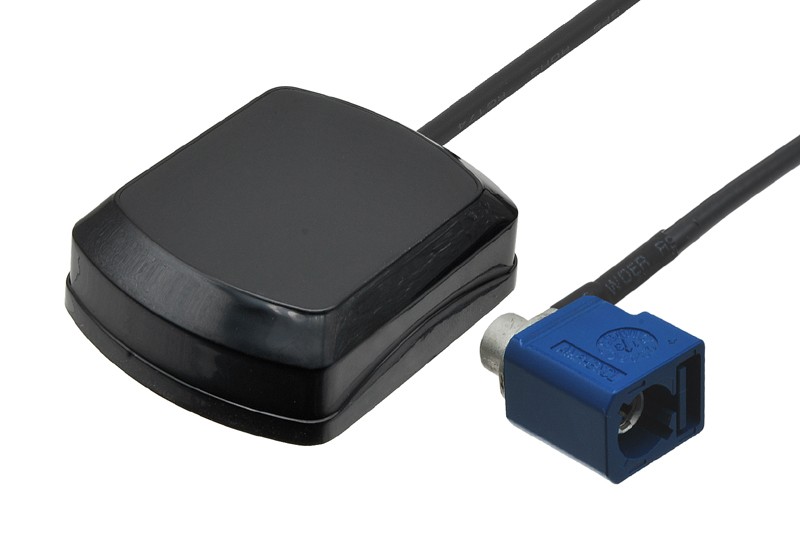

GPS antenna AGP-103 FAKRA

GPS universal, internal, magnetic, active antenna

• GPS frequency range: 1575.42+/-1 MHz
• wavelength: CF-5 MHz
• phantom power: 3.0-5.0V
• gain: 28 dB
• axial ratio: 3 dB (max)
• current consumption: max. 10.5 mA
• polarity: RHCP
• VSWR: < 2
• cable: RG174
• downpipe length: 4 m
• impedance: 50 ohms
• GPS device connector: FAKRA angled 90°
• working temperature: -10°C to +85°C
• protection class: IP65-IP67
• black colour

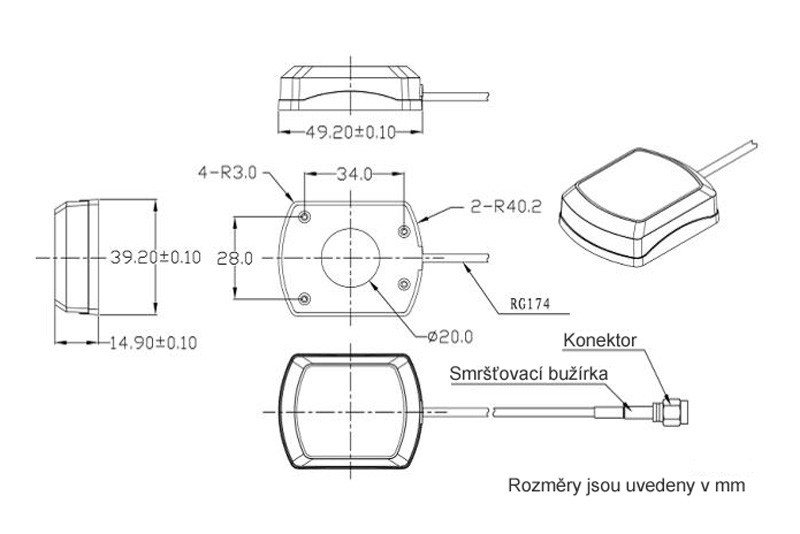

• dimensions: 39.2 x 49.2 x 14.9 mm (W x D x H)
• universal internal on or under the dashboard
• be careful not to shade the antenna with metal parts of the car or metallized glasses.

The GPS antenna is equipped with a connector for the following GPS devices:

• Audi with RNS-E navigation
• Audi A3 with RNS-E / BNS navigation
• Audi A4 with RNS-E / BNS navigation

• Ford with Travel Pilot NX / RX navigation

• Mercedes E-class [W211] with Comand APS / APS 50 navigation
• Mercedes CLK

• VW with navigation MFD2 (RNS2) / RNS300 / RNS500 / RNS510
• VW Golf V
• VW Passat
• VW Jetta
• VW Touran
• VW Touareg
• VW Multivan

• Skoda with navigation Columbus, Nexus, Amundsen
• Skoda Fabia II
• Skoda Roomster
• Skoda Octavia II
• Škoda Superb II
• Too bad Yeti

• Blaupunkt TravelPilot EX
