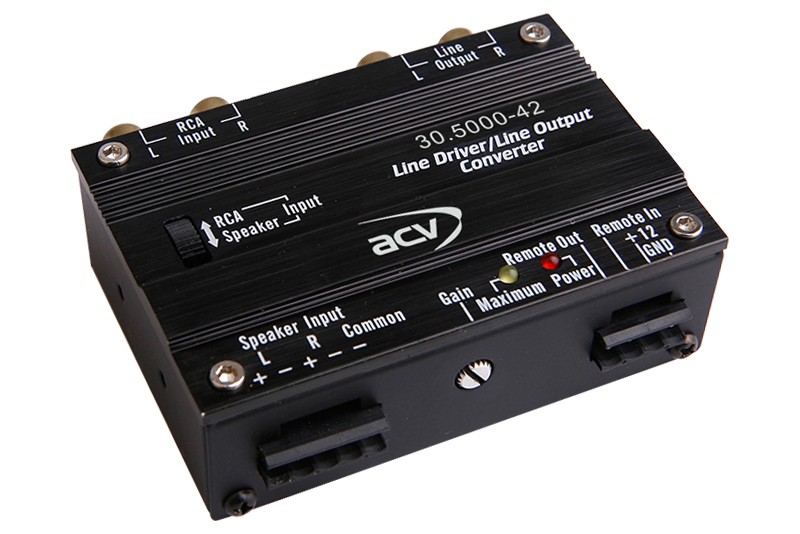

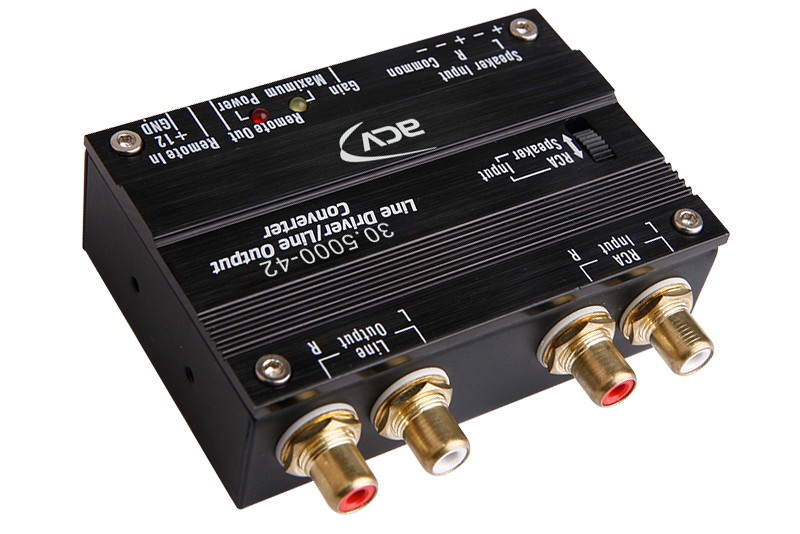

High/low active converter ACV 30.5000-42

2-channel active signal converter for connecting an amplifier to a car radio without NF output (CINCH)

• Car radios with output for re-reductors or with NF output.
• Amplifier with line (CINCH) input.
• Galvanically separated inputs and outputs.
• Digital noise filter.
• Super low distortion.
• Adjust the output level.
• Output signal level up to 10V with low impedance 28 Ω.

Specifications

• Frequency response (-3 dB) 20-20 kHz (-0.4 dB).
• Output impedance 28 Ω.
• Input impedance 180 Ω.
• Max. output voltage at 1.0% THD + N 10.4 V.
• Min. input voltage 9.8 V (speaker) / 0.9 (RCA).
• Max. input voltage 20 V (speaker) / 9.4 V (RCA).
• Signal-to-noise ratio (-94.8 dBA).
• Crosstalk (-64 dB).
• Amplifier switching control: 0.5 A.
• Current consumption 0.6 A.
• Power-on delay : <1 sec.
