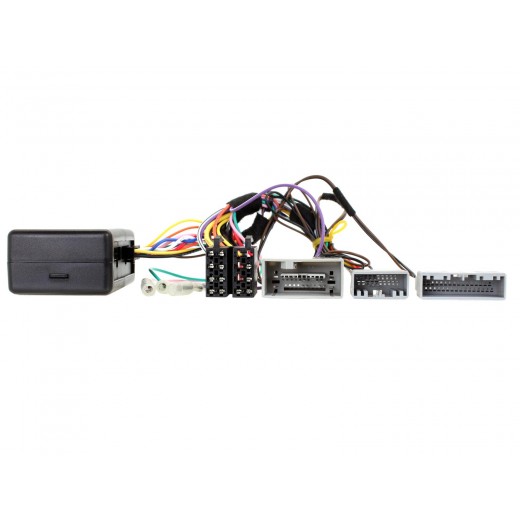

Honda Civic, CR-V Connects2 Steering Wheel Button Control Adapter CTSHO006.2

Honda steering wheel adapter

Adapter for activating the control buttons on the steering wheel when buying an aftermarket car radio with an ISO connector (included in the adapter) suitable for car models:

• Honda CR-V RM1, RM3 (2012 -> 2016)
• Honda Civic Tourer IX (2014 -> 2015)
• Honda Civic IX (2012 -> 2015)

Important additional information

• For cars with steering wheel controls.
• It can only be used in cars with a basic car radio without navigation.
• For cars with an OEM head unit with touch control (Connect / Connect+), it is not possible to set the time.
• For cars with an active audio system (separate amplifier), it is necessary to connect the control of this amplifier (+12 V - blue wire in the ISO connector).
• The adapter allows you to set the date and time on the car's original display using the buttons on the steering wheel.
• The adapter supports the buttons on the steering wheel to control the hands-free kit.
• Designed for aftermarket Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker car radios.

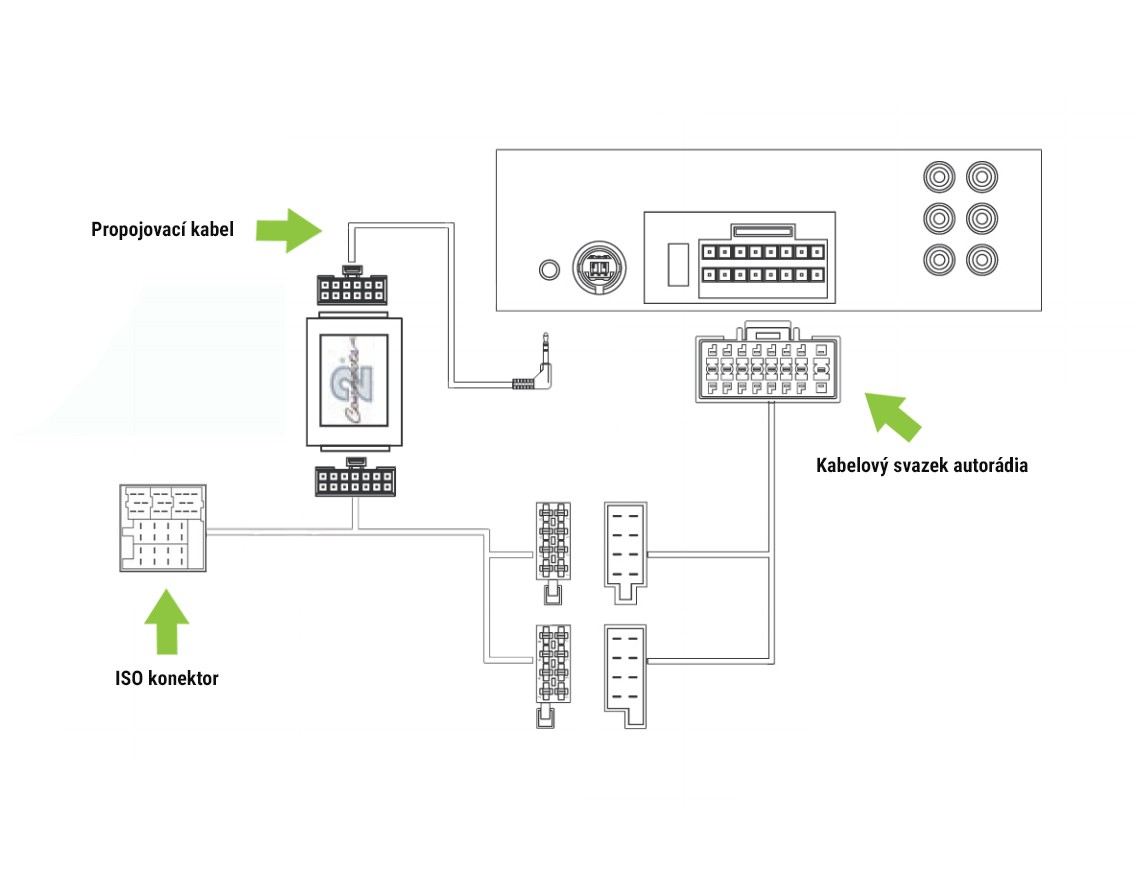

• To fully activate the adapter, it is necessary to order a connecting cable for the given brand of car radio! (see below)

The adapter includes wires with analog signals

• Speed pulses.
• Applying the handbrake.
• +12 V after engaging reverse gear.
