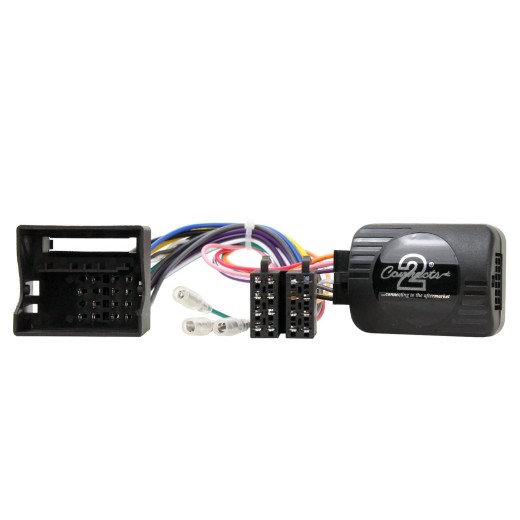

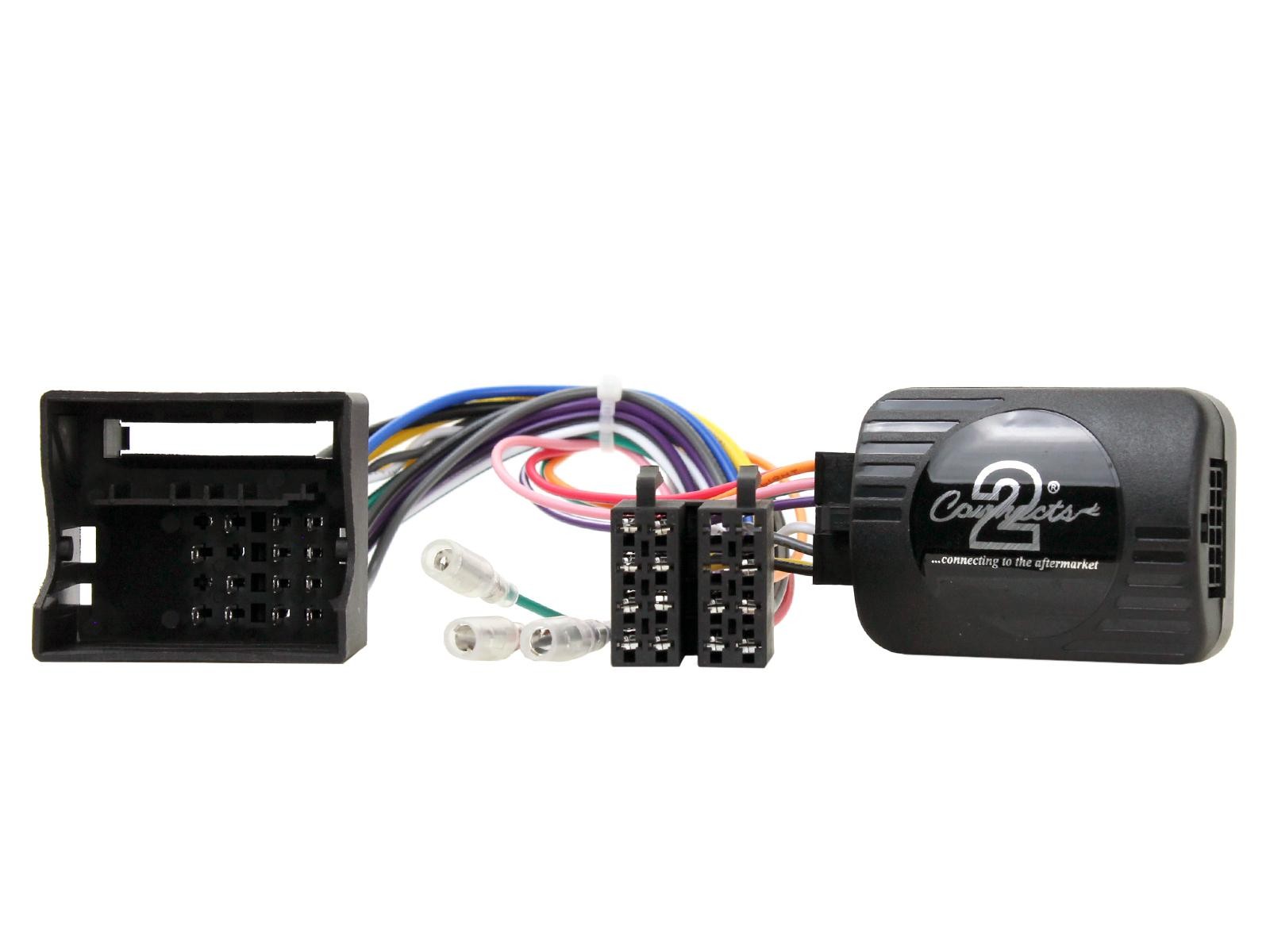

Škoda Connects2 steering wheel button control adapter CTSSK002.2

Skoda steering wheel adapter

Adapter for activating the control buttons on the steering wheel when buying an aftermarket car radio with an ISO connector (included in the adapter) for vehicles:

• Skoda Fabia 5J (2013 -> 2014) - with Grundig car radio
• Škoda Octavia 1Z (2008 -> 2013) - with Bolero car radio
• Skoda Rapid (2012 -> 2015)
• Skoda Superb (2008 -> 2013)
• Skoda Yeti 5L (2009 -> 2014)

Important additional information

• For cars with CAN-Bus control on the steering wheel and FAKRA connector with reinforced power connectors.
• Designed for aftermarket Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker car radios.
• Installation instructions in English can be found under this link .
• To fully activate the adapter, it is necessary to order a connecting cable for the given brand of car radio! (see below)

The adapter includes wires with analog signals

• +12 V after turning on the key (vol. 15) - fitted in the ISO connector.
• +12 V after switching on the vehicle lighting - fitted in the ISO connector.
• +12 V after engaging reverse gear - free wire.
• Speed pulses - free wire.
• Ground (- pole) with the handbrake applied - free wire.
