Universal parking camera (CAM7)

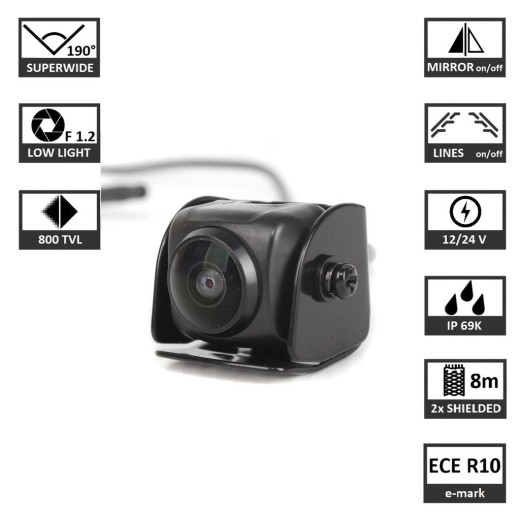

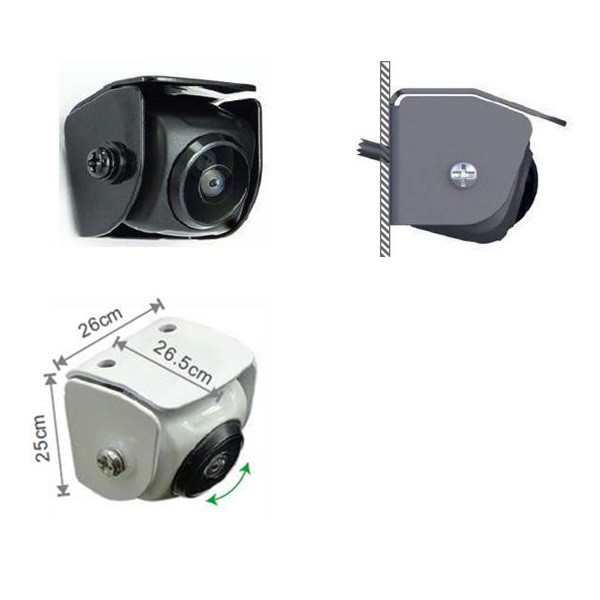

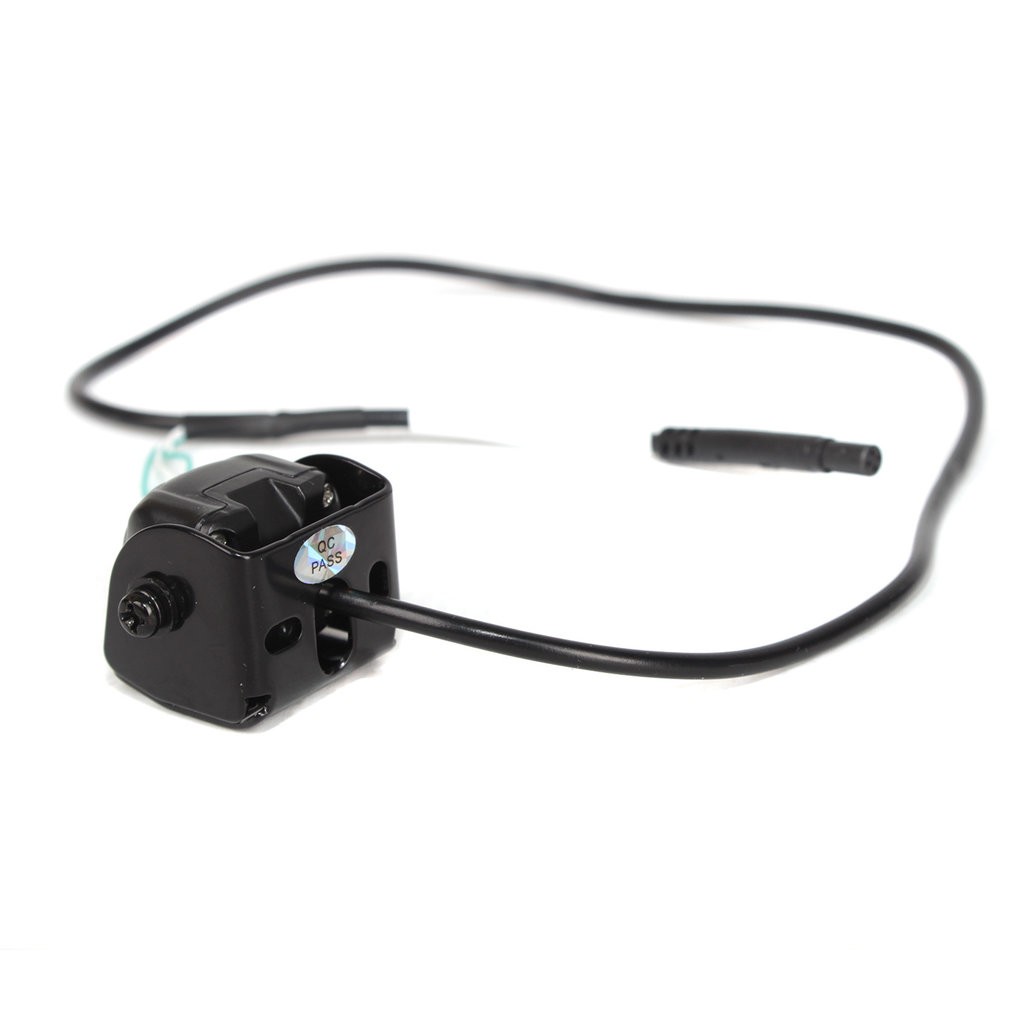

Universal miniature parking camera with 190° angle of view, for outdoor installation IP69K, with 800TVL resolution, use as rear or front, durable metal body, with the possibility of turning on the guide lines and changing the orientation of the left / right side of the image. The tilt of the camera is adjustable, so it can be installed on a horizontal or vertical surface. The camera can also be installed without a holder (by sticking), then it has dimensions of only 21 x 24 x 21 mm. With a real viewing angle of 190°, the CAM7 can see even around the corner. This makes it an ideal solution for vehicles such as transporters, vans/motorhomes or trucks. This camera eliminates dangerous situations in city traffic, it is an invaluable helper for monitoring cross traffic when parking. If it is installed as a front, you can follow the approaching traffic even before you can see the oncoming vehicles through the side window. Narrow streets and dense buildings are no longer scary, and cyclists will also feel safer.
Technical parameters of the camera
- 1/4" low light HD CMOS sensor
- scanning angle: 190°
- image resolution 800 TV lines
- aperture F1.2
- min illumination less than 0.01Lux
- 960x480 effective pixels
- power supply: 12V/24V
- TV system: NTSC
- weather protection: IP69K

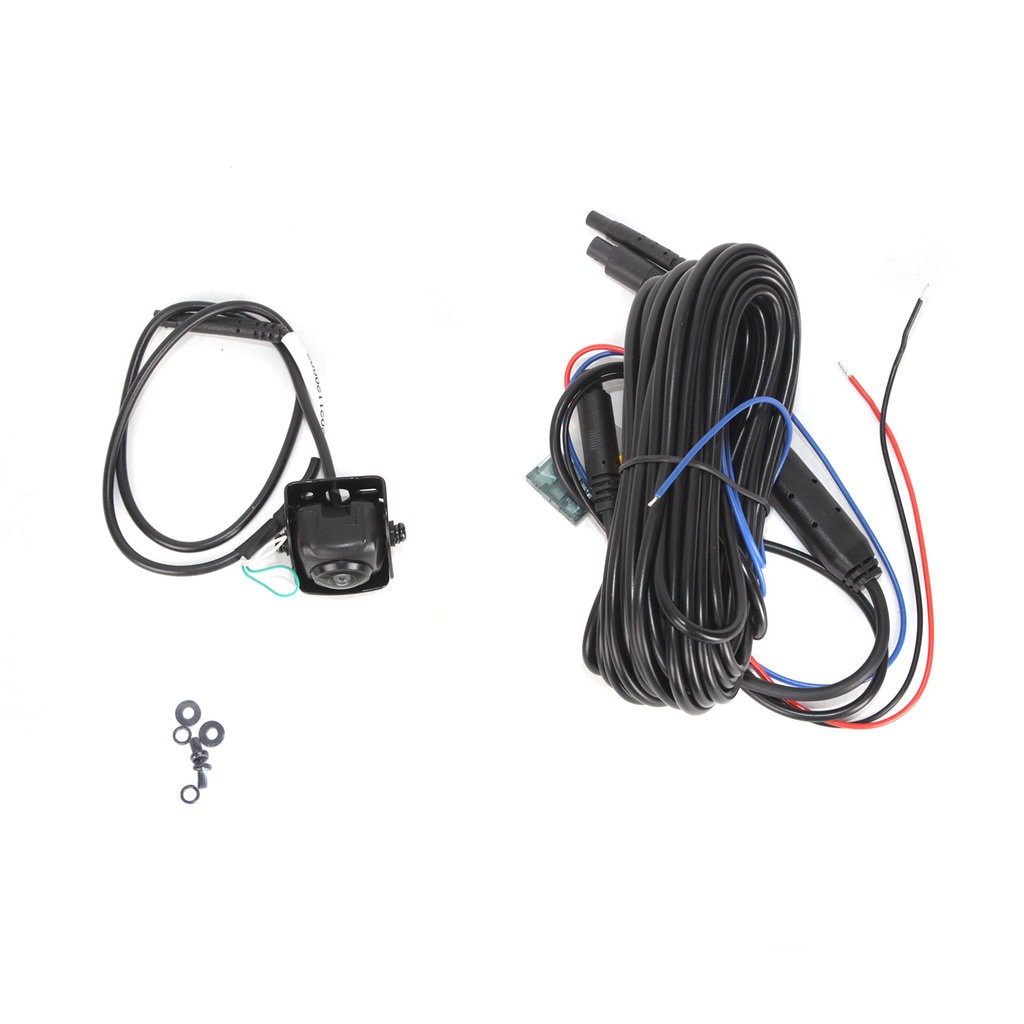

- Cabling
- double shielding
- length 8 m
- terminated with a CINCH connector
- slim connector 5mm

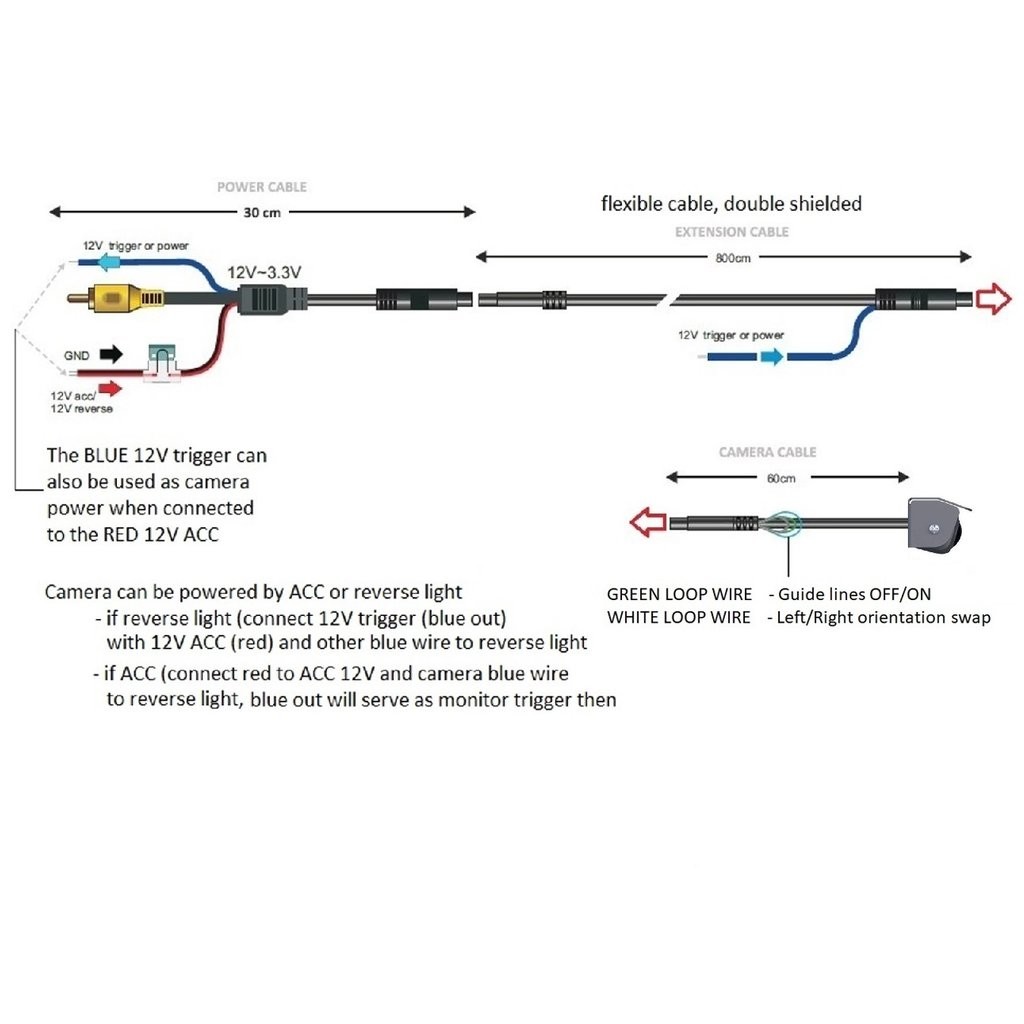

- 2 power connection options
- from the reverse
- from the ignition
- hole for cable 5mm
- Working temperature -35℃ to 85℃
- ECE R10
Functions :
- GREEN LOOP - guide lines - disappear after cutting the loop (they are displayed by default).
- WHITE LOOP - image orientation - left/right sides will change after cutting the loop.
| Catalog number | CAM7 |
| Brand | TSS Group |
