Wireless set TFT7HDW

Wireless set TFT7HDW

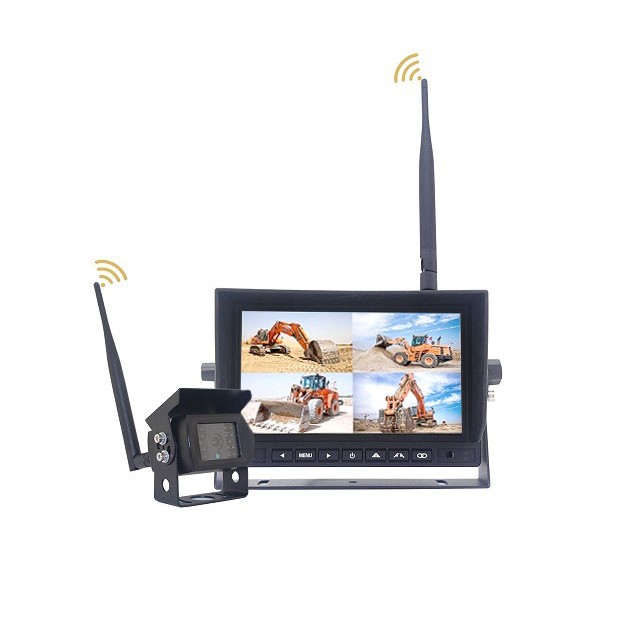

AHD wireless set camera 720p / monitor 7" for the vehicle with a camera with IR illumination. Monitor resolution 1024 x 600, for connecting up to four cameras, simultaneous display of multiple cameras, 12/24 V, possibility to rotate the image by 180°, simple and fast solutions for connecting cameras (such as parking or side cameras, or cameras in the cargo area).

TFT7HDW common technical specifications:

• Maximum range 200 meters in open space
• H264 video compression
• FHSS floating frequency
• Power cable with waterproof connector
• Time delay 120 ms
• Shock resistance min. 4G
• Frequency range 2400 - 2483.5 MHz
• Power supply DC 12 - 24 V
• Operating temperature from -20 to +70 °C

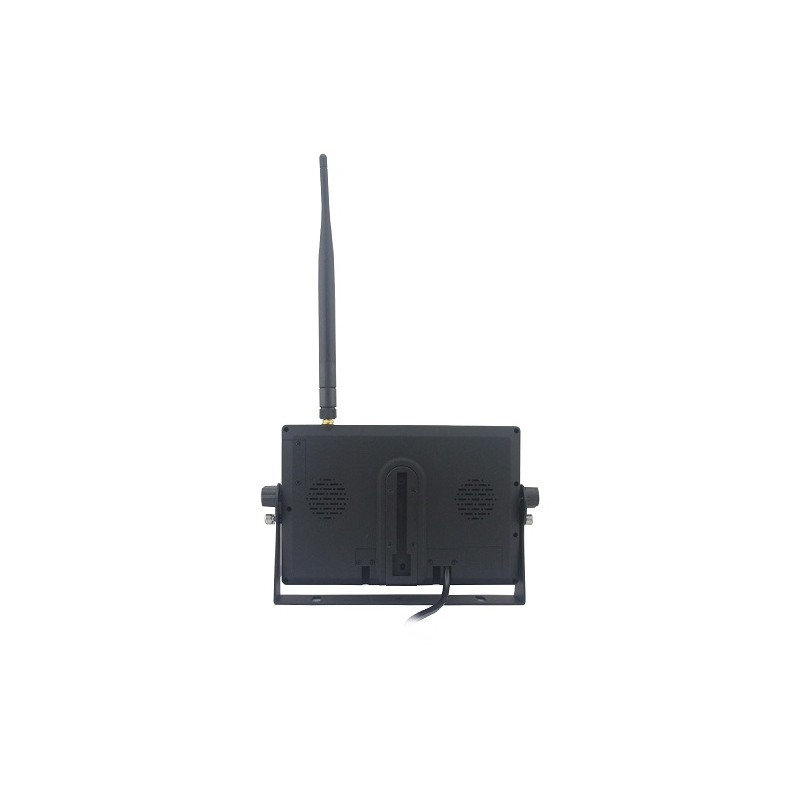

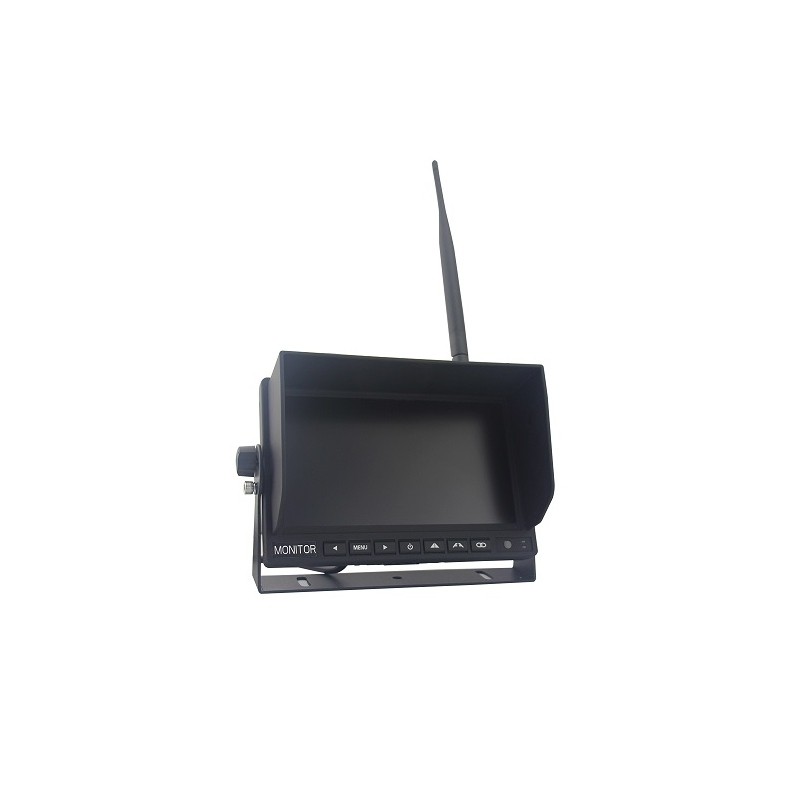

Technical specifications of the TFT7HDW monitor:

• Diagonal 7" image 16:9 IPS panel
• Display resolution 1024 x 600 RGB
• AV input 4x HD wireless video input
• Simultaneous display function of 4 cameras - 4SPLIT
• Display option - 1 camera, 4 cameras
• Setting the image orientation (left, right, up, down)
• On/off guide lines - yes
• Backlit buttons
• Display backlight 500 cd / m²
• PAL/NTSC TV system automatically
• No speaker
• No trigger wires

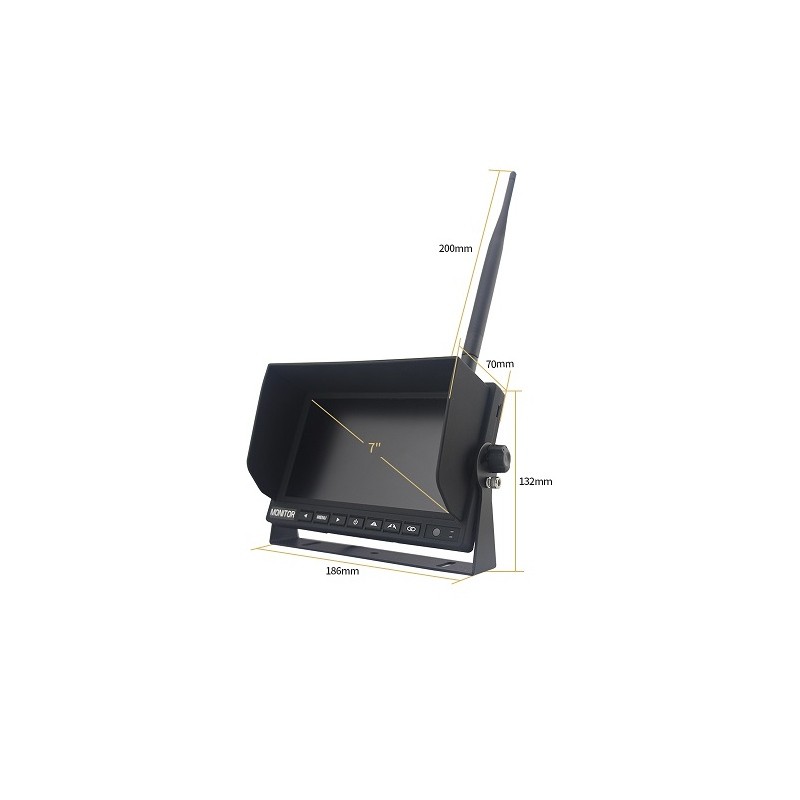

• Dimensions 180 x 121 x 24 mm (without shield and stand)

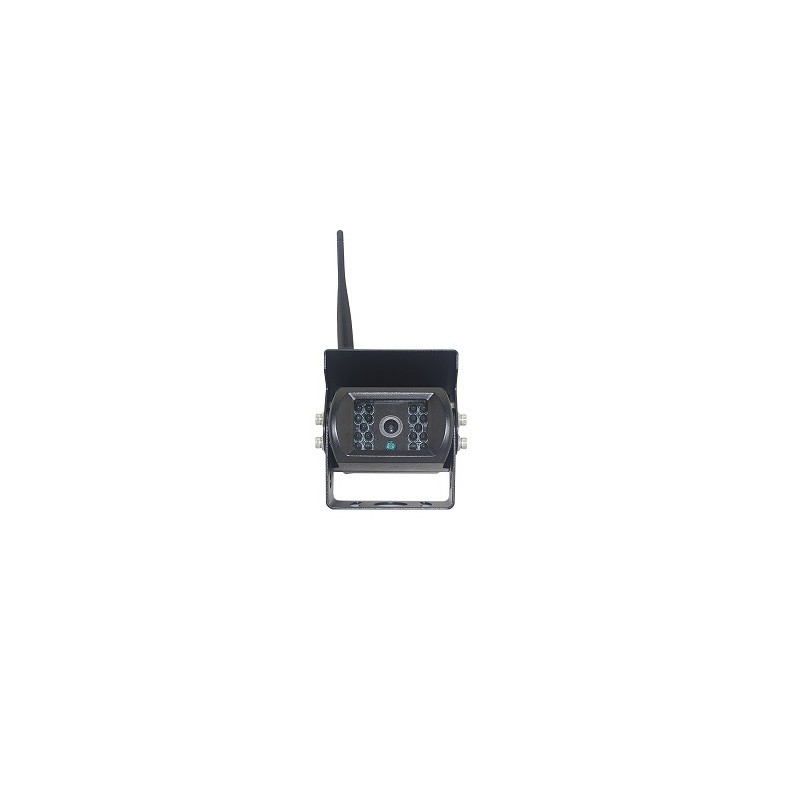

Technical specifications of the TFT7HDW camera:

• 1 / 2.7" CMOS image sensor
• HD resolution 1280 x 720
• Angle of engagement: 140°
• IP69K water resistance
• No microphone
• Dimensions 74 x 46 x 56 mm (without shield and stand)
• Material aluminum alloy

Package contents:

• Monitor.
• 1x camera.
• 2x antenna.
• 2x 1 m power cable.
• 1x 3 m extension cable with antenna stand.
• Shield.
• Double-sided 3M tape.
• 2x Allen key.
