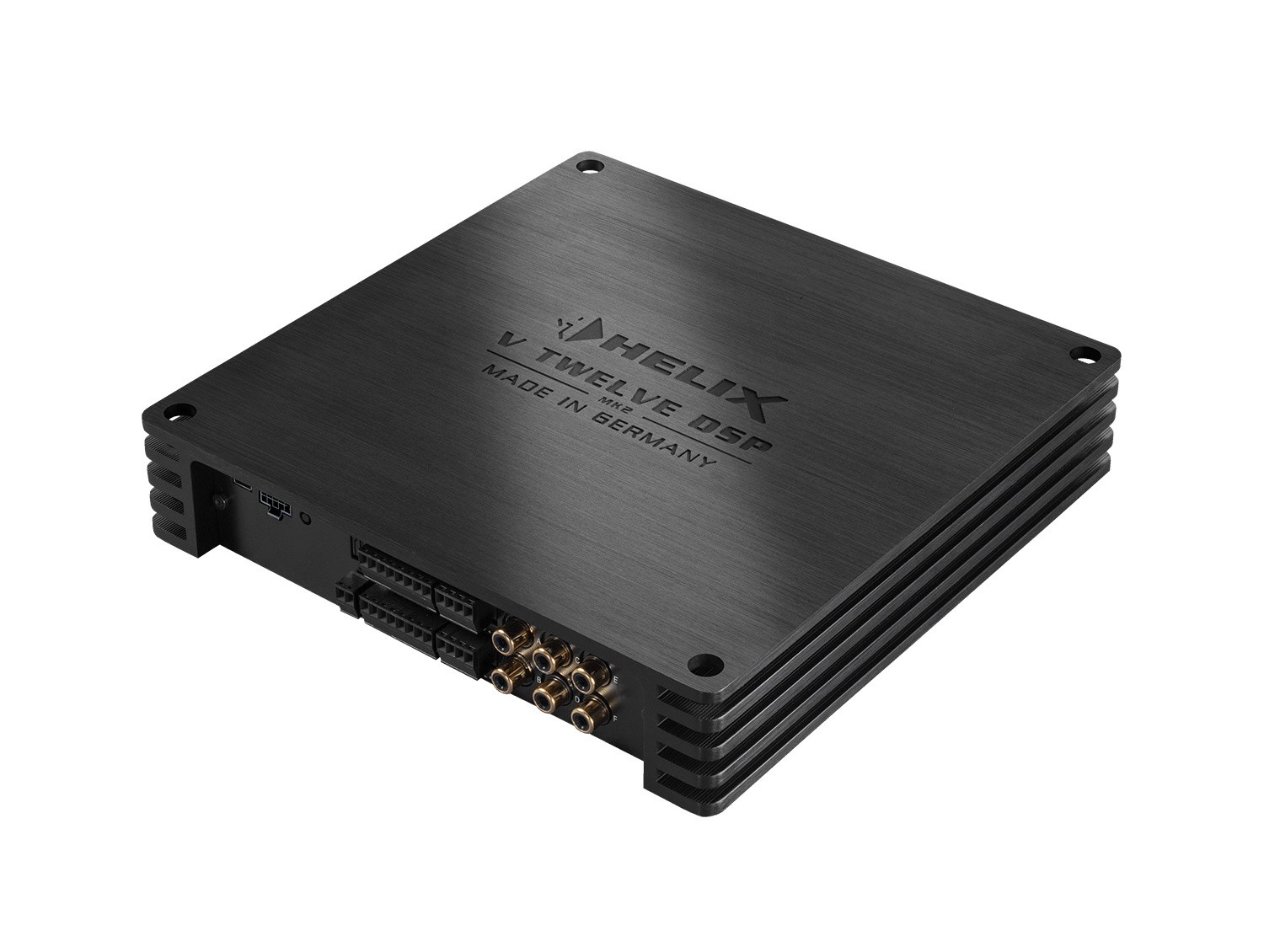

Amplifier with DSP processor Helix V Twelve DSP MK2

Amplifier with DSP processor Helix V Twelve DSP MK2

Multifunctional amplifier

Even if the vehicle is already equipped with a premium sound system from the factory, the amplifier of which often already has more than 10 channels, the sound quality does not always meet one's expectations. In many cases, it is no longer possible to replace existing components, so only an amplifier with the same number of high-level inputs can be considered for expansion. For this reason, the HELIX V TWELVE DSP MK2 offers not only 12 high-level inputs, but also enough amplifier channels to ensure optimal adaptation to existing multi-channel sound systems. In addition, the V TWELVE DSP MK2 is also equipped with a digital input and HEC slot, with which the sound system can be expanded with other signal sources, such as Bluetooth streaming or the integration of a high-resolution audio player. The management of the fabulous fourteen (14!) separate channels of DSP is handled by a powerful integrated 64-bit DSP in conjunction with our unique DSP software for PC. In addition, the newly developed, future-ready Smart Control Port (SCP) facilitates the connection of accessories and, in addition to a compact and secure plug connection, offers an integrated power supply for remote controls such as CONDUCTOR or DIRECTOR, which significantly reduces the number of cables needed and thus the required installation space.

Virtual Channel Processing – this is how signal routing works today

Adapting to modern factory audio systems, the increasing number of signal inputs makes signal routing in the amplifier increasingly complex. Especially when multiple input signals are mixed together and then re-distributed into multipath systems, conventional routing concepts quickly reach their limits. Audiotec Fischer's new, multi-level "Virtual Channel Processing" in conjunction with the acclaimed, user-friendly DSP PC-Tool software makes it possible to easily map even very complex system configurations and freely assign proprietary audio FX functions such as "RealCenter" or "Dynamic Bass Enhancement" , so that you can But with its huge number of channels, the V TWELVE DSP MK2 is also a prime example of applications where 1:1 routing (IOR) makes sense.

Fast computing power - thanks to ACO

Such a huge number of channels not only requires processing power in the signal path - Audiotec Fischer's own 32-bit ACO platform takes over all control tasks and ensures enough speed, especially for data communication with our DSP PC-Tool software, but also for lightning-fast switching between up to ten possible sound settings. The fantastic sound effects associated with the ACO platform, such as extended bass processing, StageXpander or RealCenter, are as natural in the V TWELVE DSP MK2 as the 12-channel input EQ including the Input Signal Analyzer (ISA) for easy input analysis and compensation. signals from OE -Radios.

Perfect sound without compromise

The sound performance of the new HELIX V TWELVE DSP MK2 is as strong as its range of features. High-efficiency Class GD technology and BurrBrown's most advanced AD and DA converters ensure optimal audio performance, the best possible signal-to-noise ratio and minimal harmonic distortion. The TWELVE DSP MK2 is therefore an absolute sonic masterpiece despite the extremely high flexibility and very compact design and does not have to hide from the absolute top.

The main features of the Helix V Twelve DSP MK2 amplifier

• Output power up to 160 W RMS per channel into 2 Ω.
• "Pure Class GD" concept for excellent sound quality combined with the best possible efficiency.
• Extremely powerful 64-bit "fixed point" audio DSP.
• A/D and D/A signal converters from BurrBrown.
• ACO - Advanced 32-bit CoProcessor platform for system and DSP functions.
• ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals.
• Sound Effects SFX – Augmented Bass Processing, StageXpander, RealCenter & Co.
• 10 internal memory slots for sound settings.
• High-performance 12-channel high-level input with input sensitivity up to 32 V RMS and ADEP circuit.3.
• Two processed RCA / RCA outputs.
• 1:1 IOR (Input / Output Routing) – equal number of high-level amplifier inputs and outputs.
• VCP (Virtual Channel Processing) enables even more flexible configuration for highly complex audio systems.
• Compact, perspective SCP (Smart Control Port) for connecting remote controls and accessories.
• HEC slot for system accessories such as Bluetooth® HD Audio Streaming, High Resolution Audio Streaming via USB, etc.
• Automatic remote switch.
• Start-Stop option up to 6V supply voltage.
• Compact design with low heat dissipation thanks to exceptional efficiency.

GD class amplifier technology

AudioD Fischers Pure Class GD proprietary concept takes the efficiency of conventional Class D amplifiers to the next level. By varying the internal supply voltage in response to the input signals of the amplifier, no-load losses are significantly reduced and overall efficiency is close to maximum at all times. Heat dissipation is therefore almost negligible, allowing for the smallest heat sinks and the most compact form factors. In addition, the Pure Class GD amplifier outperforms conventional Class D designs in terms of sound quality by implementing a fully differential signal path and improved output filter design.

ACO - Advanced 32-bit CoProcessor

The HELIX V EIGHT DSP MK2 contains an extremely powerful 32-bit CoProcessor of the latest generation for all monitoring and communication tasks, internally and externally. Unlike the generation of 8-bit predecessors, this MCU achieves much higher speed with regard to switching settings and data communication with our DSP PC-Tool software. Another significant advantage is the integrated native CoProcessor bootloader. It allows software updates of all components of the integrated DSP in order to adapt the ADEP.3 circuit controlled by microcontrollers, for example, to the future requirements of the diagnostic system of production radios or if the device is expanded with additional interfaces. In addition, thanks to the new flash memory, the ACO offers 10 regular memory settings instead of the usual two.

ADEP high level smart input.3

Modern factory-installed car radios include sophisticated diagnostic options for connected speakers. Especially the latest generation of car radios are equipped with additional monitoring functions, so error messages and loss of specific functions (eg fader functions) often appear if the amplifier is connected - but not with the V EIGHT DSP MK2. The new ADEP.3 (Advanced Diagnostics Error Protection, 3rd generation) circuit avoids these problems without unnecessarily loading the OE radio speaker outputs at high volumes.

Start-Stop option

The switching power supply of the HELIX V EIGHT DSP MK2 ensures a constant internal supply voltage, even if the battery voltage drops to 6 V during engine cranking.

Power saving mode

Power saving mode is part of the basic settings. It allows to significantly reduce the power consumption of the amplifiers that are connected to the HELIX V EIGHT DSP MK2 when no input signal is present for more than 60 seconds. Please note that in many modern cars with a "CAN" or other internal bus structure, the radio may remain "invisible" on for up to 45 minutes. even after locking and leaving the vehicle! When "Power Save Mode" is active, the remote output and connected amplifiers will be turned off. When a music signal is applied, the V8 EST DSP MK2 activates the remote output within one second. It is possible to change the shutdown time to 60 seconds. or completely disable "Power Saving Mode" using the DSP PC-Tool software.
