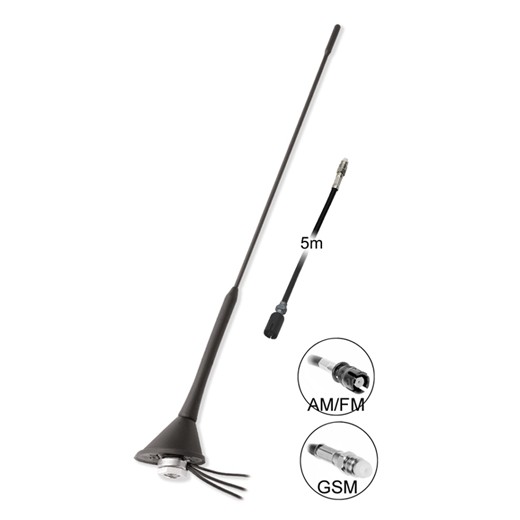

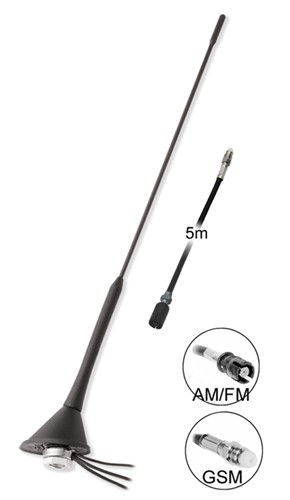

Antenna Calearo 7687050

Roof antenna with amplifier / 76° / GSM + AM/FM / phantom power

Combined GSM + AM / FM roof antenna for the rear part of the roof with amplifier.

• tilt angle: 76°
• removable rod: 40 cm
• base dimensions: 6 x 4.3 cm
• installation in a circular (Ø 19 mm) or square hole (15 x 15 mm)

GSM part:

• frequency range: GSM 880-960/1710-1880 MHz
• gain: 0 dBi
• max. power: 8 W
• VSWR: TX < 1.5:1 / RX < 2:1
• antenna cable length: 5 m
• connector for GSM devices: FME female
• antenna connector: ROKA male (cable 14 cm)

AM/FM part:

• frequency range: FM 76-108 MHz, AM 0.52-1.71 MHz
• without antenna lead
• connector at the antenna: RAKU2 female (cable 14 cm)
• amplifier power supply: 12 V

Suitable for cars:

• universal use

• Too bad Felicia

• Opel Agila
• Opel Astra (1998 ->)
• Opel Vectra Wagon
• Opel Corsa (2003 ->)
• Opel Signum

• BMW Mini (2001 ->)

Note:
For use in other types of cars, use an antenna adapter or an antenna lead!
