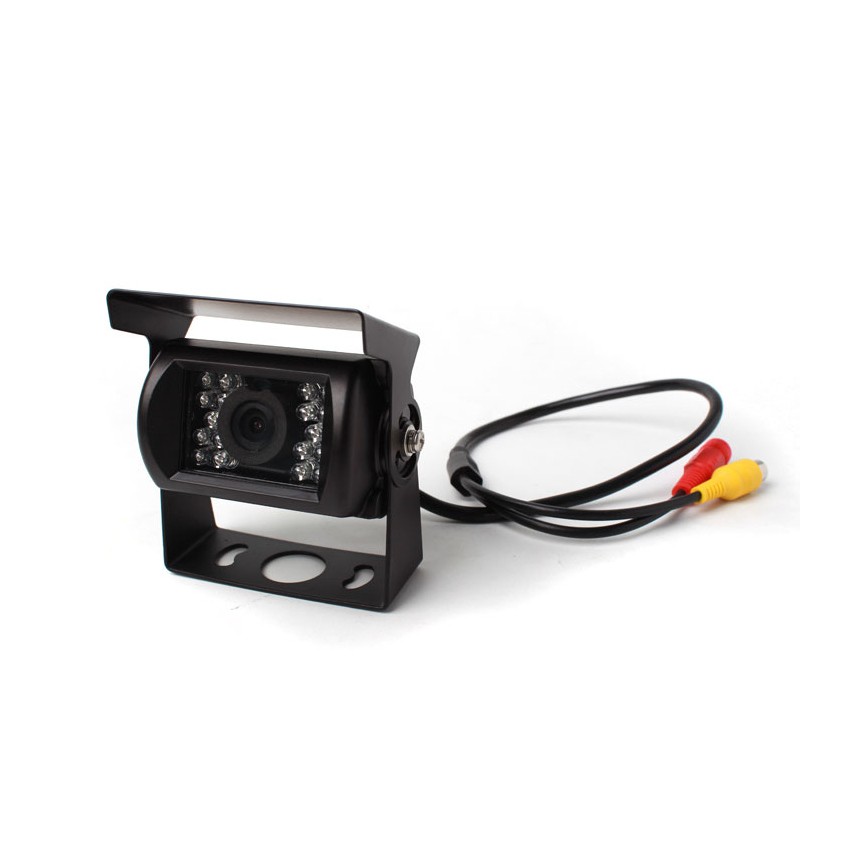

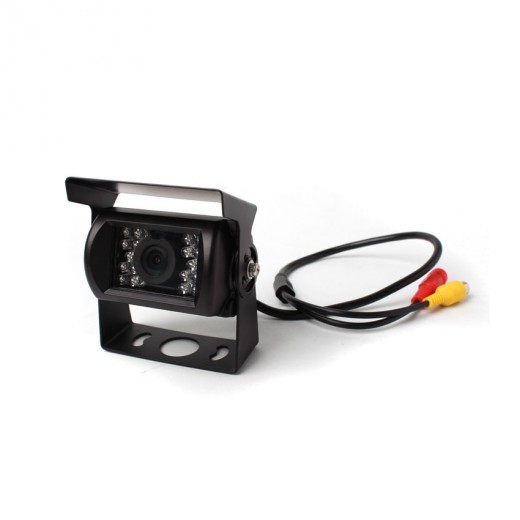

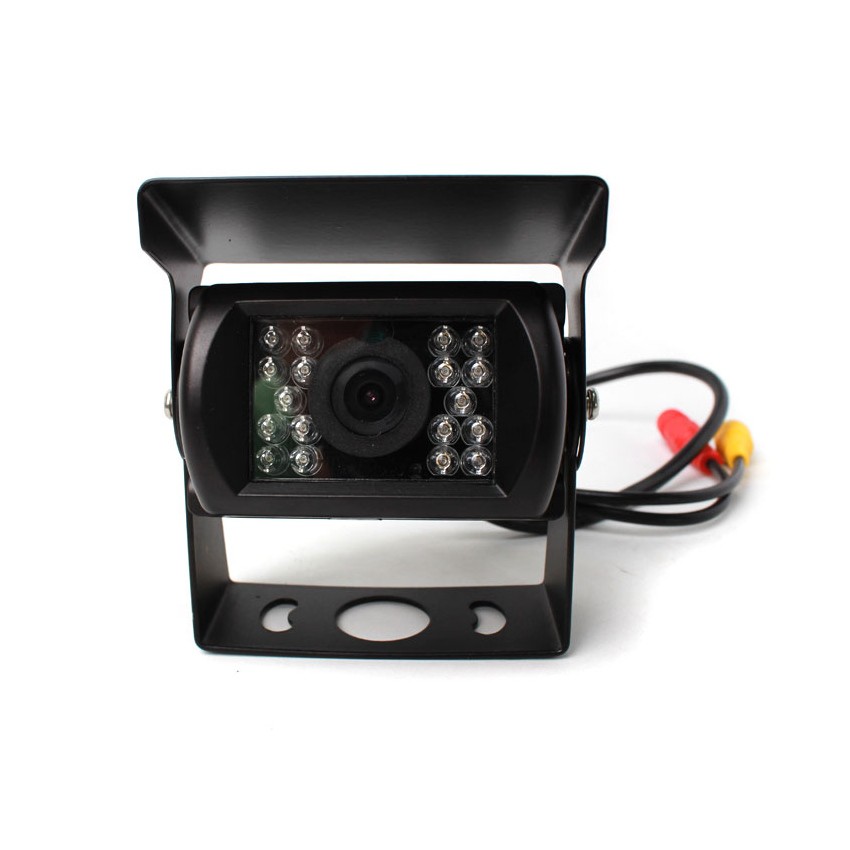

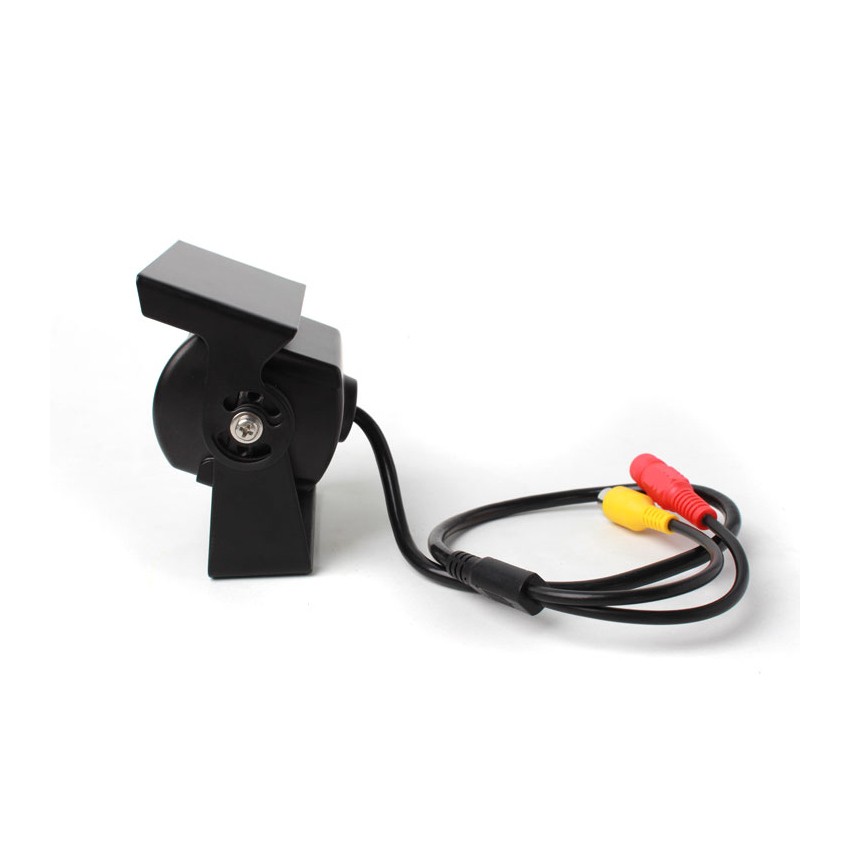

Universal parking camera (BC UNI-06)
universal parking camera with automatic IR illumination
More about the product
More about the product
We will help you with your purchase
- Use our consulting room
- You can return the goods to us within 14 days
- Try the product at our store
Universal parking camera
Universal parking camera, 12V / 24V, without guide lines, angle of view 110°, with automatic IR illuminator, metal camera body.
Technical parameters of the camera
- large 1/3" sensing chip
- illumination with IR LEDs (18 pcs.)
- electronic aperture: 1/50 1/10000 sec.
- minimum illumination: 0.05 lux
- signal / noise ratio: > 48 dB
- TV system: NTSC
- effectively pixels: 512 x 582
- number of TV lines: 480
- weather protection: IP66
- scanning angle: 110°
- video output: 1.0V / 75 ohm
- white balance: automatic
- operating temperature: from -30 °C to +70 °C
- CINCH connectors
- power cable length: 1 m
- power supply 12V / 24V
- current consumption: 290 m (+/- 5%)
- mirror image
- camera body dimensions: 75 x 43 x 57 mm
| Catalog number | BC UNI-06 |
| Brand | TSS Group |
