Antenna Calearo 7677855
AM / FM / DAB roof antenna with amplifier 60°, short rubber rod
More about the product
More about the product
We will help you with your purchase
- Use our consulting room
- You can return the goods to us within 14 days
- Try the product at our store
AM / FM / DAB / DAB+ roof antenna with amplifier for the rear part of the roof

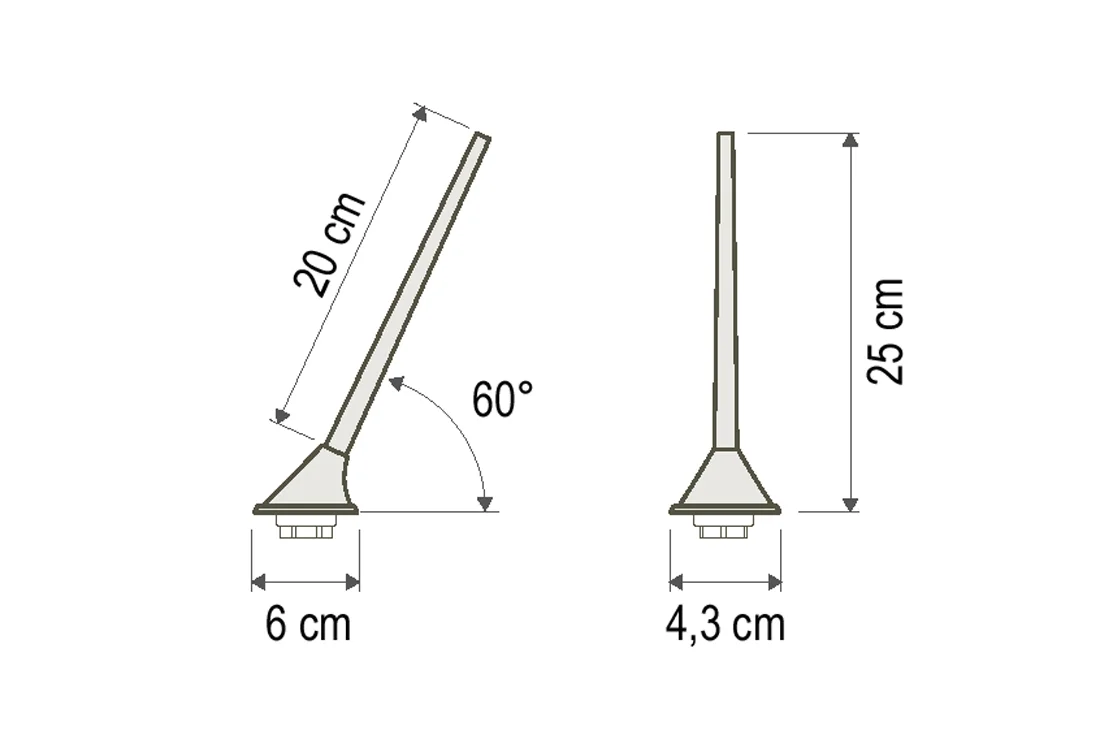

- Angle of inclination: 60°.

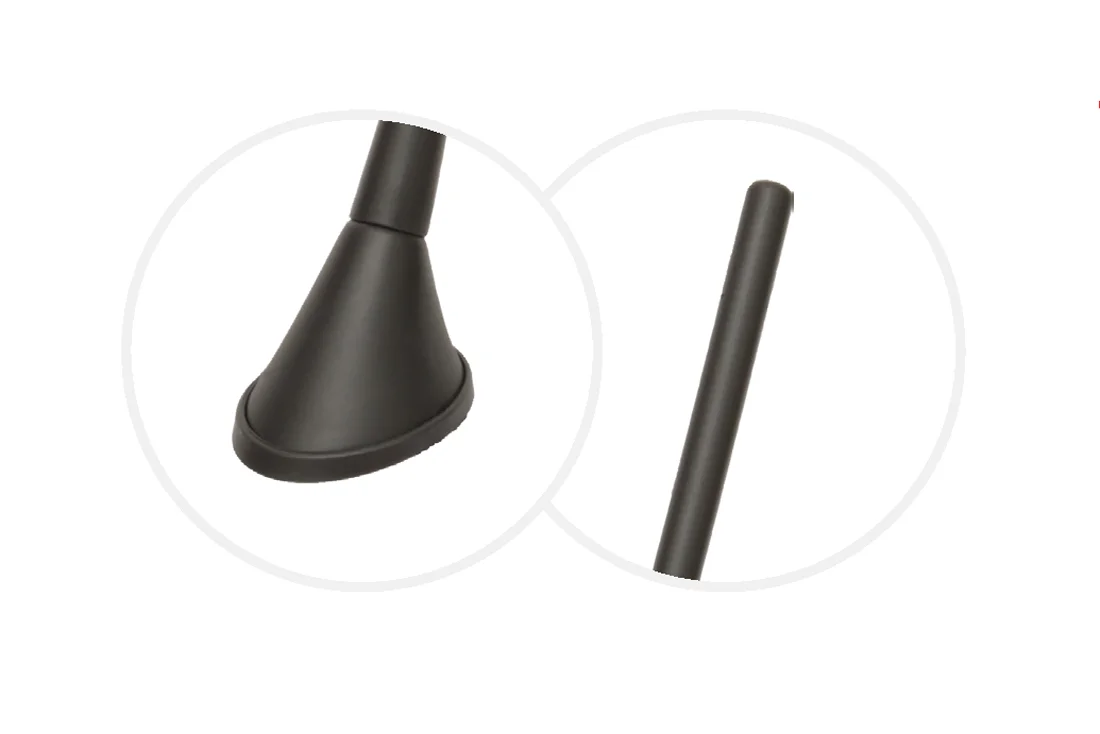

- Rubber flexible removable rod.
- Rod length: 20 cm.
- Screw thread diameter: M5.
- Packaging without antenna lead.
- Protection: IP68.
- Base dimensions: 6 x 4.3 cm.
- Installation in a circular (Ø 19 mm) or square hole (15 x 15 mm).
DAB / DMB part:
- Frequency range: 174 - 240 MHz (III band) / 1452 - 1492 MHz (L band).
- Gain: 14 dBi (III band) / 11 dB (L band).
- VSWR: <10 (III band) / <2 (L band).
- Separate 12V amplifier power supply.
- Current consumption: 50 mA max.
- VSWR: AM 5:1 / FM 7.5:1.

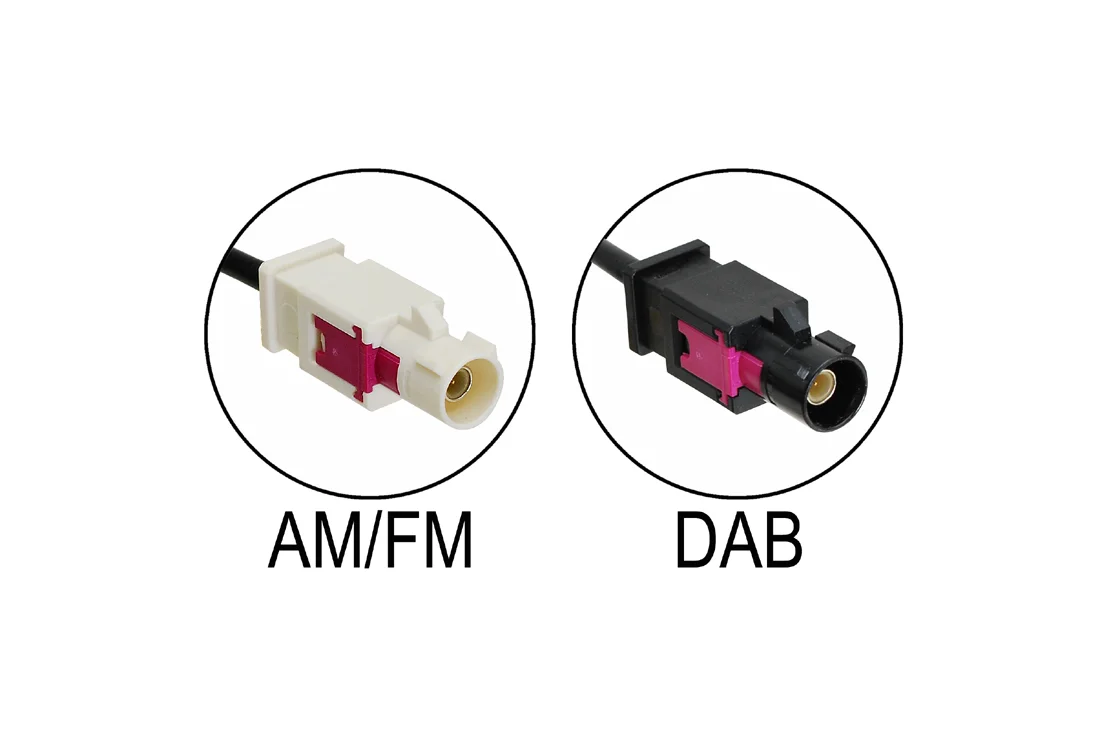

- Antenna connector: FAKRA male black.
- Antenna cables: RG174.
- Cable length at the antenna: 18 cm.
AM/FM part:
- Frequency range: FM 76-108 MHz, AM 0.52-1.71 MHz.
- Separate 12V amplifier power supply.
- Current consumption: 50 mA max.
- Impedance: 50 ohms.
- VSWR: <3:1.
- Antenna connector: FAKRA male white.
- Antenna cables: RG174.
- Cable length at the antenna: 20 cm.
Suitable for cars:
- Universal
- Alfa Romeo 145
- Alfa Romeo GT
- Audi A3
- Audi A6 Avant (-> 2001)
- Audi A4 Avant (-> 2001)
- Citroen Xsara
- Citroen C2
- Citroen C3
- Citroen C5 Estate
- Daewoo Nubira Combi
- Daewoo Tacuma
- Fiat Stilo
- Fiat Idea
- Fiat Panda II (2003 -> 2012)
- Lancia Libra Combi
- Lancia Ypsilon (2004 ->)
- Lotus Elise
- Lotus Esprit
- Mazda 323 (1999 ->)
- Mazda3
- Mazda 6 I. [GG][GY](2002 -> 1/2008)
- Mitsubishi Outlander
- Nissan Micra
- Nissan Almera
- Nissan Primera
- Opel Omega Caravan
- Opel Zafira
- Opel Vectra
- Opel Meriva
- Opel Speedster
- Peugeot 307
- Renault Clio (2001 ->)
- Renault Megane II
- Renault Scenic II
- Seat Aroza
- Seat Ibiza (1998 ->)
- Seat Cordoba (1998 ->)
- Seat Toledo (1998 ->)
- Seat Leon
- Seat Altea
- Skoda Fabia I
- Skoda Fabia II
- Skoda Octavia I
- Skoda Octavia II
- Škoda Superb I
- Škoda Superb II
- Too bad Yeti
- Toyota RAV4
- Toyota Corolla (2002 ->)
- Toyota Yaris (2003 ->)
- Toyota Prius
- VW Lupo
- VW Polo
- VW Golf III
- VW IV
- VW Corrado
- VW New Beetle
- VW Bora
- VW Passat (1993 ->)(1997 ->)
- Volvo V40
| Catalog number | 7677855 |
| Brand | Calearo |
| Links | Official web presentation |
