Antenna Calearo 7727016
roof antenna / TETRA / GSM DSC / GPS / 60°
More about the product
More about the product
We will help you with your purchase
- Use our consulting room
- You can return the goods to us within 14 days
- Try the product at our store

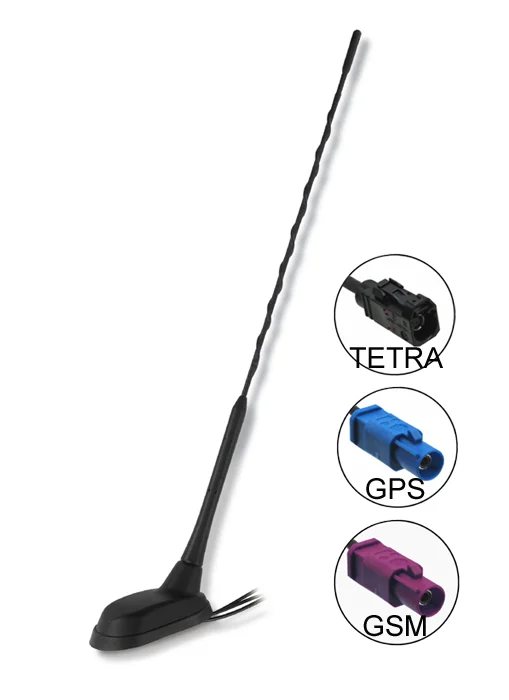

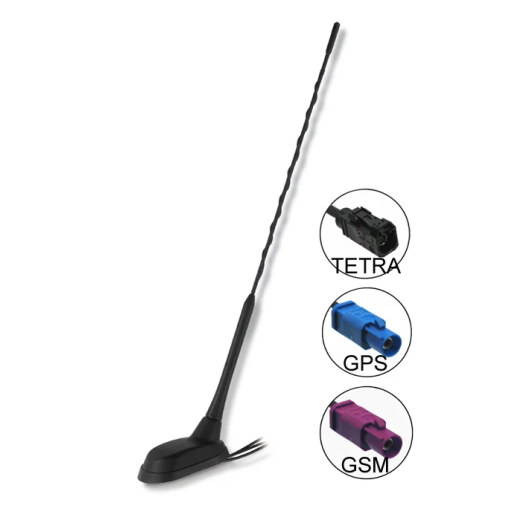

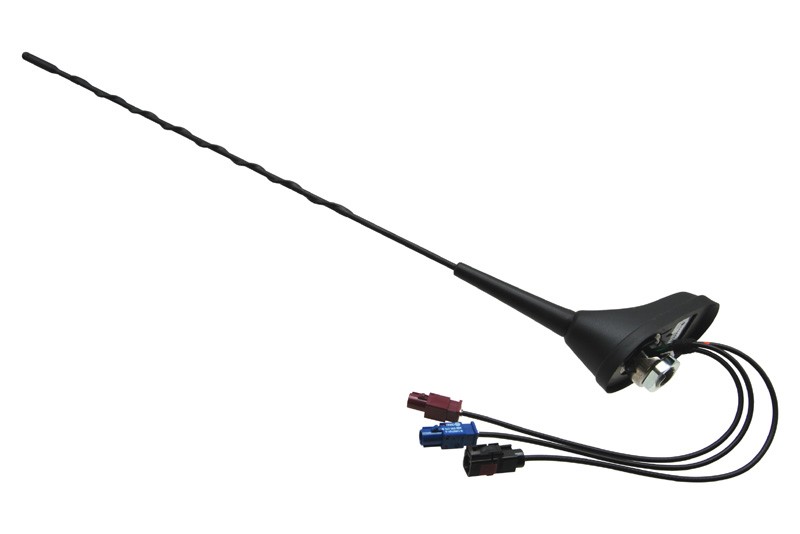

Calearo TETRA/ GSM DSC / GPS combined universal roof antenna 60°
- black colour
- slope: 60°
- rod length: 40 cm
- temperature range of use: -40°C to 85°C
- protection class: IP68
- base dimensions: 9.8 x 5 x 44 cm (L x W x H)
- body hole diameter: circular 19 mm / square 15 x 15 mm
- automotive use: on the roof for cars or trucks
- can be used as a replacement for the original antenna
- in case of a request for a different type of connector on the side of the connected device, it is possible to use one of the reductions, or to replace the cable
TETRA part:
- TETRA frequency range 380 - 430 MHz
- gain: 1 dBi
- max. power: 20 W
- VSWR: < 2:1
- without antenna lead
- connector at the antenna: FAKRA male (cable 18 cm)
GPS part:
- GPS frequency range: 1575.42 (+/-1.023) MHz
- phantom power: 3 - 5 V
- gain: >27 dBi
- current consumption: max. 30 mA
- VSWR: < 2:1
- without antenna lead
- connector at the antenna: FAKRA male (cable 18 cm)
GSM DSC part:
- GSM frequency range: 890 - 860 MHz / 1710 - 1880 MHz
- gain: 0 dB
- VSWR: TX: < 1.5:1 / RX: < 2:1
- power: 4 W
- without antenna lead
- connector at the antenna: FAKRA male (cable 18 cm)
| Catalog number | 7727016 |
| Brand | Calearo |
| Links | Official web presentation |
