OEM parking camera for VW

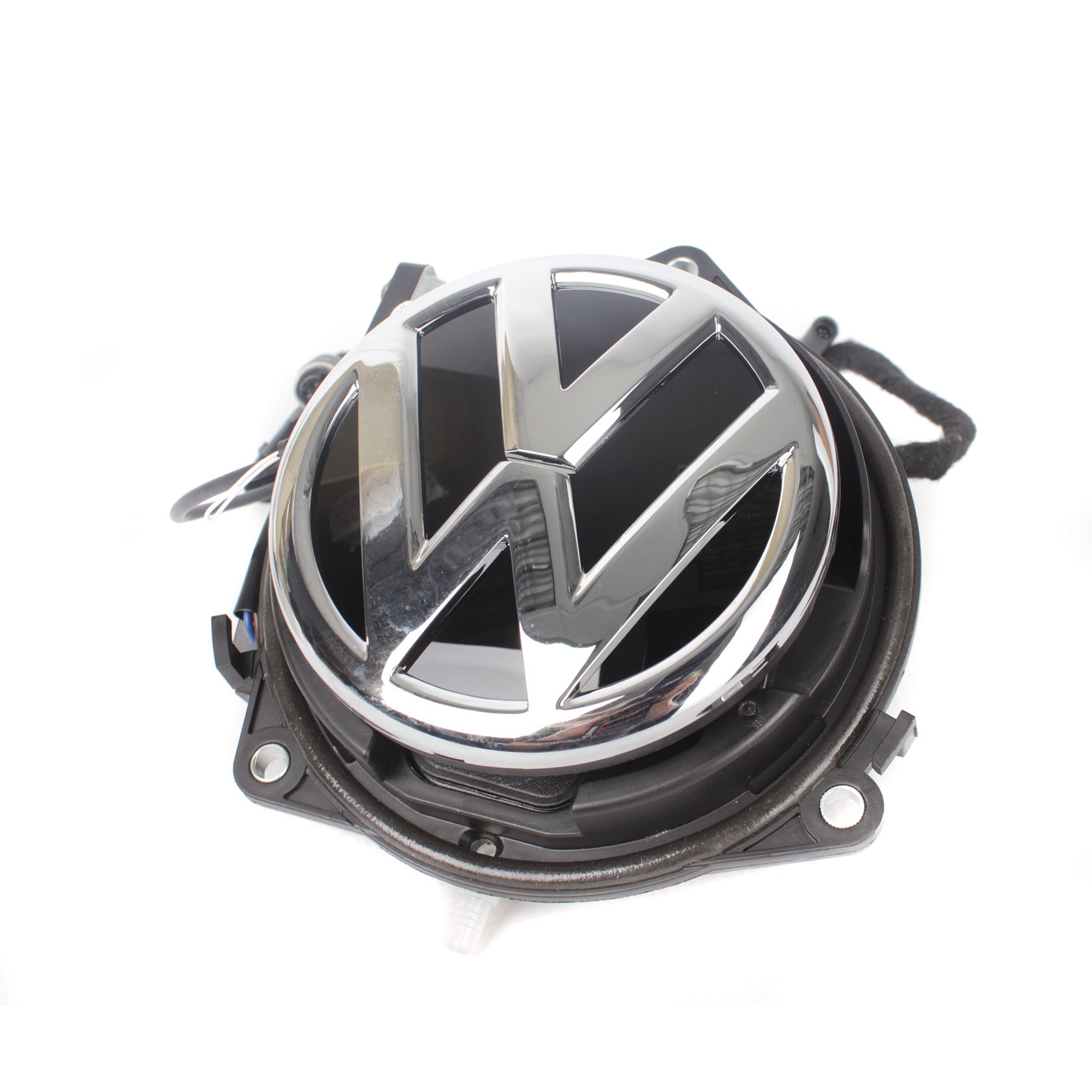

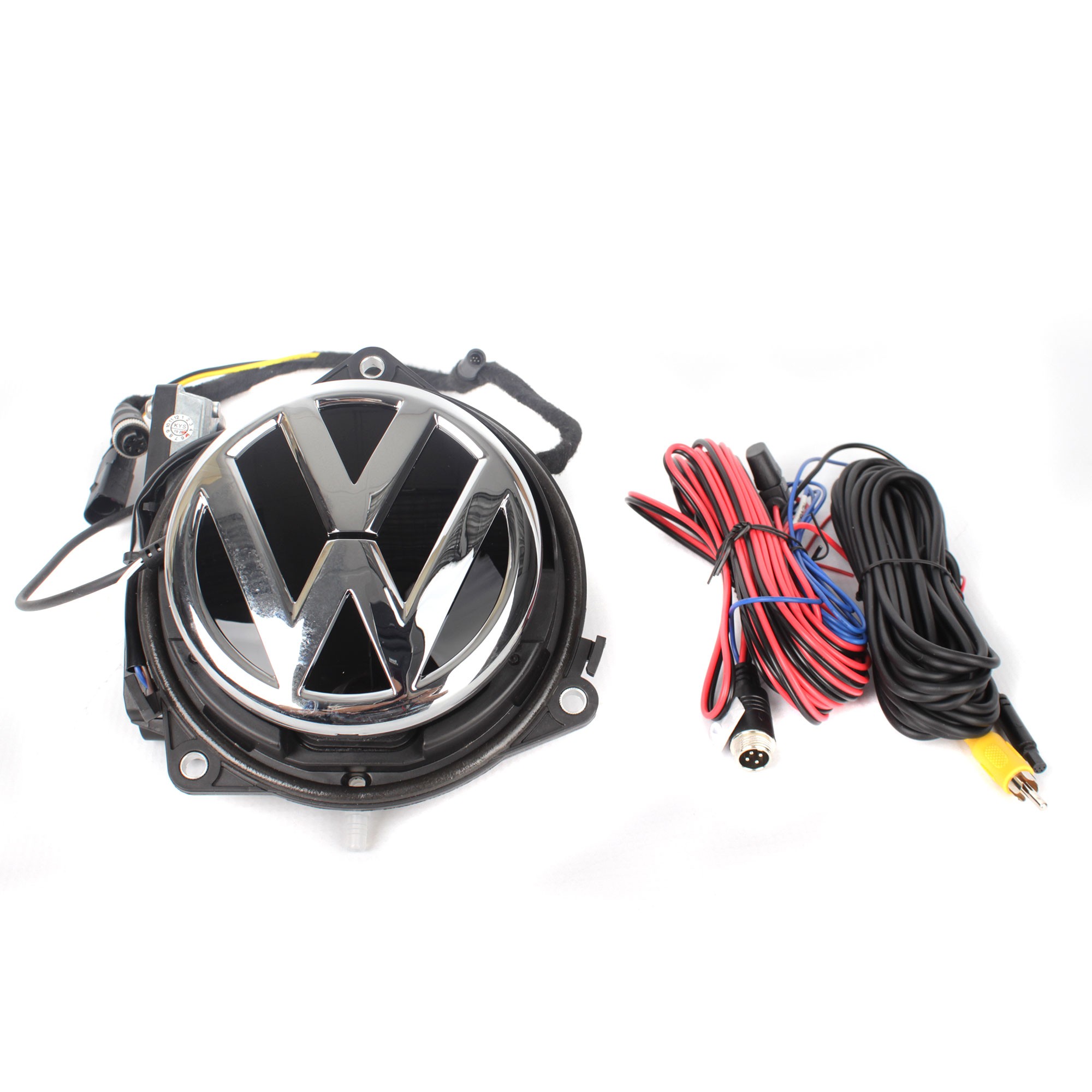

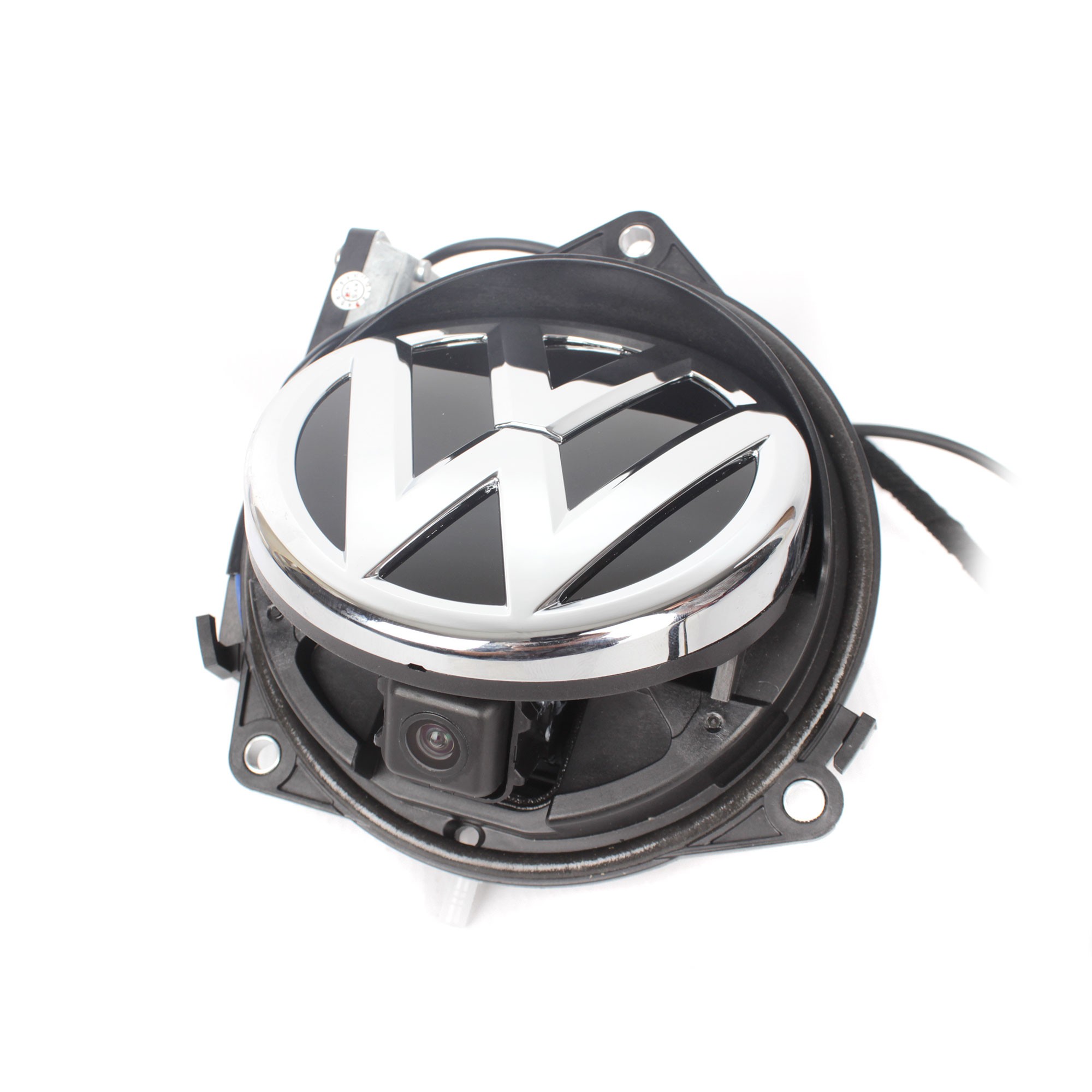

OEM color parking camera integrated in the "VW" logo located on the fifth door. After engaging the reverse gear, the camera folds up automatically, the original function of opening the door with the logo is preserved.
Camera suitable for the following vehicles:
- VW Golf V. (9/2003 ->)
- VW Golf VI. (8/2007 ->)
- VW Passat CC (8/2008 ->)
- VW Sharan II. (2010 ->)
Technical parameters of the OEM camera for VW:
- chrome logo diameter: 11 cm
- sensing sensor: PC3089 1/3"
- the option to turn on / off the display of auxiliary trajectories (guide lines)
- electronic aperture: 1/60 1/10000 sec.
- minimum illumination: 0.1 lux
- signal / noise ratio: > 48 dB
- TV system: NTSC
- number of TV lines: 600
- effective pixels: 668 × 576
- weather protection: IP67
- scanning angle: 170°
- camera body: durable plastic "private housing"
- image display: mirror image
- white balance: automatic
- operating temperature: from -30 °C to +70 °C
- AGC, BLC, white balance: automatic
- signal cable: length 6.2 m terminated with CINCH / RCA connector
- video output: 1.0V / 75 ohm
- power cable length: 1 m
- power supply: 12 V DC
- consumption: <1W
Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!
| Catalog number | BC VW-84 |
| Brand | TSS Group |
