Parking assistant Steelmate PTS411EX Silver

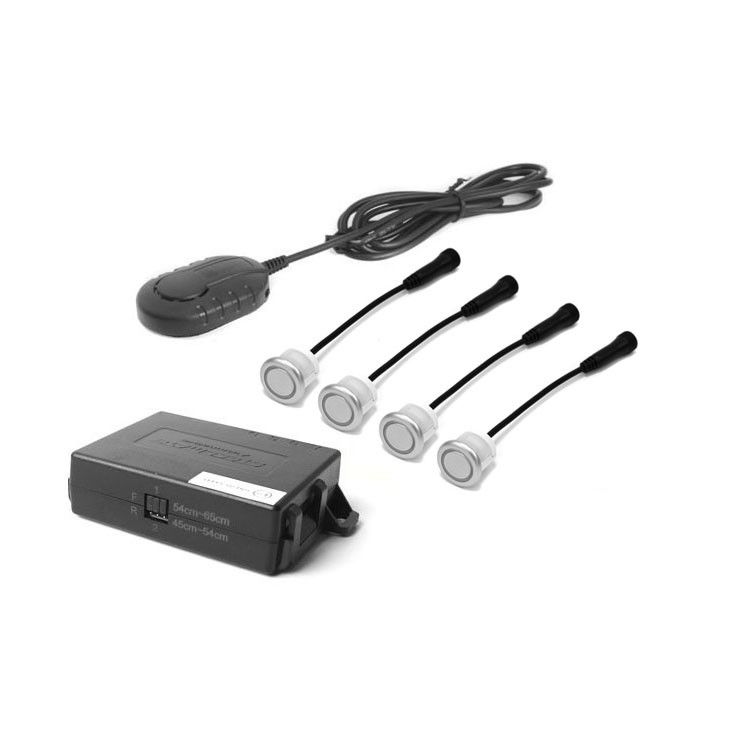

The STEELMATE parking assistant with 4 silver sensors and acoustic signaling is intended for installation in the rear or front bumper of the vehicle. The system is supplemented with an Antihook function and automatic identification of a faulty sensor, sensitivity settings, a learning function, a buzzer with adjustable volume and pitch. Supply voltage 12 V/24 V. The length of the wires to the sensors is 2.3 m. In the case of installing the parking assistant in the front bumper, the EXT CABLE KIT extension cables must be used.
System description
- sensors with fixed mounting in the bumper
- fast obstacle detection
- sound signaling (changing beep frequency) will announce the position of the obstacle
- volume adjustment directly on the buzzer body (3 levels)
- frequency setting directly on the buzzer body (2 levels)
- excellent coverage of the entire space behind or in front of the car, horizontal scanning angle 110° ± 15°
- if the obstacle is within 30 cm of the vehicle, a continuous tone will sound
- autodetection (automatic identification of a faulty sensor)
- adjustable sensitivity of the sensors on the control unit (2 levels)
- unique learning function (ignoring permanent obstacles - reserve, towing, frame ...)
- additional wire to ignition (pink) for stable power supply (optional connection)
- angular reduction directly in the package 0°, 4°, 10°
- sensor core diameter 14 mm
- required mounting hole 18.8 mm
- the sensors are on a 10 cm cable with a waterproof connector, which ensures easy sensor replacement if necessary
- length of wires to sensors 2.3 m
- the control unit is not waterproof and must be installed in a dry place
Notice
The control unit contains a 3PIN connector for connecting the display, old displays with an 8PIN connector are not compatible!
| Catalog number | PTS411EX SILVER |
| Brand | Steelmate |
