Parking assistant Steelmate PTS411M21 Silver

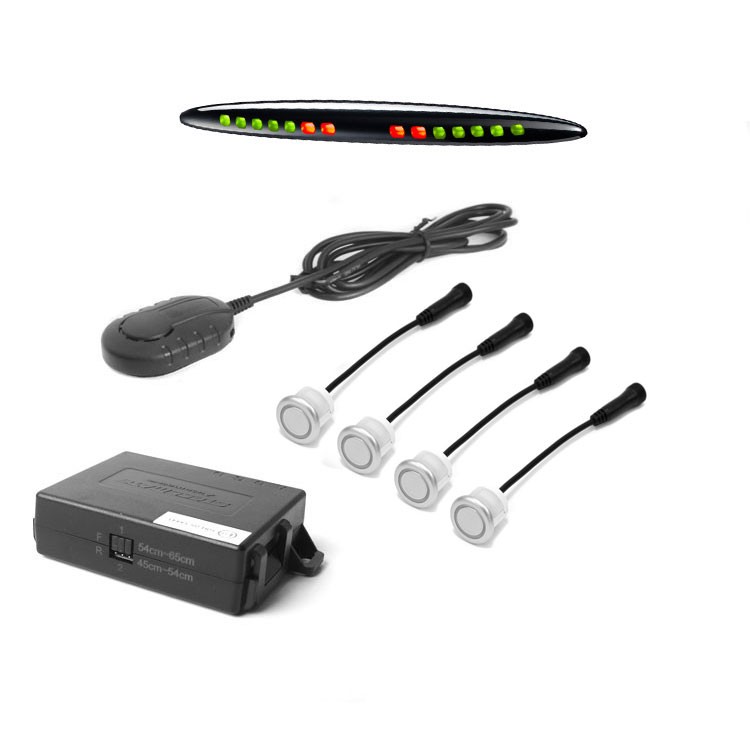

The STEELMATE parking assistant with 4 sensors and an ultra-slim M21 LED display with a two-color indicator is intended for installation in the rear or front bumper of the vehicle. The display is intended for mounting on the dashboard, under the rear-view mirror or for ceiling mounting (viewing using the reflection in the rear-view mirror). The system includes an Antihook function (ignoring the vehicle's towing device), automatic identification of a faulty sensor, and is supplemented with sensitivity adjustment functions and a learning function. The set includes 4 parking sensors, control unit, display, buzzer and wiring. Supply voltage 12/24 V. If the parking assistant is installed in the front bumper, the EXT CABLE KIT extension cables must be used.
System description
- sensors with fixed mounting in the bumper
- fast obstacle detection
- visual and acoustic signaling (changing frequency of beeps) will announce the position of the obstacle
- excellent coverage of the entire space behind the car, horizontal scanning angle up to 110° ± 15°
- if the obstacle is within 30 cm of the vehicle, a continuous tone will sound
- autodetection (automatic identification of a faulty sensor)
- adjustable sensitivity of the sensors on the control unit (2 levels)
- volume and pitch can be adjusted directly on the body of the buzzer
- unique learning function (ignoring permanent obstacles - reserve, towing, frame ...)
- additional wire to ignition (pink) for stable power supply (optional connection)
- angular reduction directly in the package 0°, 4°, 10°
- sensor core diameter 14 mm
- required mounting hole 18.8 mm

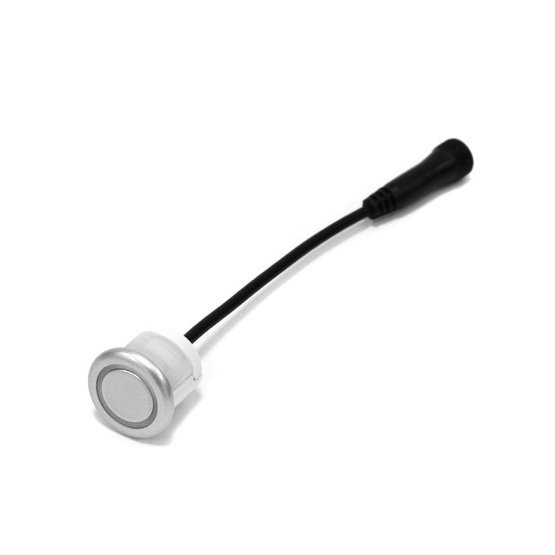

- the sensors are on a 10 cm cable with a waterproof connector, which ensures easy sensor replacement if necessary
- length of wires to sensors 2.3 m
Notice
The control unit contains a 3PIN connector for connecting the display, old displays with an 8PIN connector are not compatible!
| Catalog number | PTS411M21 SILVER |
| Brand | Steelmate |
