Steelmate PTS411M21 OEM parking assistant

parking assistant with 4 adjustable recessed 16 mm sensors and ultra-slim M21 LED display with two-color indicator designed for installation in the rear or front bumper of the vehicle
More about the product
We will help you with your purchase

Steelmate PTS411M21 OEM parking assistant

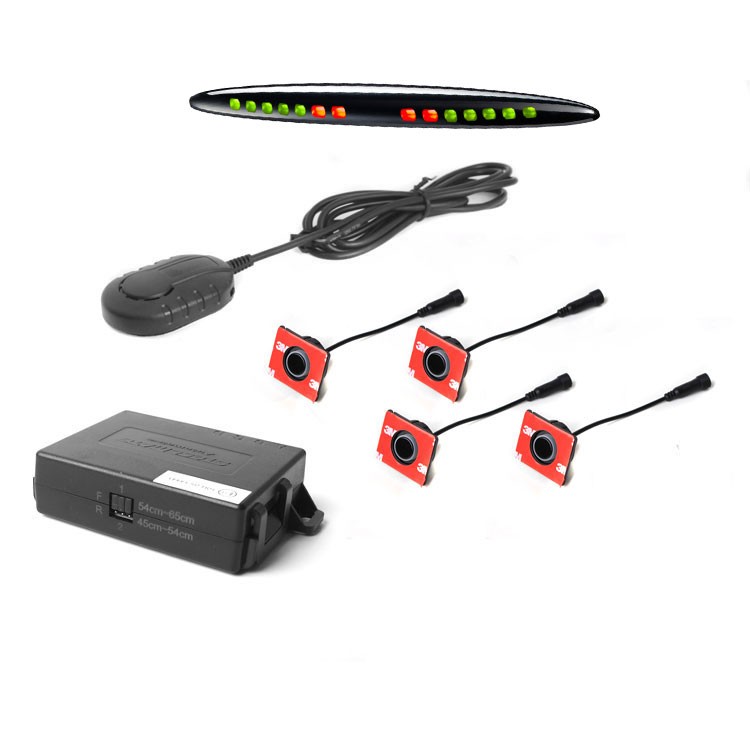

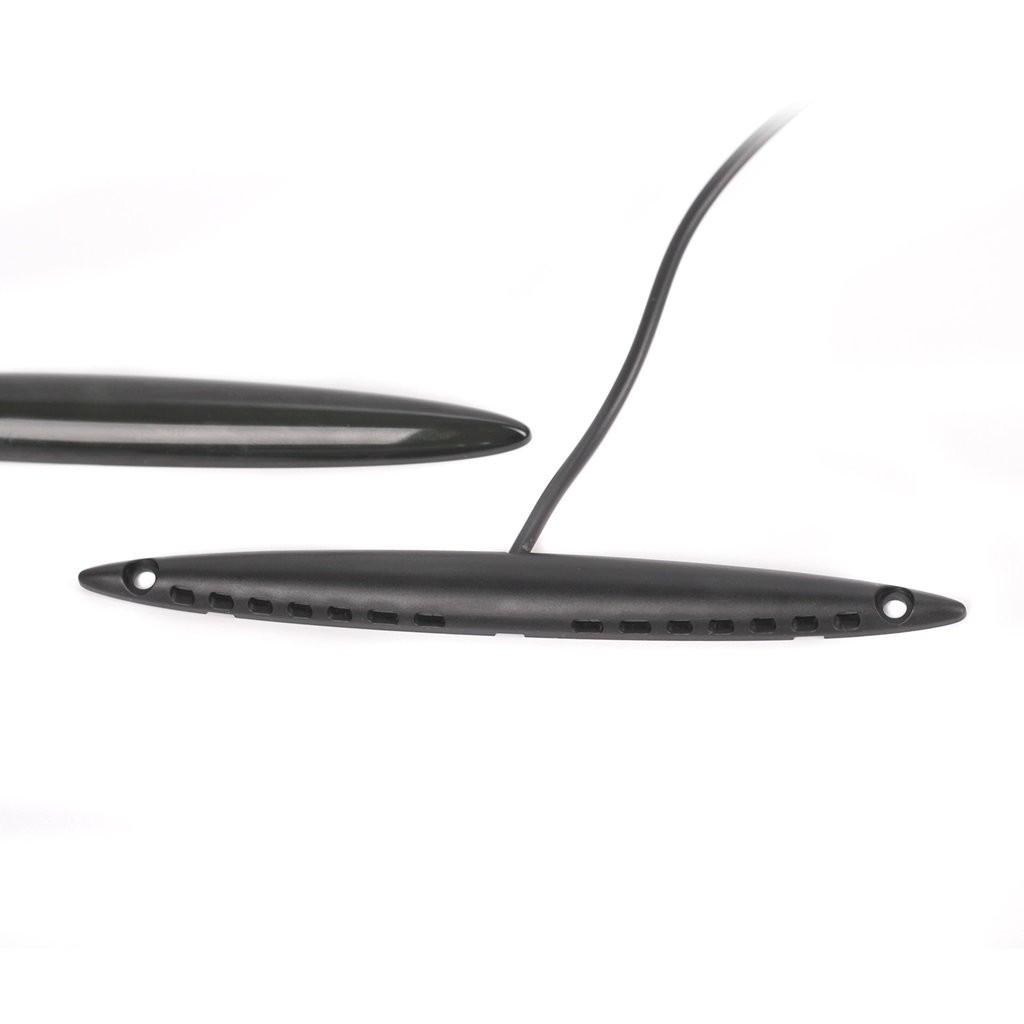

The STEELMATE parking assistant with 4 adjustable recessed 16 mm sensors and an ultra-slim M21 LED display with a two-color indicator is intended for installation in the rear or front bumper of a vehicle. The display is intended for mounting on the dashboard, under the rear-view mirror or for ceiling mounting (viewing using the reflection in the rear-view mirror). The system includes the Antihook function (ignoring the vehicle's towing device), automatic identification of a faulty sensor and is supplemented with sensitivity adjustment functions and a learning function. The set includes 4 parking sensors, control unit, display, buzzer and wiring. Supply voltage 12/24 V. If the parking assistant is installed in the front bumper, the EXT CABLE KIT extension cables must be used.

System description

  • sensors with fixed mounting in the bumper
  • fast obstacle detection
  • visual and acoustic signaling (changing frequency of beeps) will announce the position of the obstacle
  • excellent coverage of the entire space behind the car, horizontal scanning angle up to 110° ± 15°
  • if the obstacle is within 30 cm of the vehicle, a continuous tone will sound
  • autodetection (automatic identification of a faulty sensor)
  • adjustable sensitivity of the sensors on the control unit (2 levels)

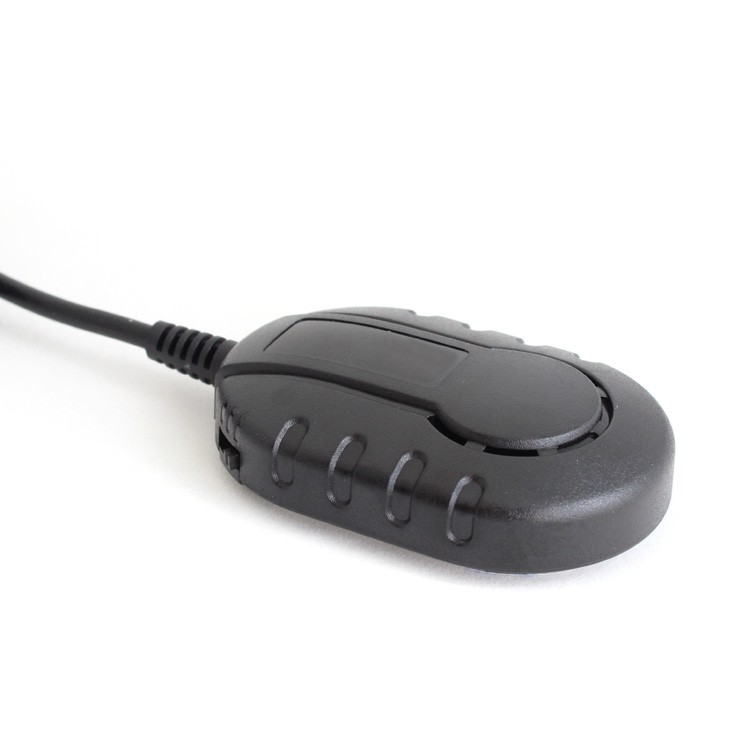

  • volume and pitch can be adjusted directly on the body of the buzzer
  • unique learning function (ignoring permanent obstacles - reserve, towing, frame ...)
  • additional wire to ignition (pink) for stable power supply (optional connection)

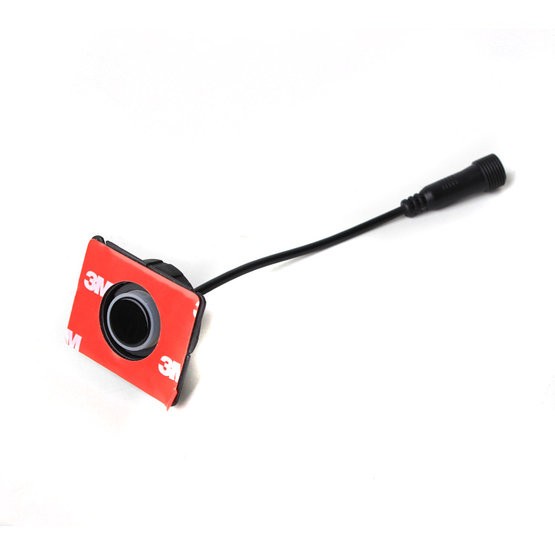

  • sensor core diameter 14 mm
  • required mounting hole 16 mm
  • the sensors are on a 10 cm cable with a waterproof connector, which ensures easy sensor replacement if necessary
  • length of wires to sensors 2.3 m

Notice

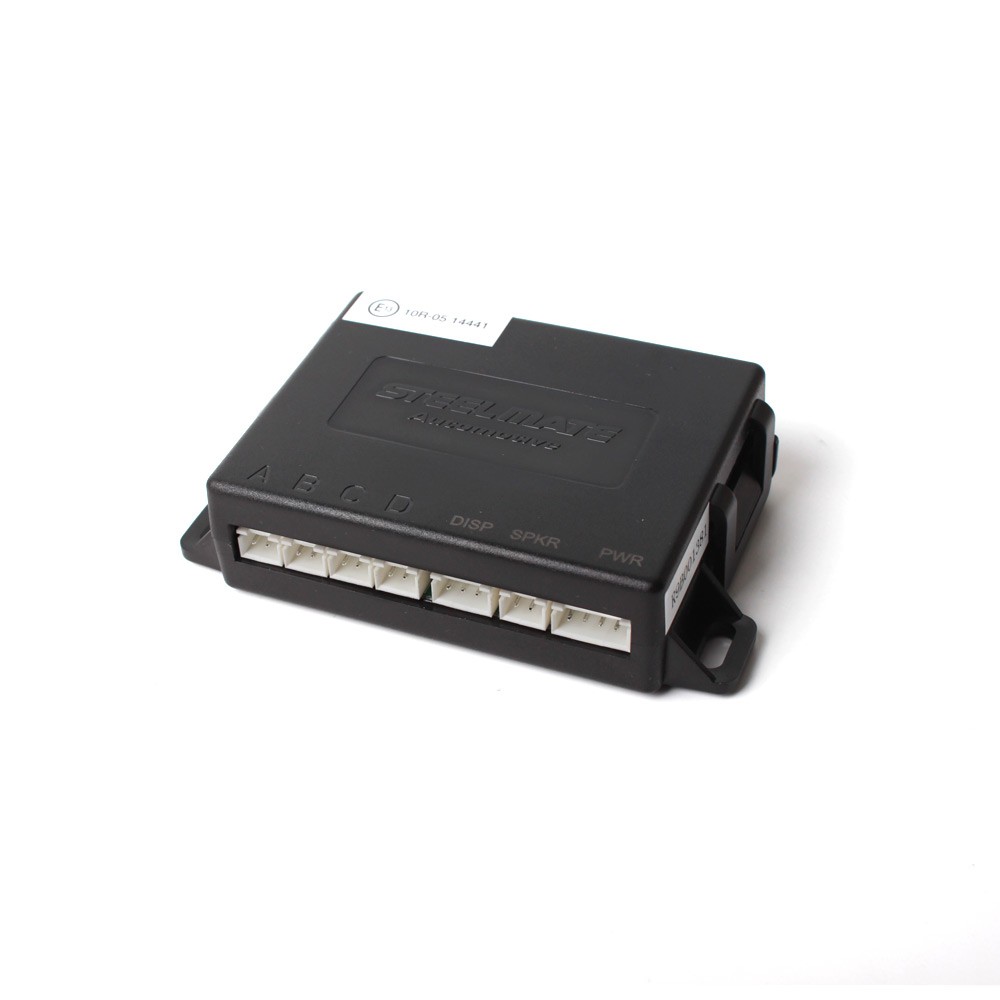

The control unit contains a 3PIN connector for connecting the display, old displays with an 8PIN connector are not compatible!

Catalog numberPTS411M21 OEM
BrandSteelmate
