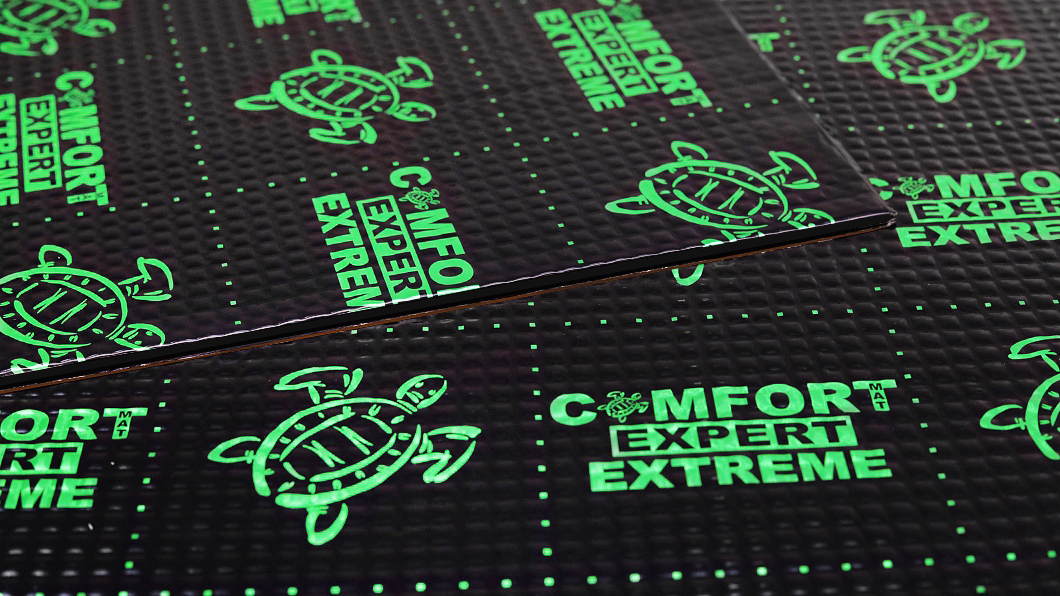

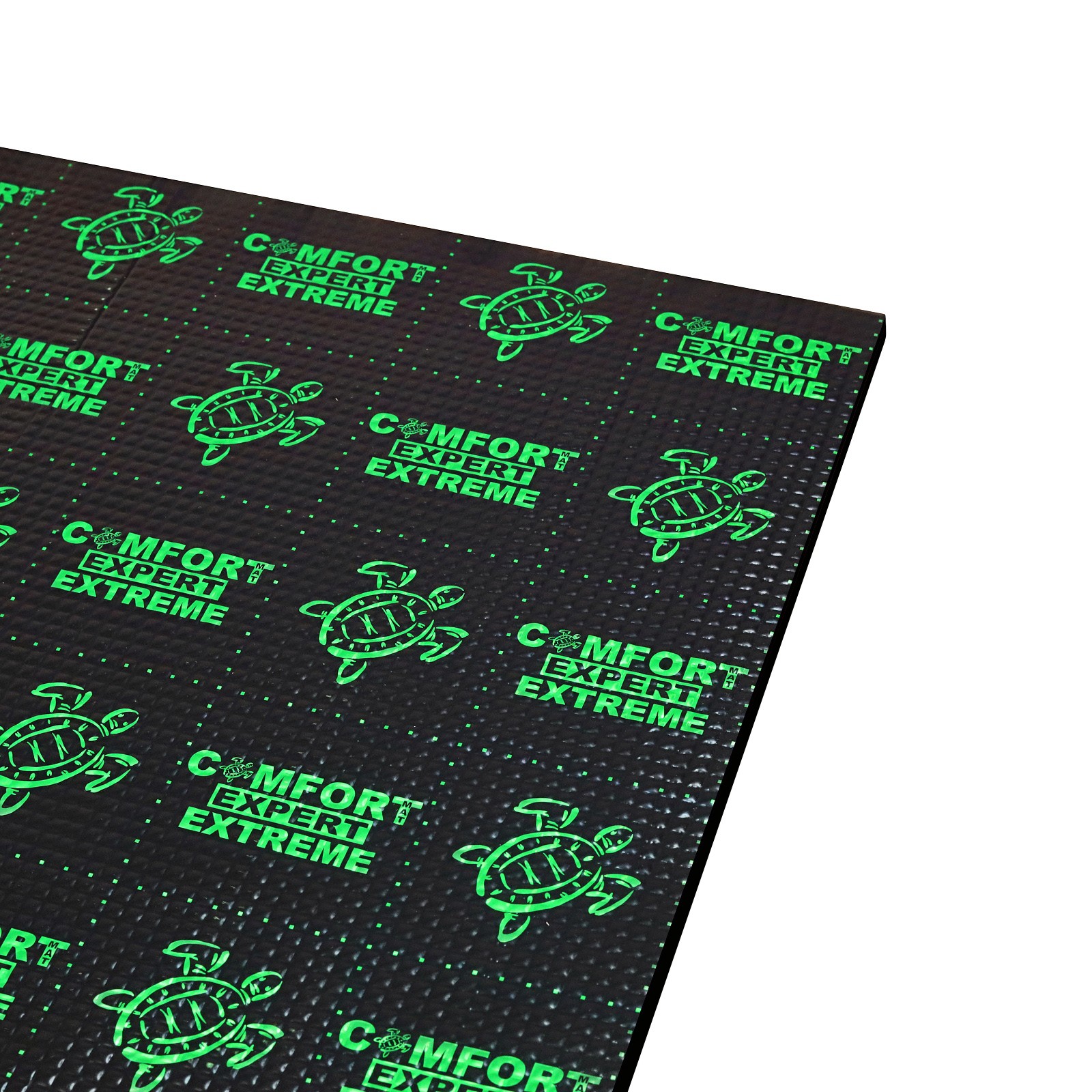

Anti-vibration material Comfortmat Extreme Pro Max

Anti-vibration material Comfortmat Extreme Pro Max

Professional anti-vibration material with an extreme thickness of 8 mm from the top Expert range, which was completely redesigned in 2021. Extreme Pro Max consists of two types of newly developed sealants, each of which fulfills a different function. The majority of the material consists of an upper layer of innovative bitumen, which has 20% higher stiffness than the previous version and will allow to filter out vibrations with the highest efficiency even in the most heavily loaded areas. The second layer, made of a special lightweight sealant, stands out in addition to its low weight for its extreme adhesion, which has been increased by 15%. In addition, both layers are separated by aluminum foil for even higher rigidity and efficiency of the materials. The top side of the material is also provided with the same foil. The result is the most effective anti-vibration material in the world with a record acoustic loss factor of 0.85 units, which easily copes with vibrations and low-frequency noise. The material is also suitable for powerful SPL audio installations. Of course, Extreme Pro Max is resistant to water, moisture, oils and extreme temperatures, has anti-corrosion properties and retains the same properties in winter and summer. Please note that the material is mainly intended for installation centers and it is necessary to heat it to 50 degrees before application.

The unique technology of the Comfortmat Extreme Pro Max material

Comfortmat Extreme Pro Max is produced with the unique patented BitFoil II technology, which enables double lamination of bitumen and its connection with aluminum foil at an almost molecular level. It also has a double layer of special foil, the production process of which uses HotAL II double heat treatment technology. This guarantees increased rigidity of the film while maintaining excellent flexibility during work. The new inFliz technology for the simple application of the butyl mixture on aluminum foil allows for a complete absence of air between the layers, and thanks to a more even distribution over the entire surface, it significantly improves the properties of the materials. The new design with a grid on the foil helps in cutting the material, facilitates installation and also protects Comfortmat products from counterfeits.

The main features of the anti-vibration material Comfortmat Extreme Pro Max

• Professional anti-vibration material with a thickness of 8 mm from the top Expert range.
• High efficiency thanks to a special composition of two different sealants.
• The most efficient material on the market with a record acoustic loss factor of 0.85.
• Unique patented BitFoil II technology for maximum stiffness and efficiency of the material.
• 20% more stiffness and 15% more grip compared to the previous version.
• Ideal for maximum car noise reduction or for powerful SPL equipment.
• Resistance to water, moisture, oils and anti-corrosion properties.
• The same properties in winter and summer thanks to high resistance to extreme temperatures.
• The material must be heated to a temperature of +50°C before application.

Technical parameters of the Comfortmat Extreme Pro anti-vibration material

• Thickness: 8 mm
• Size: 470 x 350 mm
• Mass: ? G
• Acoustic Loss Factor (MLF): 0.85
• Adhesion: 10 to 12 N/cm
• Embossing: 6 x 6 mm
• Color: black with silver print
• Price for 1 piece

Where to apply the Comfortmat Extreme Pro Max material

The anti-vibration material Comfortmat Extreme Pro Max is mainly suitable for areas with extreme vibration loads. Typical are, for example, SPL audio installations and surfaces that you want to minimize noise and prevent all vibrations. The most common use of this material is mainly for strengthening sheet metal. If you are not sure what materials and in what quantity to use for vehicle soundproofing, use our soundproofing configurator . The most common uses of Comfortmat Extreme Pro cushioning material:

• Floor
• Central tunnel
• Engine bulkhead

About Comfortmat cushioning materials

The Comformat company has been operating on the market since 2010 and during that time has quickly established itself as a leading global manufacturer of anti-vibration and sound insulation materials. Comfortmat brought new technologies to the automotive industry enabling maximum efficiency, lower material weight, constant efficiency even in extreme temperatures and, last but not least, very easy application. In recent years, Comfortmat has been leading the way in the field of vehicle soundproofing and regularly brings to the market materials with record efficiency and excellent properties that have not been possible to achieve until now. All this is only possible through many years of research in the Comfortmat laboratories, the highest quality control at every stage of production, the modernization of production machines with the involvement of the world's leading experts in the automation of production lines and the creation of a research center equipped with the most modern equipment. Comfortmat's highly qualified experts have extensive scientific and manufacturing experience, regularly perform the necessary physical and mechanical tests, and have expertise in the vibroacoustic properties of cars. Thanks to this, Comfortmat products can meet the most demanding requirements of the current automotive market.​​​

Catalog number	COM EXTREME PRO MAX
Brand	Comfortmat
Links	Official web presentation
Material type	Antivibrační
Thickness	8 mm
Dimension	470 x 350 mm
Basis weight	10 kg / m2
Acoustic Loss Factor (MLF)The acoustic loss factor (in English, mechanical loss factor) expresses the ability of the material to absorb propagating sound and change the energy of vibrations created by the sound into thermal energy. The theoretical maximum loss factor is 1, which means no vibration. For example, non-sound-proof steel with a thickness of 1 mm has a loss factor of approx. 0.001 at 200 Hz. Therefore, the higher the loss factor, the better. By combining damping materials, it is possible to significantly increase the loss factor to values approaching 1.	0,85
Adhesion	10 až 12 N / cm
Aluminium foil	2x HotAl II 100 μm
Water resistance	Ano
Color	Černá se zeleným potiskem
Price for	1 kus
Layer order	1. vrstva
